- Vortex ring launcher, 10 m reach
- RGB 3-in-1 LED colorful rings
- Show-ready in ~1 min 50 s
- DMX512 + LCD control board

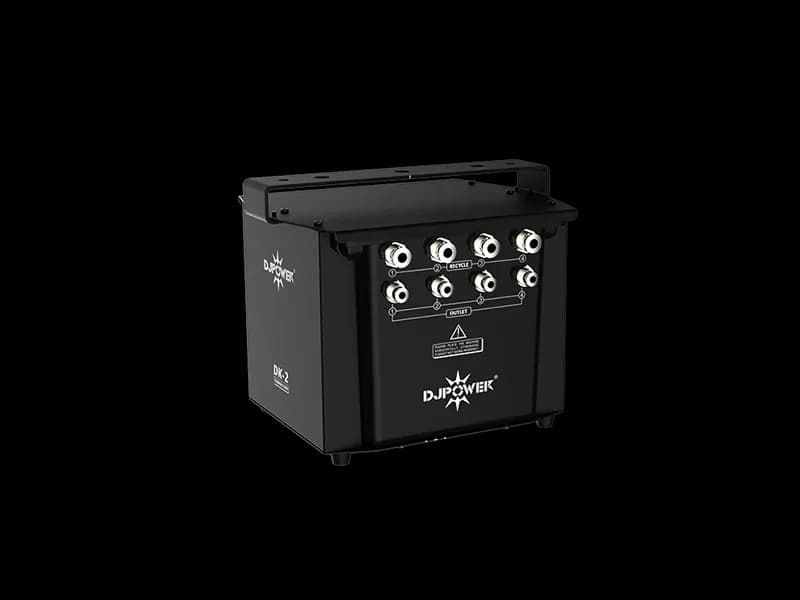

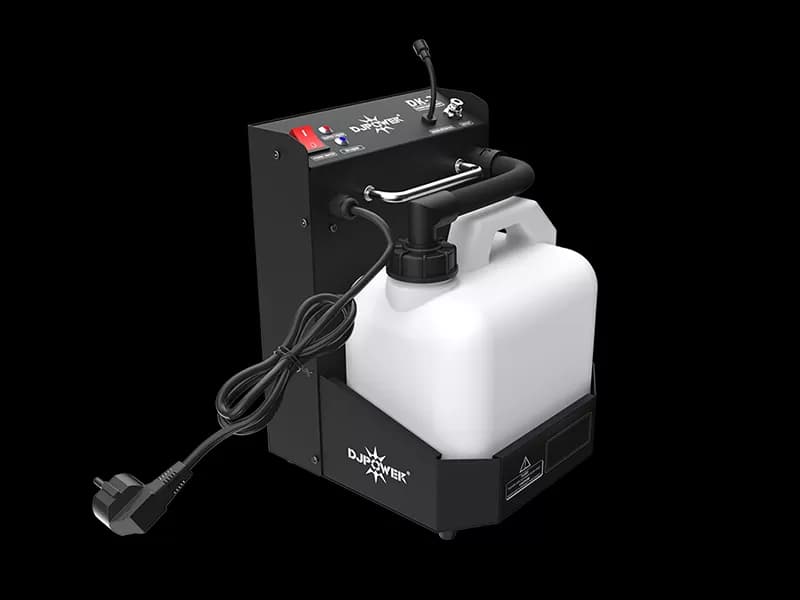

MODEL DK-2
5 W Liquid Supply System
A stage effect fluid for club, tour and event rigs.
- Input voltageAC 100–240 V, 50/60 Hz
- Total power consumption5 W
- Liquid SupplyApprox. 0.5 L/min
- Maximum Liquid Supply HeightApprox. 5 m
- Liquid Level Sensor Signal LineApprox. 10 m
- Terminal Liquid Tank Capacity5L
- Liquid Supply Host n.w.4 kg
- Liquid Supply Host Size235.5 × 234.2 × 326.1 mm
- Terminal Liquid Tank n.w.3 kg
- Terminal Liquid Tank Size271 × 247.4 × 222 mm
- Dk-2 Net Weight7 kg
- Dk-2 Gross Weight8.8 kg
- Dk-2 Package Size605 x330 x 415 mm
- ConsumablePRO-A/C/J/V/P/X
Sample orders from 1 pieceStandard models ship in 15–30 days48-hour aging test1-year warrantyCE & RoHSOEM / ODM welcome
We reply within one business day (GMT+8). WhatsApp is the fastest channel.
Full Specifications
DK-2 datasheet
| Model | DK-2 |
| Input voltage | AC 100–240 V, 50/60 Hz |
| Total power consumption | 5 W |
| Liquid Supply | Approx. 0.5 L/min |
| Maximum Liquid Supply Height | Approx. 5 m |
| Liquid Level Sensor Signal Line | Approx. 10 m |
| Terminal Liquid Tank Capacity | 5L |
| Liquid Supply Host n.w. | 4 kg |
| Liquid Supply Host Size | 235.5 × 234.2 × 326.1 mm |
| Terminal Liquid Tank n.w. | 3 kg |
| Terminal Liquid Tank Size | 271 × 247.4 × 222 mm |
| Dk-2 Package Size | 605 x330 x 415 mm |
| Consumable | PRO-A/C/J/V/P/X |
| Dk-2 Net Weight | 7 kg |
| Dk-2 Gross Weight | 8.8 kg |
Compare with
Side-by-side specifications
Pick up to 3 models to compare against DK-2. Full datasheets are one click away.
| Specification |  DK-2This model | H-K1Pro Auto Smoke Ring Machine |  H-1 PLUS2-in-1 Moving-Head Fog Jet |
|---|---|---|---|
| Type | — | Auto smoke ring machine | Moving head super-jet fog machine |
| Light source | — | RGB 3-in-1 LED ring | 24 × 5 W, RGBA |
| Control protocol | — | DMX512, 3 channels | DMX-512, 10 channels |
| Input voltage | AC 100–240 V, 50/60 Hz | AC 220–240 V, 50/60 Hz | 220–240 V, 50/60 Hz |
Features
What the DK-2 does on your stage
On-device control
With LCD control panel, easy operation.
Safety protection
With No-fluid protection function.
5L liquid tank, large
With 5L liquid tank, large storage capacity.
Transit liquid tank can
The transit liquid tank can be up to about 5m. The horizontal distance can reach about 10M.
Accessorize the rig
In the box & often bought together
After-sales & warranty
Backed before and after the show
1-year warranty
Fixtures carry a 1-year warranty; per-model terms are stated in your quotation and order confirmation.
Spare modules stocked
We stock spare modules for all current models — ship them with future orders or separately by express.
Remote technical support
DMX mapping advice, programming help and repair guidance by video call, on WhatsApp or email.
48-hour aging test
Every unit passes a 48-hour aging test and full-function inspection before packing.
Full purchasing, OEM and after-sales answers in the FAQ.
Good to know
DK-2 — quick answers
What voltage does the DK-2 require?
The 5 W Liquid Supply System accepts AC 100–240 V, 50/60 Hz. We build for export markets — tell us your target market in the inquiry and we confirm the matching power configuration before dispatch.
Can I order the DK-2 with my own logo (OEM/ODM)?
Yes — logo, startup screen, nameplate and packaging are the most common OEM requests. Send your artwork and we confirm the mock-up before production.
How fast can I get a sample of the DK-2?
Sample orders start from 1 piece. Standard models usually ship within 15–30 days depending on model and quantity, and every unit passes a 48-hour aging test before packing.
