MODEL H-K1
Pro Auto Smoke Ring Machine
An auto smoke ring machine that fires clear, colorful rings up to 10 m across the room.
- TypeAuto smoke ring machine
- EffectVortex smoke rings
- Max output distanceApprox. 10 m (no wind)
- Heat-up timeApprox. 1 min 50 s
- Total power consumption1,100 W
- Input voltageAC 220–240 V, 50/60 Hz
- Breaker8 A, 250 V
- Fluid tank capacity2 L
- Fluid consumptionApprox. 133 min/L
- ConsumablePRO-C fluid
- LED sourceRGB 3-in-1 LED ring
- Control protocolDMX512, 3 channels

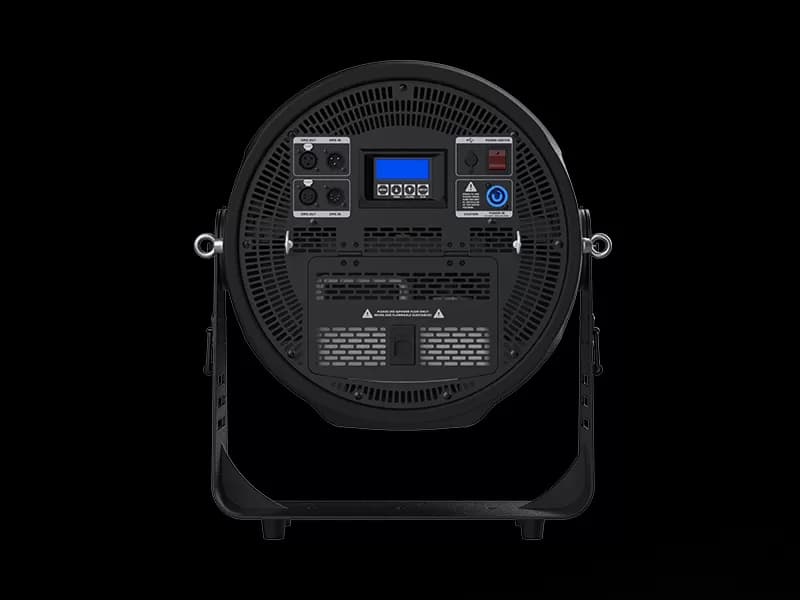

- On-device controlLCD control board
Sample orders from 1 pieceStandard models ship in 15–30 days48-hour aging test1-year warrantyCE & RoHSOEM / ODM welcome
We reply within one business day (GMT+8). WhatsApp is the fastest channel.
Full Specifications
H-K1 datasheet
| Model | H-K1 |
| Type | Auto smoke ring machine |
| Effect | Vortex smoke rings |
| Max output distance | Approx. 10 m (no wind) |
| Heat-up time | Approx. 1 min 50 s |
| Total power consumption | 1,100 W |
| Input voltage | AC 220–240 V, 50/60 Hz |
| Breaker | 8 A, 250 V |
| Fluid tank capacity | 2 L |
| Fluid consumption | Approx. 133 min/L |
| Consumable | PRO-C fluid |
| LED source | RGB 3-in-1 LED ring |
| Control protocol | DMX512, 3 channels |
| On-device control | LCD control board |
Compare with
Side-by-side specifications
Pick up to 3 models to compare against H-K1. Full datasheets are one click away.
| Specification |  H-K1This model | H-1 PLUS2-in-1 Moving-Head Fog Jet |  DHZ-670Oil-Based Haze Machine |
|---|---|---|---|
| Type | Auto smoke ring machine | Moving head super-jet fog machine | Oil-based haze machine |
| Light source | RGB 3-in-1 LED ring | 24 × 5 W, RGBA | — |
| Control protocol | DMX512, 3 channels | DMX-512, 10 channels | DMX-512, 2 channels |
| Input voltage | AC 220–240 V, 50/60 Hz | 220–240 V, 50/60 Hz | 220–240 V, 50/60 Hz |
Features
What the H-K1 does on your stage
Perfect smoke rings
A vortex launcher and strong fan throw clear, dense rings that fly up to 10 m and hang long in the air.
Colorful ring lighting
The built-in RGB 3-in-1 LED ring paints seven-color smoke rings for dreamy, high-impact looks.
Fast heat-up
The high-efficiency heater reaches show temperature in about 1 min 50 s.
Rugged one-piece shell
High-strength integrated composite housing keeps the machine light, durable and tour-ready.
Applications & Downloads
Where it works
Accessorize the rig
In the box & often bought together
After-sales & warranty
Backed before and after the show
1-year warranty
Fixtures carry a 1-year warranty; per-model terms are stated in your quotation and order confirmation.
Spare modules stocked
We stock spare modules for all current models — ship them with future orders or separately by express.
Remote technical support
DMX mapping advice, programming help and repair guidance by video call, on WhatsApp or email.
48-hour aging test
Every unit passes a 48-hour aging test and full-function inspection before packing.
Full purchasing, OEM and after-sales answers in the FAQ.
Good to know
H-K1 — quick answers
What voltage does the H-K1 require?
The Pro Auto Smoke Ring Machine accepts AC 220–240 V, 50/60 Hz. We build for export markets — tell us your target market in the inquiry and we confirm the matching power configuration before dispatch.
Can I order the H-K1 with my own logo (OEM/ODM)?
Yes — logo, startup screen, nameplate and packaging are the most common OEM requests. Send your artwork and we confirm the mock-up before production.
How fast can I get a sample of the H-K1?
Sample orders start from 1 piece. Standard models usually ship within 15–30 days depending on model and quantity, and every unit passes a 48-hour aging test before packing.
