MODEL R-2

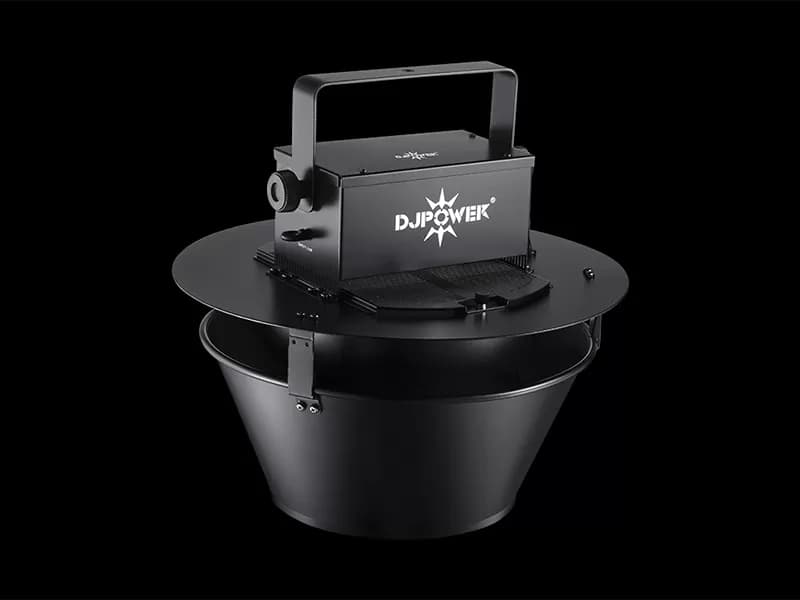

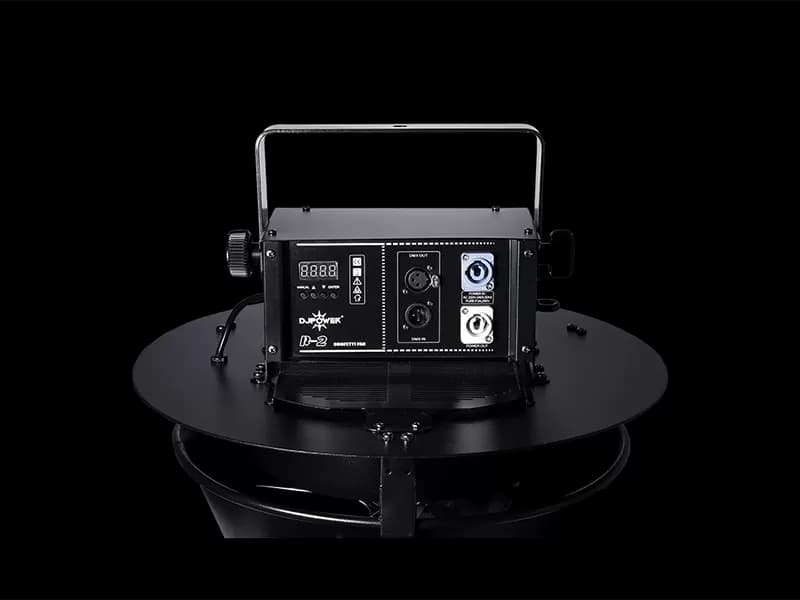

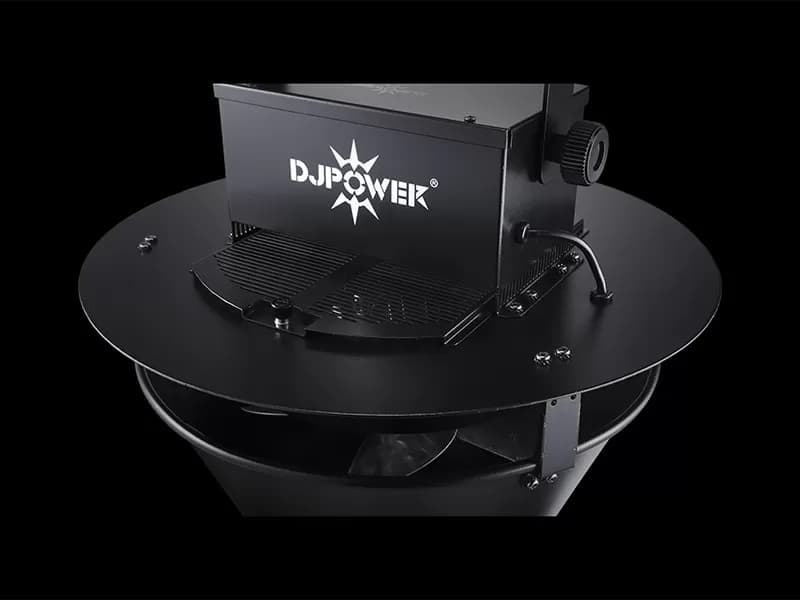

Swirl Confetti Fan
A Swirl Confetti Fan with 110 W power, DMX512 1-channel control, 9.9 kg net weight.
- Input voltage220–240 V, 50/60 Hz
- Breaker typeFuse (F)
- Breaker2 A, 250 V
- Total power consumption110 W
- Operating Current0.5
- Power Input ConnectorLockable PowerCon
- Power Output ConnectorLockable PowerCon
- Confetti Capacity0.15 kg / 0.33 lb.
- Max CoverageApprox. 80 ㎡ (hang 10m high)
- Maximum Continuous Duration @ full volumeApprox. 5 sec
- On-device control7-seg digital display
- Wireless controlNo
- Control protocolDMX-512
- DMX channels1
- Data Connectors3-pin XLR
- Power CordNo
- Wireless Controller ModelNo
- ConsumableConfetti
- Net weight9.9 kg
- Gross weight11.9 kg
- Machine dimensions445 × 445 × 367.7 mm
- Packing dimensions525 × 525 × 420 mm
Sample orders from 1 pieceStandard models ship in 15–30 days48-hour aging test1-year warrantyCE & RoHSOEM / ODM welcome
We reply within one business day (GMT+8). WhatsApp is the fastest channel.
Full Specifications
R-2 datasheet
| Model | R-2 |
| Input voltage | 220–240 V, 50/60 Hz |
| Breaker type | Fuse (F) |
| Breaker | 2 A, 250 V |
| Total power consumption | 110 W |
| Confetti Capacity | 0.15 kg / 0.33 lb. |
| Max Coverage | Approx. 80 ㎡ (hang 10m high) |
| Maximum Continuous Duration @ full volume | Approx. 5 sec |
| Power Cord | No |
| Consumable | Confetti |
| Machine dimensions | 445 × 445 × 367.7 mm |
| Power Input Connector | Lockable PowerCon |
| Power Output Connector | Lockable PowerCon |
| On-device control | 7-seg digital display |
| Wireless control | No |
| Control protocol | DMX-512 |
| DMX channels | 1 |
| Data Connectors | 3-pin XLR |
| Wireless Controller Model | No |
| Operating Current | 0.5 |
| Net weight | 9.9 kg |
| Gross weight | 11.9 kg |
| Packing dimensions | 525 × 525 × 420 mm |
Compare with
Side-by-side specifications
Pick up to 3 models to compare against R-2. Full datasheets are one click away.
| Specification |  R-2This model |  H-K1Pro Auto Smoke Ring Machine |  H-1 PLUS2-in-1 Moving-Head Fog Jet |
|---|---|---|---|
| Type | — | Auto smoke ring machine | Moving head super-jet fog machine |
| Light source | — | RGB 3-in-1 LED ring | 24 × 5 W, RGBA |
| Control protocol | DMX-512 | DMX512, 3 channels | DMX-512, 10 channels |
| Input voltage | 220–240 V, 50/60 Hz | AC 220–240 V, 50/60 Hz | 220–240 V, 50/60 Hz |
See it in action
Product demo
Features
What the R-2 does on your stage
Compact size
Compact size.
Fan system
Reverse design for fan to achieve low noise.
Even confetti widely scattering
Even confetti widely scattering. Confetti could cover 80 square meters when hang at 10m high.
Able to be daisy
Able to be daisy chained.
Applications & Downloads
Where it works
Accessorize the rig
In the box & often bought together
After-sales & warranty
Backed before and after the show
1-year warranty
Fixtures carry a 1-year warranty; per-model terms are stated in your quotation and order confirmation.
Spare modules stocked
We stock spare modules for all current models — ship them with future orders or separately by express.
Remote technical support
DMX mapping advice, programming help and repair guidance by video call, on WhatsApp or email.
48-hour aging test
Every unit passes a 48-hour aging test and full-function inspection before packing.
Full purchasing, OEM and after-sales answers in the FAQ.
Good to know
R-2 — quick answers
What voltage does the R-2 require?
The Swirl Confetti Fan accepts 220–240 V, 50/60 Hz. We build for export markets — tell us your target market in the inquiry and we confirm the matching power configuration before dispatch.
Can I order the R-2 with my own logo (OEM/ODM)?
Yes — logo, startup screen, nameplate and packaging are the most common OEM requests. Send your artwork and we confirm the mock-up before production.
How fast can I get a sample of the R-2?
Sample orders start from 1 piece. Standard models usually ship within 15–30 days depending on model and quantity, and every unit passes a 48-hour aging test before packing.
