MODEL H-SF900
Pro Water Mist Flamer
A Pro Water Mist Flamer with 800 W power, DMX512 5-channel control, IP55 rated housing.
- Input voltageAC 100V-240 V, 50/60 Hz
- Total power consumption800 W
- LEDRGBAW+UV
- Total LED quantity48pcs
- Max continuous outputApprox. 210 min
- Adjustable Flame ConcentrationHigh/ Low
- Adjustable Flame Volume1-100
- Adjustable Flame LuminanceOFF, 1-100
- Adjustable Height1-11
- Adjustable Flame ColorYes
- IP ratingIP55
- Dmx-512✔
- Rdm✔
- DMX channels5
- Main Water Tank CapacityApprox. 14 L
- Adjustable WaterApprox. 3.5L
- ConsumableWater
- Net weight35 kg
- Gross weight37.9 kg
- Machine dimensions740× 430 × 575 mm (State of work)
- Packing dimensions810× 500 × 530 mm
Sample orders from 1 pieceStandard models ship in 15–30 days48-hour aging test1-year warrantyCE & RoHSOEM / ODM welcome
We reply within one business day (GMT+8). WhatsApp is the fastest channel.
Full Specifications
H-SF900 datasheet
| Model | H-SF900 |
| Input voltage | AC 100V-240 V, 50/60 Hz |
| Total power consumption | 800 W |
| LED | RGBAW+UV |
| Total LED quantity | 48pcs |
| Max continuous output | Approx. 210 min |
| Adjustable Flame Concentration | High/ Low |
| Adjustable Flame Volume | 1-100 |
| Adjustable Flame Luminance | OFF, 1-100 |
| Adjustable Height | 1-11 |
| Rdm | ✔ |
| Main Water Tank Capacity | Approx. 14 L |
| Adjustable Water | Approx. 3.5L |
| Consumable | Water |
| Machine dimensions | 740× 430 × 575 mm (State of work) |
| Adjustable Flame Color | Yes |
| Dmx-512 | ✔ |
| DMX channels | 5 |
| IP rating | IP55 |
| Net weight | 35 kg |
| Gross weight | 37.9 kg |
| Packing dimensions | 810× 500 × 530 mm |
Compare with
Side-by-side specifications
Pick up to 3 models to compare against H-SF900. Full datasheets are one click away.
| Specification |  H-SF900This model | H-K1Pro Auto Smoke Ring Machine |  H-1 PLUS2-in-1 Moving-Head Fog Jet |
|---|---|---|---|
| Type | — | Auto smoke ring machine | Moving head super-jet fog machine |
| Light source | — | RGB 3-in-1 LED ring | 24 × 5 W, RGBA |
| Control protocol | — | DMX512, 3 channels | DMX-512, 10 channels |
| Input voltage | AC 100V-240 V, 50/60 Hz | AC 220–240 V, 50/60 Hz | 220–240 V, 50/60 Hz |
Features
What the H-SF900 does on your stage
Weather protection
The rainproof structure design of the whole machine, IP55 waterproof grade.

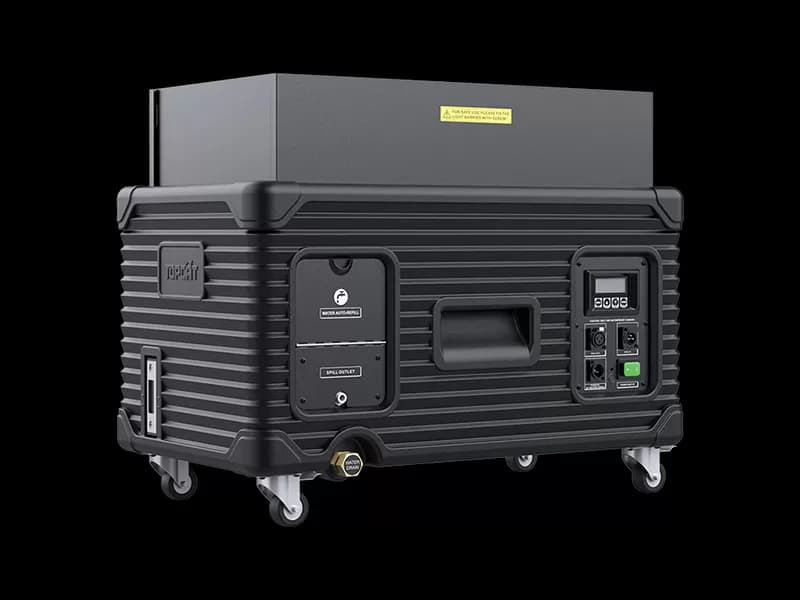

Rugged housing
The housing is made of high-strength integrated composite materials, which is rust-free and durable.

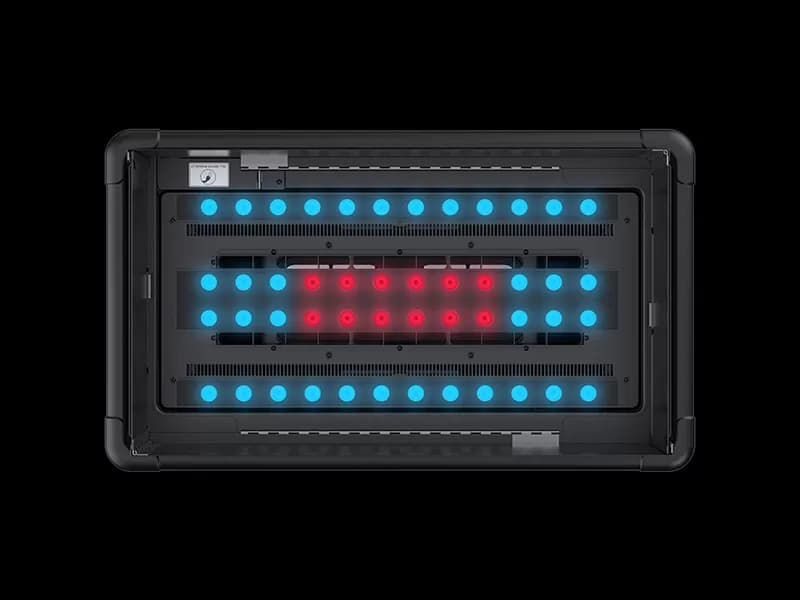

LED lighting
With 48pcs RGBAW+UV LED lights, brighter colors.
Flame effect of color
The flame effect of color, luminance, height and size is adjustable.
Applications & Downloads
Where it works
Accessorize the rig
In the box & often bought together
After-sales & warranty
Backed before and after the show
1-year warranty
Fixtures carry a 1-year warranty; per-model terms are stated in your quotation and order confirmation.
Spare modules stocked
We stock spare modules for all current models — ship them with future orders or separately by express.
Remote technical support
DMX mapping advice, programming help and repair guidance by video call, on WhatsApp or email.
48-hour aging test
Every unit passes a 48-hour aging test and full-function inspection before packing.
Full purchasing, OEM and after-sales answers in the FAQ.
Good to know
H-SF900 — quick answers
What voltage does the H-SF900 require?
The Pro Water Mist Flamer accepts AC 100V-240 V, 50/60 Hz. We build for export markets — tell us your target market in the inquiry and we confirm the matching power configuration before dispatch.
Can I order the H-SF900 with my own logo (OEM/ODM)?
Yes — logo, startup screen, nameplate and packaging are the most common OEM requests. Send your artwork and we confirm the mock-up before production.
How fast can I get a sample of the H-SF900?
Sample orders start from 1 piece. Standard models usually ship within 15–30 days depending on model and quantity, and every unit passes a 48-hour aging test before packing.
Keep Browsing
Fixtures that pair with the H-SF900
- Fog jet + moving beam 2-in-1
- 24 × 5 W RGBA moving LED ring
- 29,000 ft³/min output, 6–8 m
- DMX-512, 10 channels
- Fine, even oil-based haze
- No heat-up — instant start
- Unlimited continuous output
- DMX-512, 2 channels
Outdoor
- Safe water-based flame effect
- 192 W LED fire glow, IP55
- DMX height / volume / luminance
- 14 L tank, up to 210 min
Ready to spec H-SF900 into your project?
Volume pricing, OEM options and lead times — one message away.
