MODEL DC-3 (DISCONTINUED)
24 W Confetti Shot
A 24 W Confetti Shot with 15 m output height, 49 kg net weight.
- Input voltageAC 100 V-240 V 50/60 HZ or DC 12V 5 A above battery
- Total power consumption24 W
- Power Input ConnectorLockable PowerCon
- Power Output ConnectorLockable PowerCon
- Capacity20 L.
- Max output heightApprox. 15 m
- On-device control7-seg digital display
- Wireless controlNo
- Control protocolDMX-512
- DMX channels2
- Data Connectors3- and 5-pin XLR
- Flight CaseYes
- Power CordYes
- Wireless Controller ModelNo
- ConsumableConfetti Paper(except Electri confetti), Streamer
- Net weight49 kg
- Gross weight53 kg
- Machine dimensions660 × 570 × 595 mm
- Packing dimensions740 × 650 × 650 mm
Sample orders from 1 pieceStandard models ship in 15–30 days48-hour aging test1-year warrantyCE & RoHSOEM / ODM welcome
We reply within one business day (GMT+8). WhatsApp is the fastest channel.
Full Specifications
DC-3 (DISCONTINUED) datasheet
| Model | DC-3 (DISCONTINUED) |
| Input voltage | AC 100 V-240 V 50/60 HZ or DC 12V 5 A above battery |
| Total power consumption | 24 W |
| Capacity | 20 L. |
| Max output height | Approx. 15 m |
| Flight Case | Yes |
| Power Cord | Yes |
| Consumable | Confetti Paper(except Electri confetti), Streamer |
| Machine dimensions | 660 × 570 × 595 mm |
| Power Input Connector | Lockable PowerCon |
| Power Output Connector | Lockable PowerCon |
| On-device control | 7-seg digital display |
| Wireless control | No |
| Control protocol | DMX-512 |
| DMX channels | 2 |
| Data Connectors | 3- and 5-pin XLR |
| Wireless Controller Model | No |
| Net weight | 49 kg |
| Gross weight | 53 kg |
| Packing dimensions | 740 × 650 × 650 mm |
Compare with
Side-by-side specifications
Pick up to 3 models to compare against DC-3 (DISCONTINUED). Full datasheets are one click away.
| Specification |  DC-3 (DISCONTINUED)This model |  H-K1Pro Auto Smoke Ring Machine |  H-1 PLUS2-in-1 Moving-Head Fog Jet |
|---|---|---|---|
| Type | — | Auto smoke ring machine | Moving head super-jet fog machine |
| Light source | — | RGB 3-in-1 LED ring | 24 × 5 W, RGBA |
| Control protocol | DMX-512 | DMX512, 3 channels | DMX-512, 10 channels |
| Input voltage | AC 100 V-240 V 50/60 HZ or DC 12V 5 A above battery | AC 220–240 V, 50/60 Hz | 220–240 V, 50/60 Hz |
See it in action
Product demo
Features
What the DC-3 (DISCONTINUED) does on your stage
LED lighting

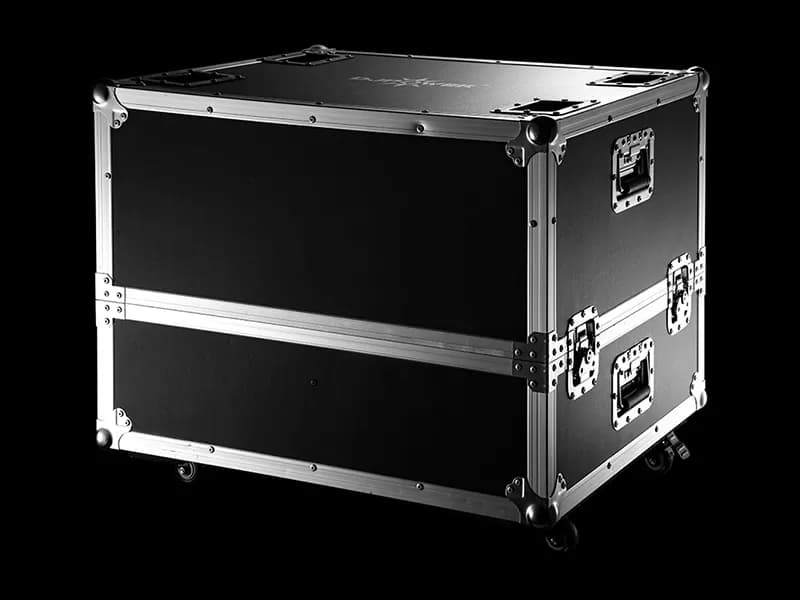

Integrated flight case, easy to transport.
Output performance

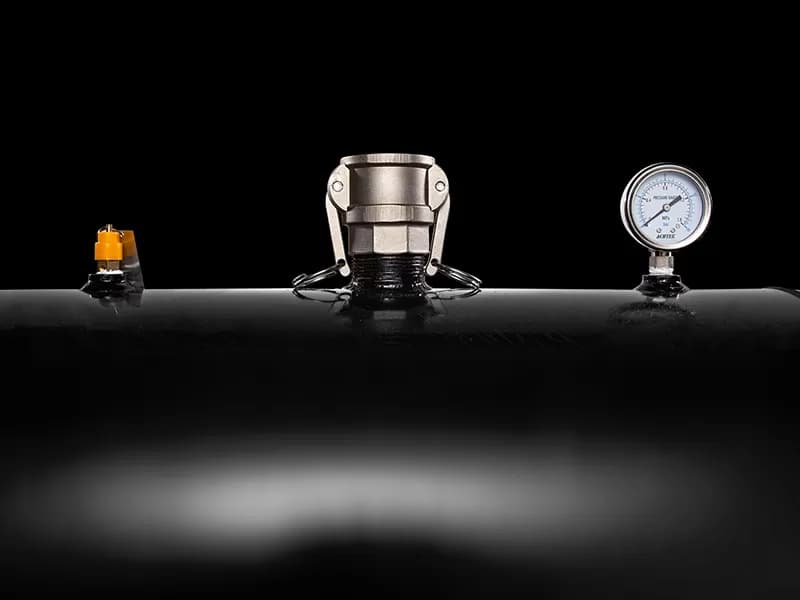

Aluminum alloy quick connect nozzle, adjustable output angle.
Instantly launches confetti into the air
Instantly launches confetti into the air up to a height of 15 meters.
Actual effect may be affected
The actual effect may be affected by the use environment.
Applications & Downloads
Where it works
Accessorize the rig
In the box & often bought together
After-sales & warranty
Backed before and after the show
1-year warranty
Fixtures carry a 1-year warranty; per-model terms are stated in your quotation and order confirmation.
Spare modules stocked
We stock spare modules for all current models — ship them with future orders or separately by express.
Remote technical support
DMX mapping advice, programming help and repair guidance by video call, on WhatsApp or email.
48-hour aging test
Every unit passes a 48-hour aging test and full-function inspection before packing.
Full purchasing, OEM and after-sales answers in the FAQ.
Good to know
DC-3 (DISCONTINUED) — quick answers
What voltage does the DC-3 (DISCONTINUED) require?
The 24 W Confetti Shot accepts AC 100 V-240 V 50/60 HZ or DC 12V 5 A above battery. We build for export markets — tell us your target market in the inquiry and we confirm the matching power configuration before dispatch.
Can I order the DC-3 (DISCONTINUED) with my own logo (OEM/ODM)?
Yes — logo, startup screen, nameplate and packaging are the most common OEM requests. Send your artwork and we confirm the mock-up before production.
How fast can I get a sample of the DC-3 (DISCONTINUED)?
Sample orders start from 1 piece. Standard models usually ship within 15–30 days depending on model and quantity, and every unit passes a 48-hour aging test before packing.
