MODEL X-SW2200
Aqua Low Fog Machine
An Aqua Low Fog Machine with 2,000 W power, 15,000 cuft/min output, DMX512 3-channel control.
- Input voltage220–240 V, 50/60 Hz
- Breaker typeBreaker
- Breaker10 A, 250 V
- Total power consumption2,000 W
- Operating Current10
- Power Input ConnectorLockable PowerCon IP65
- Power Output ConnectorLockable PowerCon IP65
- Heat-up timeApprox. 4~5 min
- Heater TypeAluminum Heater Block
- Fluid tank capacity3 L
- Water Chamber Capacity22 L
- Adjustable outputYes
- Volume Adjustment Level/Range1–100%
- Max output volumeApprox. 15,000 cuft/min
- Max CoverageApprox. 300 ㎡
- Fluid Consumption @ full volumeApprox. 29 min/L
- Water Consumption @ full volumeApprox. 8.9 min/L
- Continuous OutputYes
- Max continuous output level1
- Fully-loaded Cumulative Output Duration @ full volumeApprox. 100 min
- IP ratingIP53
- On-device controlLCD control board
- Wireless controlYes
- Control protocolDMX-512
- DMX channels3
- Data Connectors3-pin and 5-pin XLR

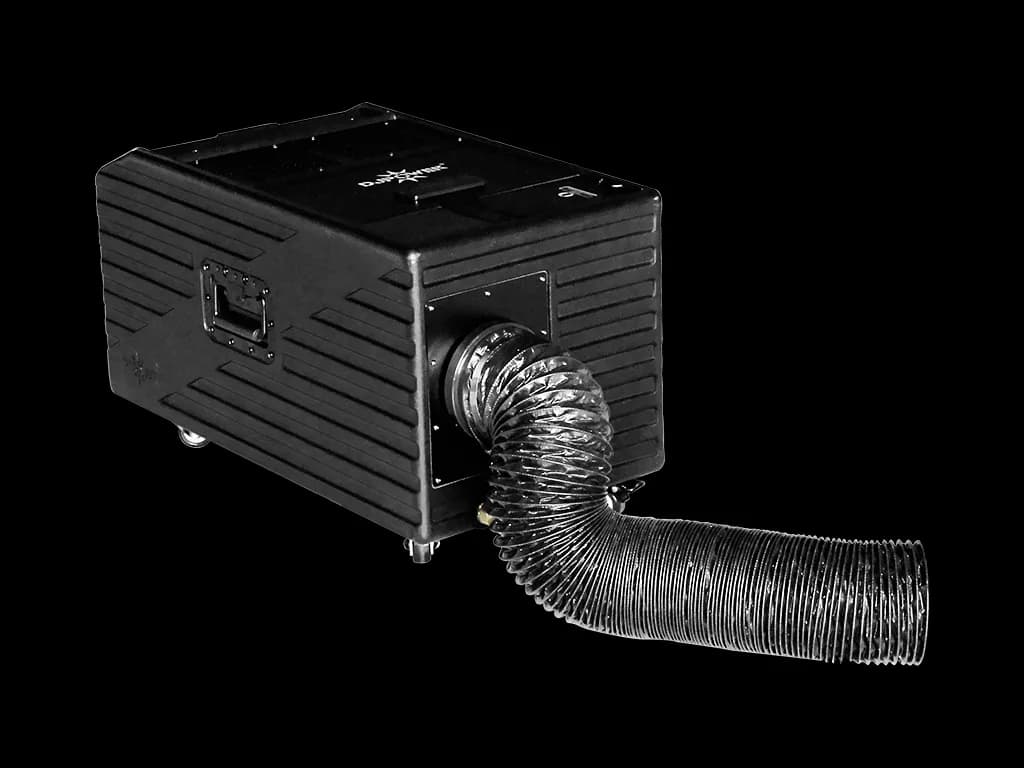

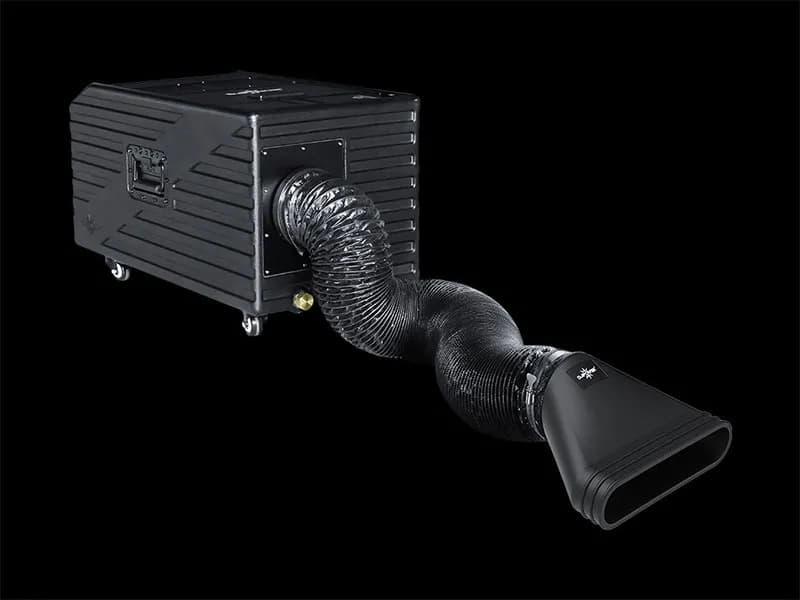

- Diversion Hose3 m, 125mm (5 inch)
- Diversion Nozzle125mm (5 inch)
- Power CordYes
- Wireless Controller ModelW-2
- ConsumablePRO-SW/PRO-A/PRO-C/PRO-V and Water
- Net weight31 kg
- Gross weight39 kg
- Machine dimensions759 × 390 × 444 mm
- Packing dimensions918 × 468 × 524 mm
Sample orders from 1 pieceStandard models ship in 15–30 days48-hour aging test1-year warrantyCE & RoHSOEM / ODM welcome
We reply within one business day (GMT+8). WhatsApp is the fastest channel.
Full Specifications
X-SW2200 datasheet
| Model | X-SW2200 |
| Input voltage | 220–240 V, 50/60 Hz |
| Breaker type | Breaker |
| Breaker | 10 A, 250 V |
| Total power consumption | 2,000 W |
| Heat-up time | Approx. 4~5 min |
| Heater Type | Aluminum Heater Block |
| Fluid tank capacity | 3 L |
| Water Chamber Capacity | 22 L |
| Adjustable output | Yes |
| Volume Adjustment Level/Range | 1–100% |
| Max output volume | Approx. 15,000 cuft/min |
| Max Coverage | Approx. 300 ㎡ |
| Fluid Consumption @ full volume | Approx. 29 min/L |
| Water Consumption @ full volume | Approx. 8.9 min/L |
| Continuous Output | Yes |
| Max continuous output level | 1 |
| Fully-loaded Cumulative Output Duration @ full volume | Approx. 100 min |
| Diversion Hose | 3 m, 125mm (5 inch) |
| Diversion Nozzle | 125mm (5 inch) |
| Power Cord | Yes |
| Consumable | PRO-SW/PRO-A/PRO-C/PRO-V and Water |
| Machine dimensions | 759 × 390 × 444 mm |
| Power Input Connector | Lockable PowerCon IP65 |
| Power Output Connector | Lockable PowerCon IP65 |
| On-device control | LCD control board |
| Wireless control | Yes |
| Control protocol | DMX-512 |
| DMX channels | 3 |
| Data Connectors | 3-pin and 5-pin XLR |
| Wireless Controller Model | W-2 |
| Operating Current | 10 |
| IP rating | IP53 |
| Net weight | 31 kg |
| Gross weight | 39 kg |
| Packing dimensions | 918 × 468 × 524 mm |
Compare with
Side-by-side specifications
Pick up to 3 models to compare against X-SW2200. Full datasheets are one click away.
| Specification |  X-SW2200This model |  H-K1Pro Auto Smoke Ring Machine |  H-1 PLUS2-in-1 Moving-Head Fog Jet |
|---|---|---|---|
| Type | — | Auto smoke ring machine | Moving head super-jet fog machine |
| Light source | — | RGB 3-in-1 LED ring | 24 × 5 W, RGBA |
| Control protocol | DMX-512 | DMX512, 3 channels | DMX-512, 10 channels |
| Input voltage | 220–240 V, 50/60 Hz | AC 220–240 V, 50/60 Hz | 220–240 V, 50/60 Hz |
See it in action
Product demo
Features
What the X-SW2200 does on your stage
Rain‑proof and dust‑proof structural
Rain‑proof and dust‑proof structural design, with IP53 rating, suitable for outdoor use.

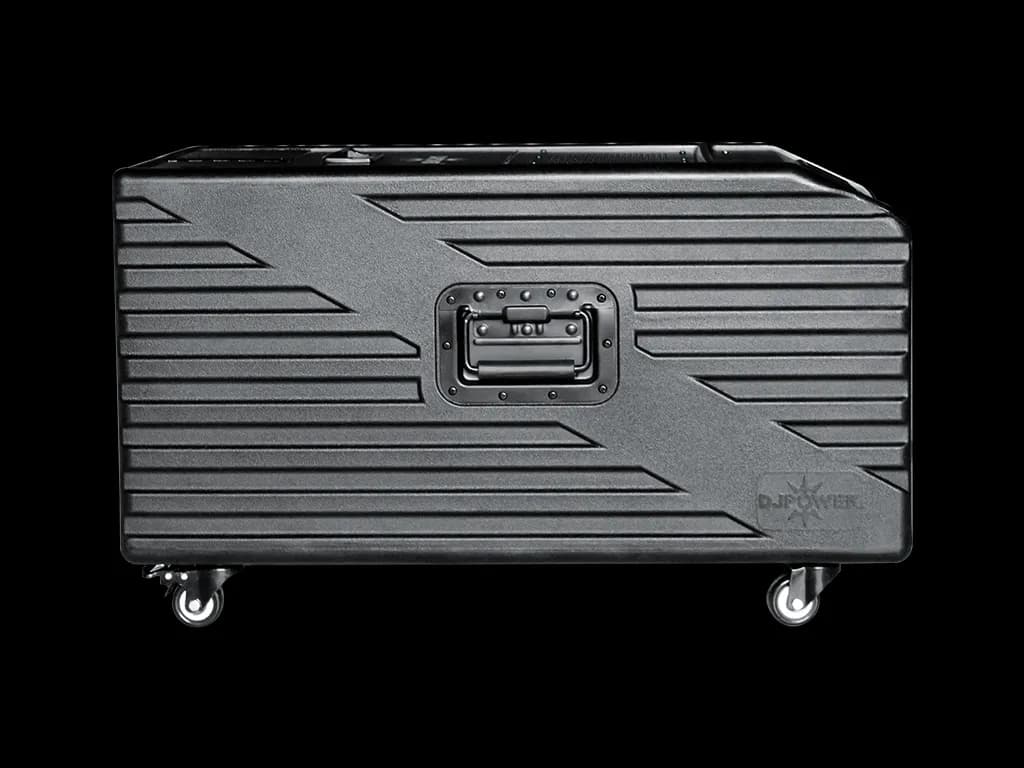

Integrated in a plastic
Integrated in a plastic case (with castors), applicable for touring.
Automatically replenish water in the atomization
Automatically replenish water in the atomization chamber,continuous use.
Drain holes design for water
Drain holes design for water tank, free from leakage.
Applications & Downloads
Where it works
Accessorize the rig
In the box & often bought together
After-sales & warranty
Backed before and after the show
1-year warranty
Fixtures carry a 1-year warranty; per-model terms are stated in your quotation and order confirmation.
Spare modules stocked
We stock spare modules for all current models — ship them with future orders or separately by express.
Remote technical support
DMX mapping advice, programming help and repair guidance by video call, on WhatsApp or email.
48-hour aging test
Every unit passes a 48-hour aging test and full-function inspection before packing.
Full purchasing, OEM and after-sales answers in the FAQ.
Good to know
X-SW2200 — quick answers
What voltage does the X-SW2200 require?
The Aqua Low Fog Machine accepts 220–240 V, 50/60 Hz. We build for export markets — tell us your target market in the inquiry and we confirm the matching power configuration before dispatch.
Can I order the X-SW2200 with my own logo (OEM/ODM)?
Yes — logo, startup screen, nameplate and packaging are the most common OEM requests. Send your artwork and we confirm the mock-up before production.
How fast can I get a sample of the X-SW2200?
Sample orders start from 1 piece. Standard models usually ship within 15–30 days depending on model and quantity, and every unit passes a 48-hour aging test before packing.
