MODEL X-SW1800

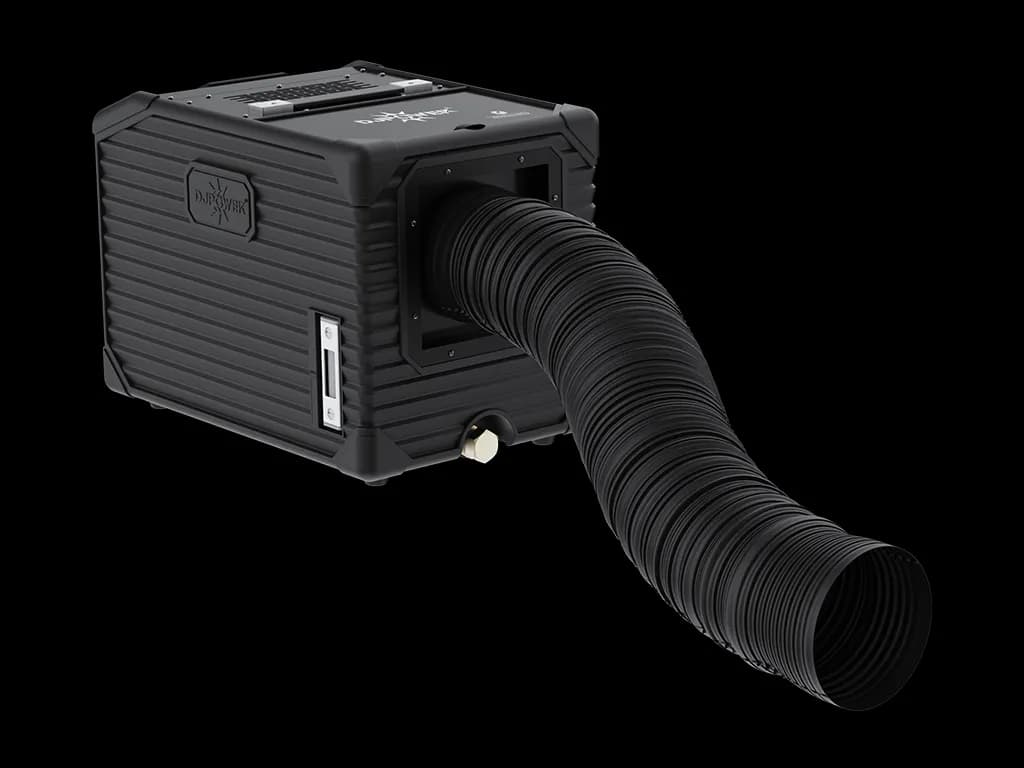

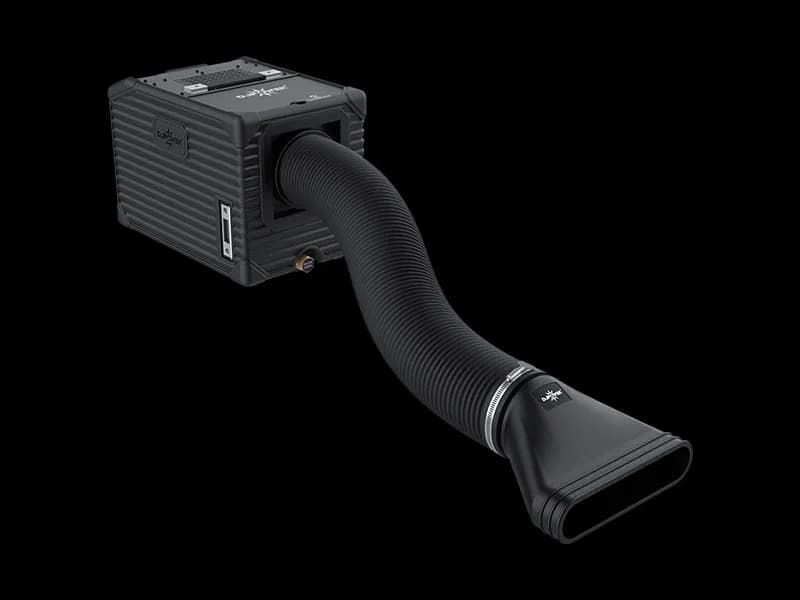

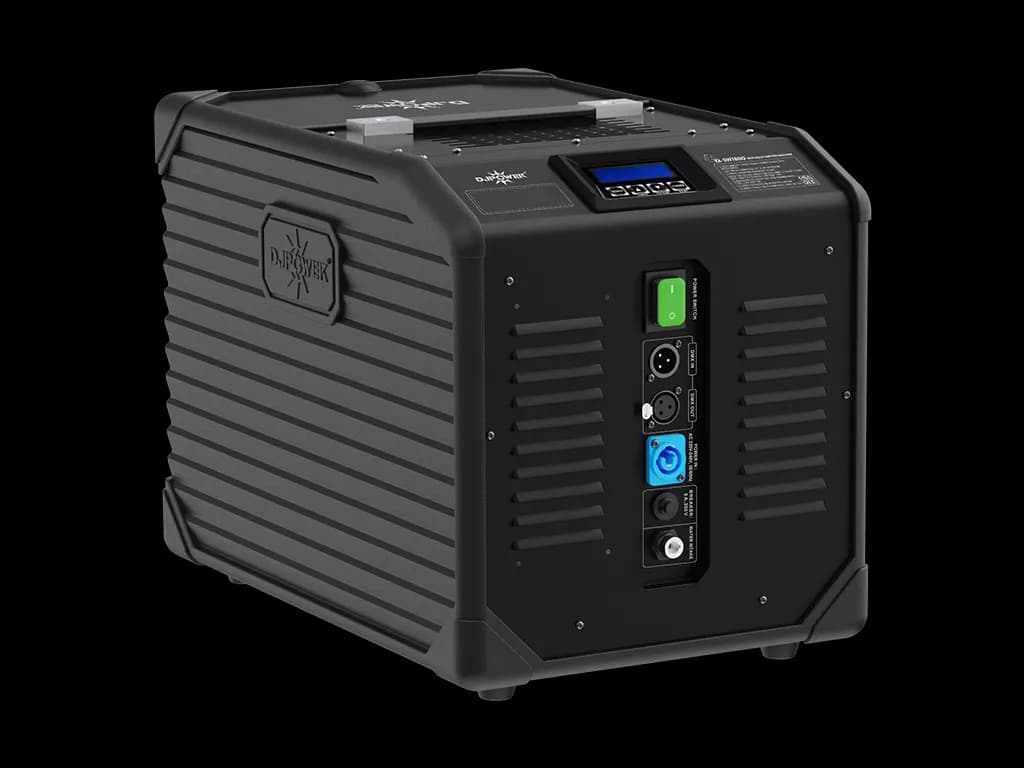

Mini Aqua Low Fog Machine
A Mini Aqua Low Fog Machine with 1,600 W power, 12,000 cuft/min output, DMX512 3-channel control.
- Input voltageAC 220–240 V, 50/60 Hz
- Breaker8 A, 250 V
- Total power consumption1,600 W
- Heat-up timeApprox. 2 min
- Max output volumeApprox. 12,000 cuft/min
- Fluid Consumption @ full volumeApprox. 41 min/L
- Max CoverageApprox. 200 ㎡
- Wireless controlW-4
- Dmx-512✔
- DMX channels3
- Fluid tank capacity2 L
- Water Chamber Capacity7.3 L
- Net weight17.4 kg
- Gross weight19.1kg
- Machine dimensions464 × 304 × 347 mm
- Packing dimensions706.5 × 380 × 402 mm
- ConsumablePRO-SW/PRO-A/PRO-C/PRO-V & Water.
Sample orders from 1 pieceStandard models ship in 15–30 days48-hour aging test1-year warrantyCE & RoHSOEM / ODM welcome
We reply within one business day (GMT+8). WhatsApp is the fastest channel.
Full Specifications
X-SW1800 datasheet
| Model | X-SW1800 |
| Input voltage | AC 220–240 V, 50/60 Hz |
| Breaker | 8 A, 250 V |
| Total power consumption | 1,600 W |
| Heat-up time | Approx. 2 min |
| Max output volume | Approx. 12,000 cuft/min |
| Fluid Consumption @ full volume | Approx. 41 min/L |
| Max Coverage | Approx. 200 ㎡ |
| Fluid tank capacity | 2 L |
| Water Chamber Capacity | 7.3 L |
| Machine dimensions | 464 × 304 × 347 mm |
| Consumable | PRO-SW/PRO-A/PRO-C/PRO-V & Water. |
| Wireless control | W-4 |
| Dmx-512 | ✔ |
| DMX channels | 3 |
| Net weight | 17.4 kg |
| Gross weight | 19.1kg |
| Packing dimensions | 706.5 × 380 × 402 mm |
Compare with
Side-by-side specifications
Pick up to 3 models to compare against X-SW1800. Full datasheets are one click away.
| Specification |  X-SW1800This model |  H-K1Pro Auto Smoke Ring Machine |  H-1 PLUS2-in-1 Moving-Head Fog Jet |
|---|---|---|---|
| Type | — | Auto smoke ring machine | Moving head super-jet fog machine |
| Light source | — | RGB 3-in-1 LED ring | 24 × 5 W, RGBA |
| Control protocol | — | DMX512, 3 channels | DMX-512, 10 channels |
| Input voltage | AC 220–240 V, 50/60 Hz | AC 220–240 V, 50/60 Hz | 220–240 V, 50/60 Hz |
See it in action
Product demo
Features
What the X-SW1800 does on your stage
LED lighting
Compact size, Integration in a stackable flight case makes the machine tough, durable.
Output performance
Output volume and time are adjustable, suit for different environment.
Fluid system
Low fluid consumption, 2L fluid reservoir -1 hours on full output.
Drain holes design for water
Drain holes design for water tank, free from leakage.
Applications & Downloads
Where it works
Accessorize the rig
In the box & often bought together
After-sales & warranty
Backed before and after the show
1-year warranty
Fixtures carry a 1-year warranty; per-model terms are stated in your quotation and order confirmation.
Spare modules stocked
We stock spare modules for all current models — ship them with future orders or separately by express.
Remote technical support
DMX mapping advice, programming help and repair guidance by video call, on WhatsApp or email.
48-hour aging test
Every unit passes a 48-hour aging test and full-function inspection before packing.
Full purchasing, OEM and after-sales answers in the FAQ.
Good to know
X-SW1800 — quick answers
What voltage does the X-SW1800 require?
The Mini Aqua Low Fog Machine accepts AC 220–240 V, 50/60 Hz. We build for export markets — tell us your target market in the inquiry and we confirm the matching power configuration before dispatch.
Can I order the X-SW1800 with my own logo (OEM/ODM)?
Yes — logo, startup screen, nameplate and packaging are the most common OEM requests. Send your artwork and we confirm the mock-up before production.
How fast can I get a sample of the X-SW1800?
Sample orders start from 1 piece. Standard models usually ship within 15–30 days depending on model and quantity, and every unit passes a 48-hour aging test before packing.
