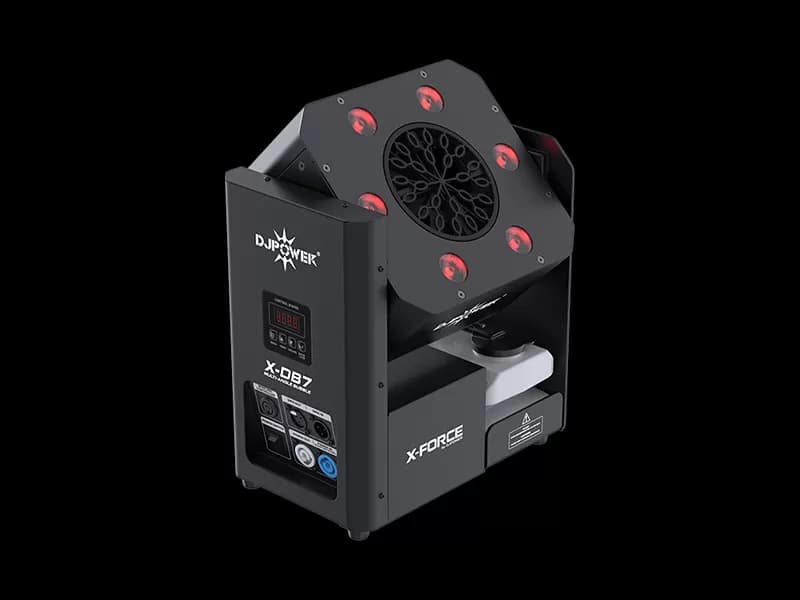

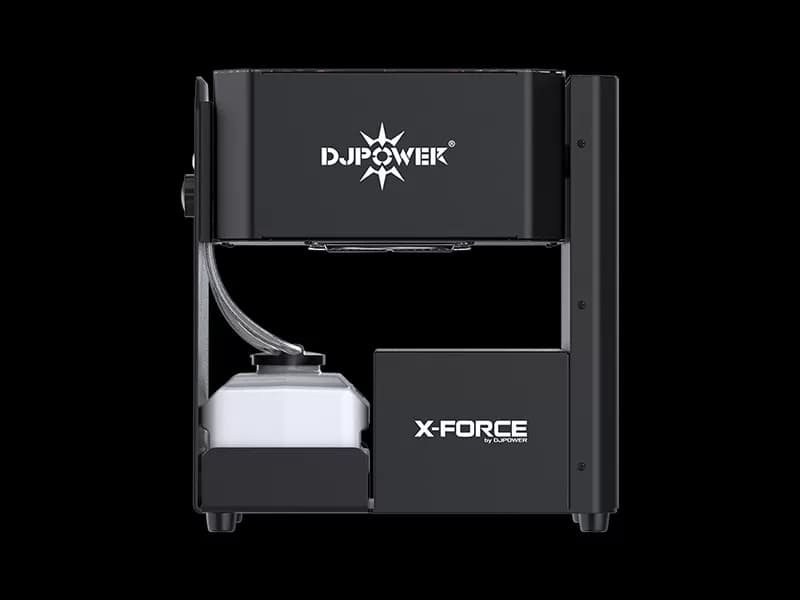

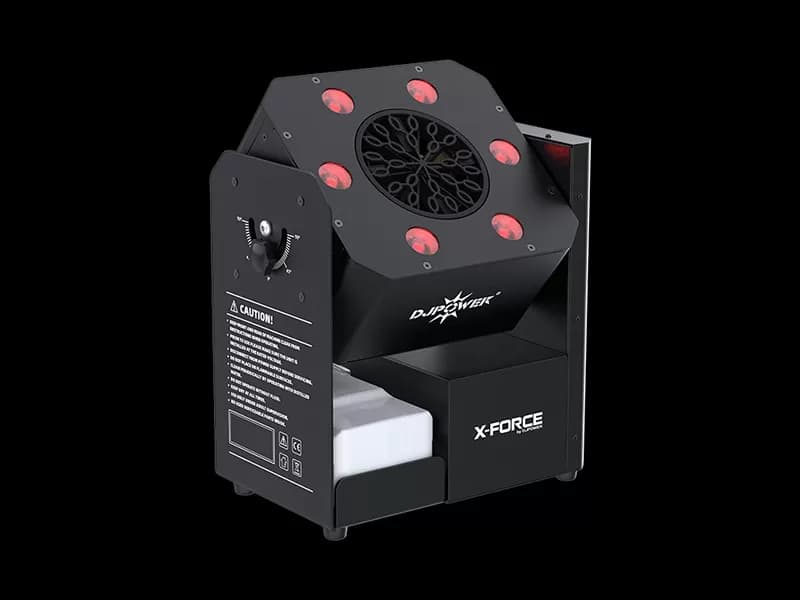

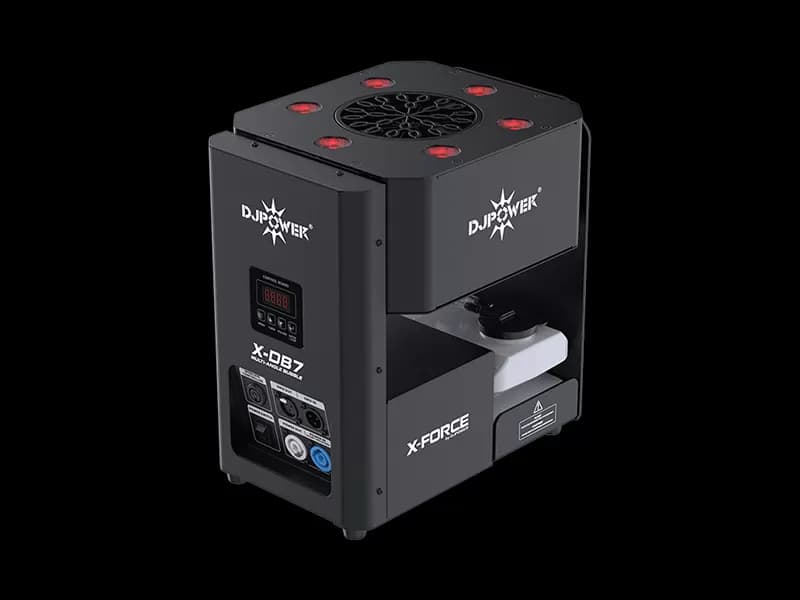

MODEL X-DB7
Multi-angle Bubble
A Multi-angle Bubble with 60 W power, DMX512 7-channel control, 1.3 L tank.
- Input voltageAC 220–240 V, 50/60 Hz
- Total power consumption60 W
- Total power of LED8W × 6pcs
- LED colourRGBA
- Spray angle180°
- Max spray heightApprox. 10 m
- Bubble Fluid Consumption RateApprox. 45.4 min/L
- Wireless controlW-2
- Control protocolDMX-512
- DMX channels7
- Fluid tank capacity1.3 L
- Net weight4 kg
- Gross weight4.9 kg
- Machine dimensions183.5 × 133.4 × 191 mm
- Packing dimensions356.5 × 286 × 368 mm
- ConsumablePRO-P
Sample orders from 1 pieceStandard models ship in 15–30 days48-hour aging test1-year warrantyCE & RoHSOEM / ODM welcome
We reply within one business day (GMT+8). WhatsApp is the fastest channel.
Full Specifications
X-DB7 datasheet
| Model | X-DB7 |
| Input voltage | AC 220–240 V, 50/60 Hz |
| Total power consumption | 60 W |
| Total power of LED | 8W × 6pcs |
| LED colour | RGBA |
| Spray angle | 180° |
| Max spray height | Approx. 10 m |
| Bubble Fluid Consumption Rate | Approx. 45.4 min/L |
| Fluid tank capacity | 1.3 L |
| Machine dimensions | 183.5 × 133.4 × 191 mm |
| Consumable | PRO-P |
| Wireless control | W-2 |
| Control protocol | DMX-512 |
| DMX channels | 7 |
| Net weight | 4 kg |
| Gross weight | 4.9 kg |
| Packing dimensions | 356.5 × 286 × 368 mm |
Compare with
Side-by-side specifications
Pick up to 3 models to compare against X-DB7. Full datasheets are one click away.
| Specification |  X-DB7This model | H-K1Pro Auto Smoke Ring Machine |  H-1 PLUS2-in-1 Moving-Head Fog Jet |
|---|---|---|---|
| Type | — | Auto smoke ring machine | Moving head super-jet fog machine |
| Light source | — | RGB 3-in-1 LED ring | 24 × 5 W, RGBA |
| Control protocol | DMX-512 | DMX512, 3 channels | DMX-512, 10 channels |
| Input voltage | AC 220–240 V, 50/60 Hz | AC 220–240 V, 50/60 Hz | 220–240 V, 50/60 Hz |
Features
What the X-DB7 does on your stage
Smaller, more convenient using
Smaller, more convenient using.

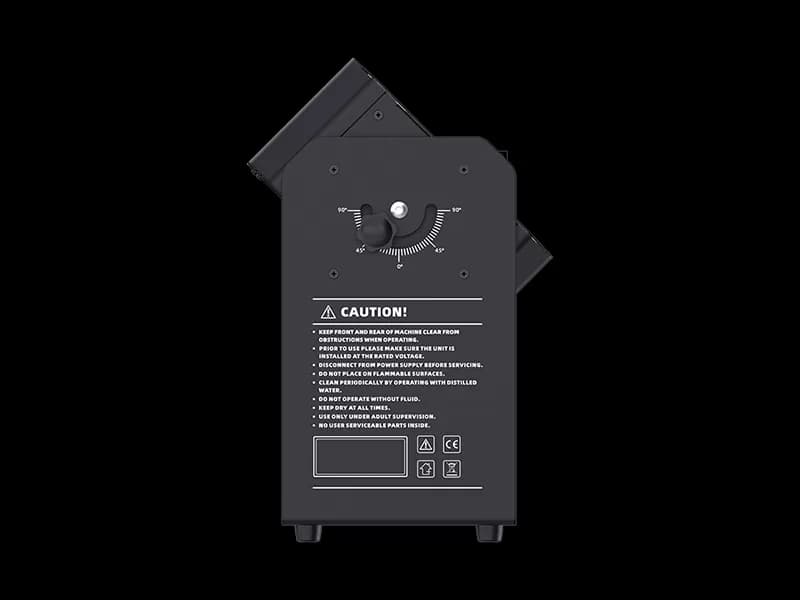

Jet design
Support 180° adjustment of bubble jet direction.

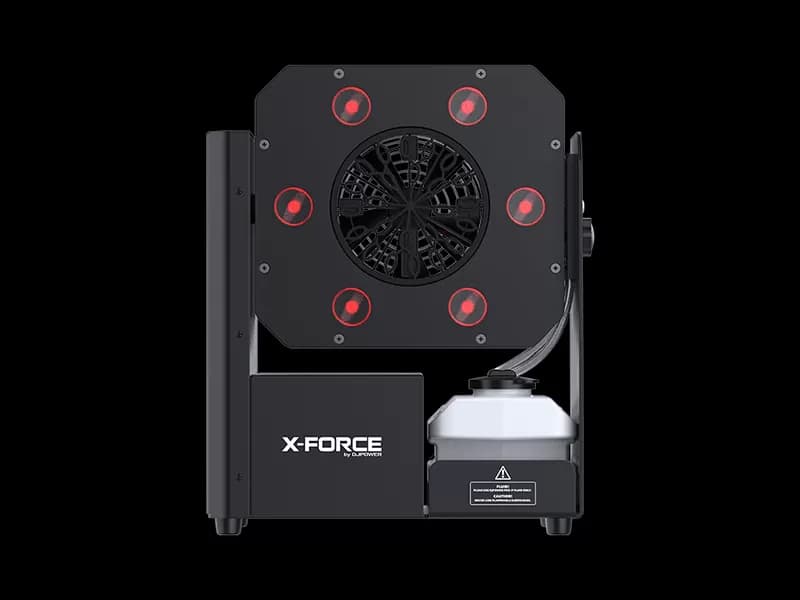

Fan system
Built-in strong fan, Spray the bubbles to about 10 meters.
LED lighting
6 PCS 8 W RGBA 4-in-1 LEDs, with colorful bubble effects.
Applications & Downloads
Where it works
Accessorize the rig
In the box & often bought together
After-sales & warranty
Backed before and after the show
1-year warranty
Fixtures carry a 1-year warranty; per-model terms are stated in your quotation and order confirmation.
Spare modules stocked
We stock spare modules for all current models — ship them with future orders or separately by express.
Remote technical support
DMX mapping advice, programming help and repair guidance by video call, on WhatsApp or email.
48-hour aging test
Every unit passes a 48-hour aging test and full-function inspection before packing.
Full purchasing, OEM and after-sales answers in the FAQ.
Good to know
X-DB7 — quick answers
What voltage does the X-DB7 require?
The Multi-angle Bubble accepts AC 220–240 V, 50/60 Hz. We build for export markets — tell us your target market in the inquiry and we confirm the matching power configuration before dispatch.
Can I order the X-DB7 with my own logo (OEM/ODM)?
Yes — logo, startup screen, nameplate and packaging are the most common OEM requests. Send your artwork and we confirm the mock-up before production.
How fast can I get a sample of the X-DB7?
Sample orders start from 1 piece. Standard models usually ship within 15–30 days depending on model and quantity, and every unit passes a 48-hour aging test before packing.
