MODEL V-5

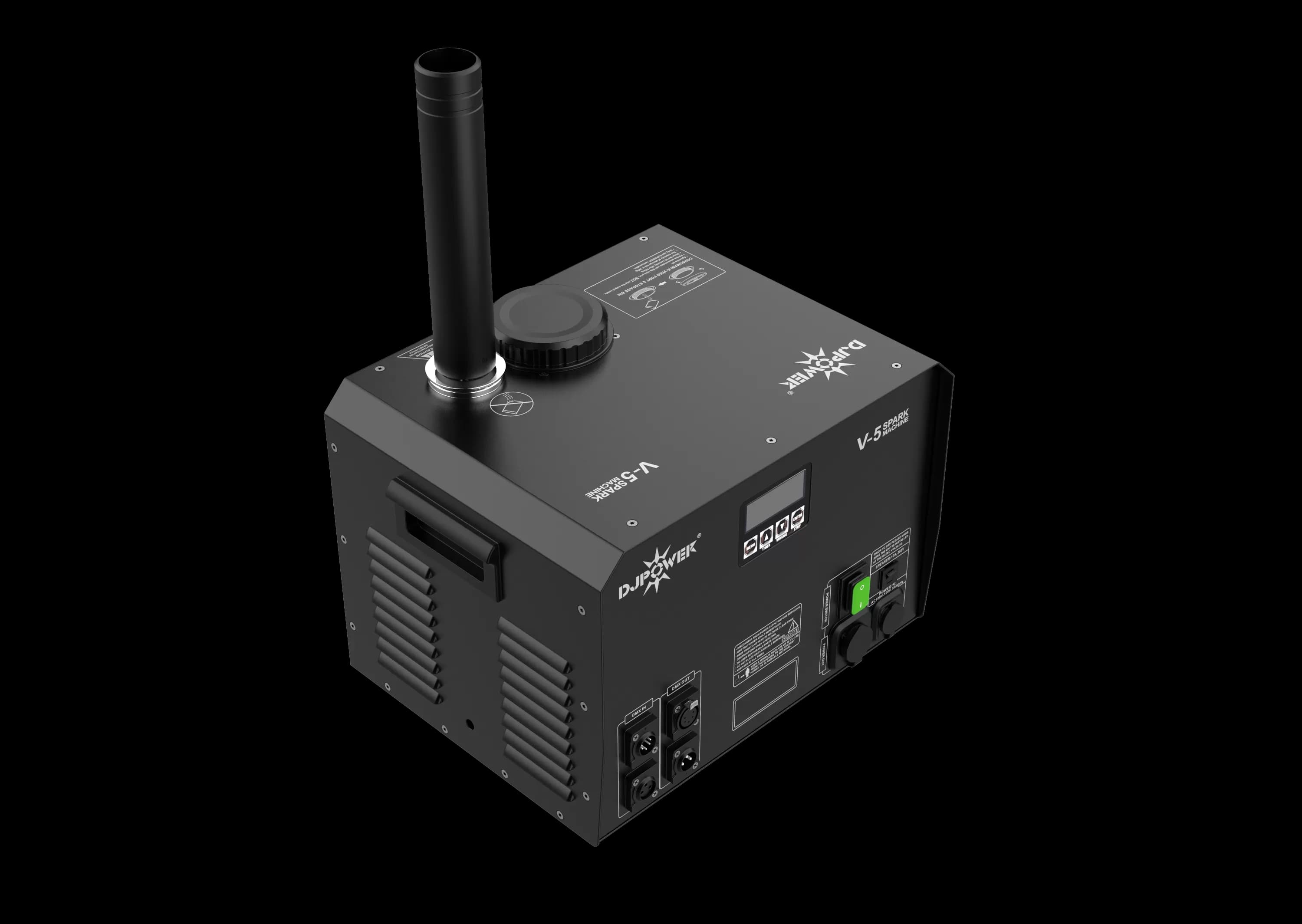

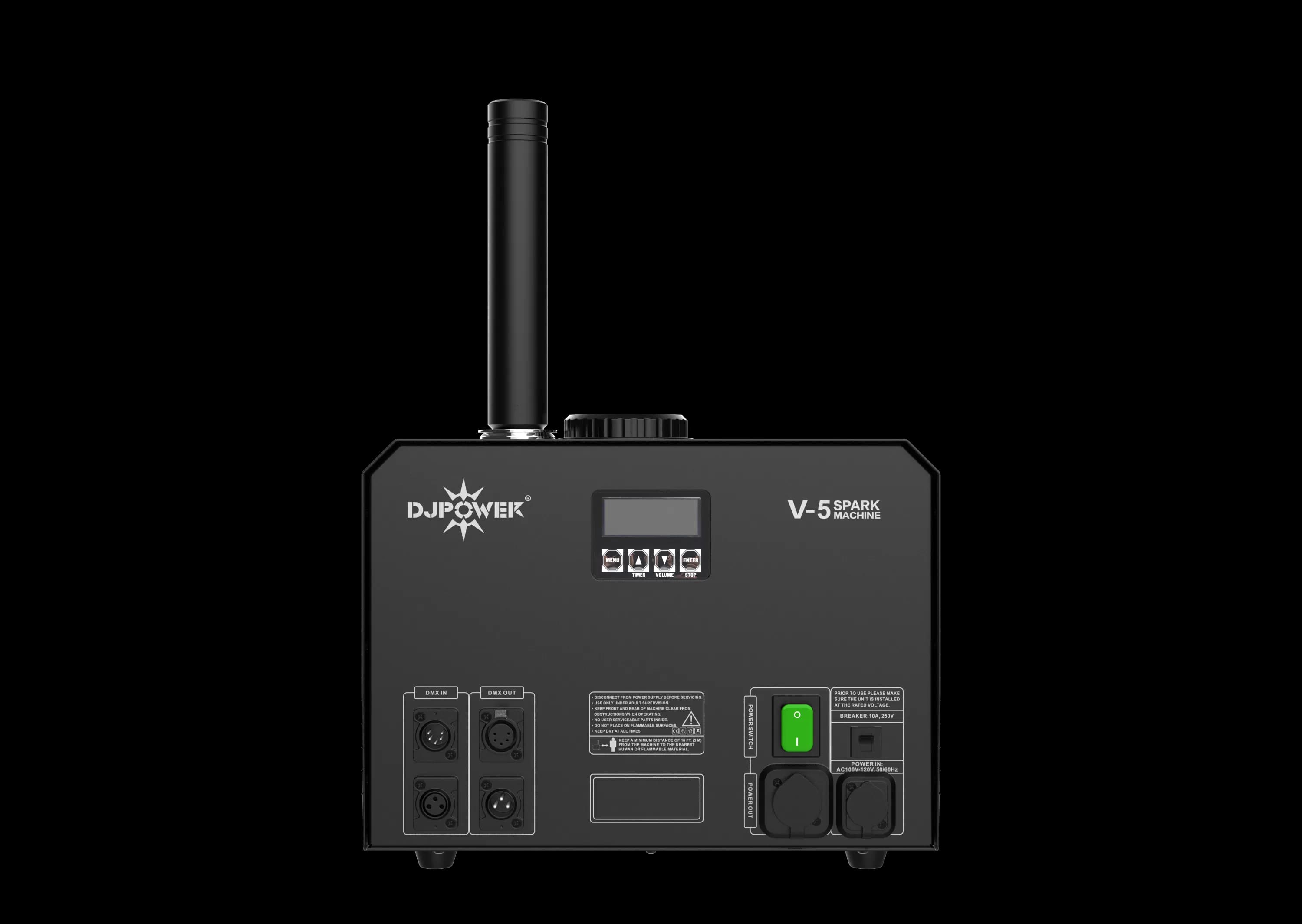

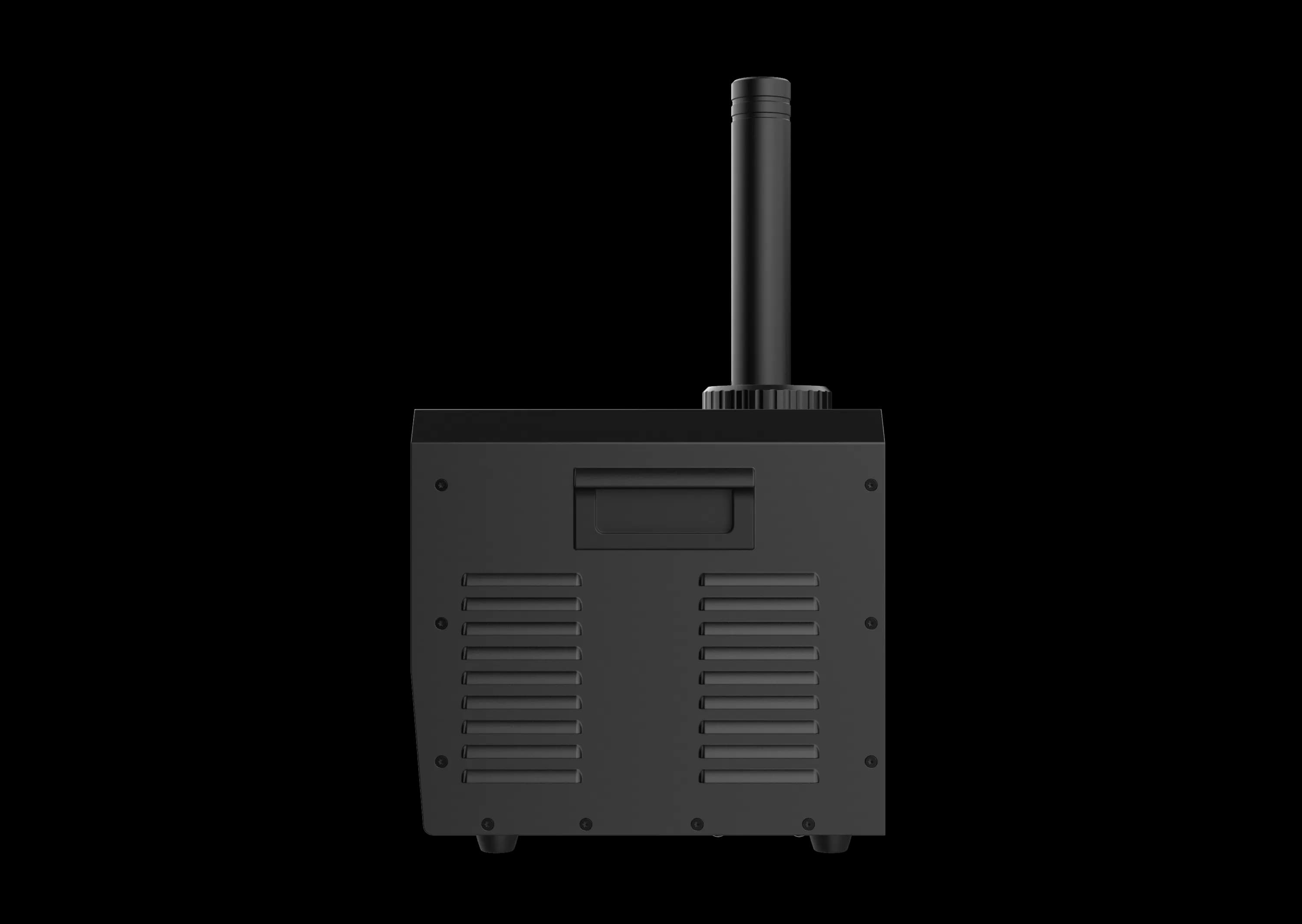

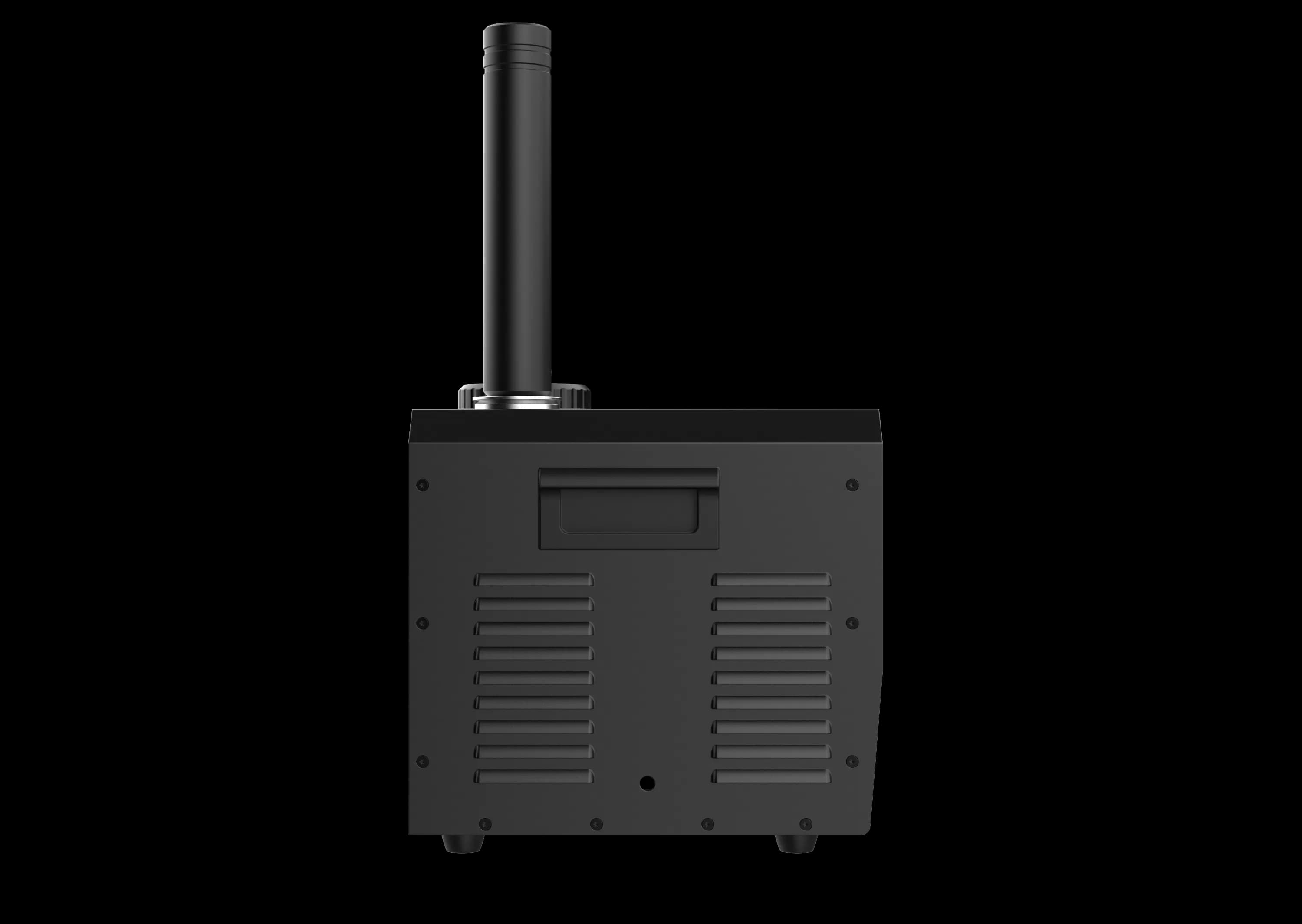

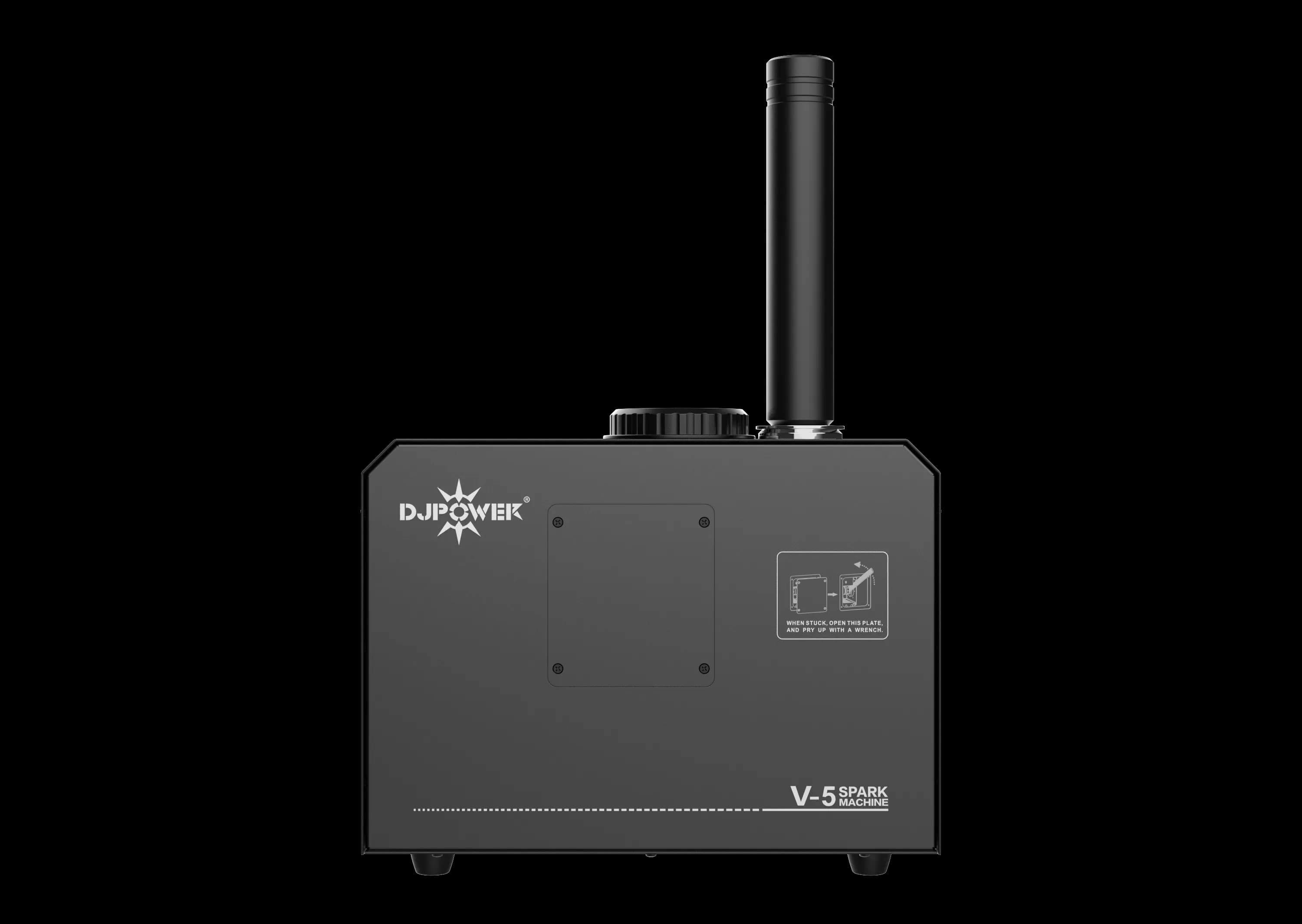

500 W Spark Jet
A 500 W Spark Jet with 10–12 m output height, DMX512 3-channel control, 20 kg net weight.
- Input voltage220–240 V, 50/60 Hz
- Breaker typeBreaker
- Breaker10 A, 250 V
- Total power consumption500 W
- Operating Current10
- Power Input ConnectorLockable PowerCon
- Power Output ConnectorLockable PowerCon
- Heat-up timeApprox. 15 min
- Powder Tank Capacity380 g
- Max output heightApprox. 10–12 m
- Powder Consumption RateApprox. 10–15 g/shoot
- Full powder shoot25 times
- Power CordYes
- Wireless Controller ModelNo
- Wired Controller ModelNo
- On-device controlLCD control board
- Wireless controlNo
- Wired controlNo
- Control protocolDMX-512
- DMX channels3
- Data Connectors3-pin and 5-pin XLR
- Rfid CardYes
- CeYes
- RoHSYes
- Net weight20 kg
- Gross weight22.6 kg
- Machine dimensions386.1 × 290 × 298 mm
- Packing dimensions504 × 430 × 396 mm
Sample orders from 1 pieceStandard models ship in 15–30 days48-hour aging test1-year warrantyCE & RoHSOEM / ODM welcome
We reply within one business day (GMT+8). WhatsApp is the fastest channel.
Full Specifications
V-5 datasheet
| Model | V-5 |
| Input voltage | 220–240 V, 50/60 Hz |
| Breaker type | Breaker |
| Breaker | 10 A, 250 V |
| Total power consumption | 500 W |
| Heat-up time | Approx. 15 min |
| Powder Tank Capacity | 380 g |
| Max output height | Approx. 10–12 m |
| Powder Consumption Rate | Approx. 10–15 g/shoot |
| Full powder shoot | 25 times |
| Power Cord | Yes |
| Rfid Card | Yes |
| Ce | Yes |
| RoHS | Yes |
| Machine dimensions | 386.1 × 290 × 298 mm |
| Power Input Connector | Lockable PowerCon |
| Power Output Connector | Lockable PowerCon |
| Wireless Controller Model | No |
| Wired Controller Model | No |
| On-device control | LCD control board |
| Wireless control | No |
| Wired control | No |
| Control protocol | DMX-512 |
| DMX channels | 3 |
| Data Connectors | 3-pin and 5-pin XLR |
| Operating Current | 10 |
| Net weight | 20 kg |
| Gross weight | 22.6 kg |
| Packing dimensions | 504 × 430 × 396 mm |
Compare with
Side-by-side specifications
Pick up to 3 models to compare against V-5. Full datasheets are one click away.
| Specification |  V-5This model |  H-K1Pro Auto Smoke Ring Machine |  H-1 PLUS2-in-1 Moving-Head Fog Jet |
|---|---|---|---|
| Type | — | Auto smoke ring machine | Moving head super-jet fog machine |
| Light source | — | RGB 3-in-1 LED ring | 24 × 5 W, RGBA |
| Control protocol | DMX-512 | DMX512, 3 channels | DMX-512, 10 channels |
| Input voltage | 220–240 V, 50/60 Hz | AC 220–240 V, 50/60 Hz | 220–240 V, 50/60 Hz |
See it in action
Product demo
Features
What the V-5 does on your stage
Automatic charging, no need
Automatic charging, no need to use external air source, more convenient to use.
Jet design
Combination of explosion sound and super-jet, instantly bring flash spark effects.
Adjustable height is up to 10
Adjustable height is up to 10 meters, and the flash spark effect is higher and denser.
Usage note
Note: The actual effect may be affected by the usage environment.
Applications & Downloads
Where it works
Accessorize the rig
In the box & often bought together
After-sales & warranty
Backed before and after the show
1-year warranty
Fixtures carry a 1-year warranty; per-model terms are stated in your quotation and order confirmation.
Spare modules stocked
We stock spare modules for all current models — ship them with future orders or separately by express.
Remote technical support
DMX mapping advice, programming help and repair guidance by video call, on WhatsApp or email.
48-hour aging test
Every unit passes a 48-hour aging test and full-function inspection before packing.
Full purchasing, OEM and after-sales answers in the FAQ.
Good to know
V-5 — quick answers
What voltage does the V-5 require?
The 500 W Spark Jet accepts 220–240 V, 50/60 Hz. We build for export markets — tell us your target market in the inquiry and we confirm the matching power configuration before dispatch.
Can I order the V-5 with my own logo (OEM/ODM)?
Yes — logo, startup screen, nameplate and packaging are the most common OEM requests. Send your artwork and we confirm the mock-up before production.
How fast can I get a sample of the V-5?
Sample orders start from 1 piece. Standard models usually ship within 15–30 days depending on model and quantity, and every unit passes a 48-hour aging test before packing.
