Product demo

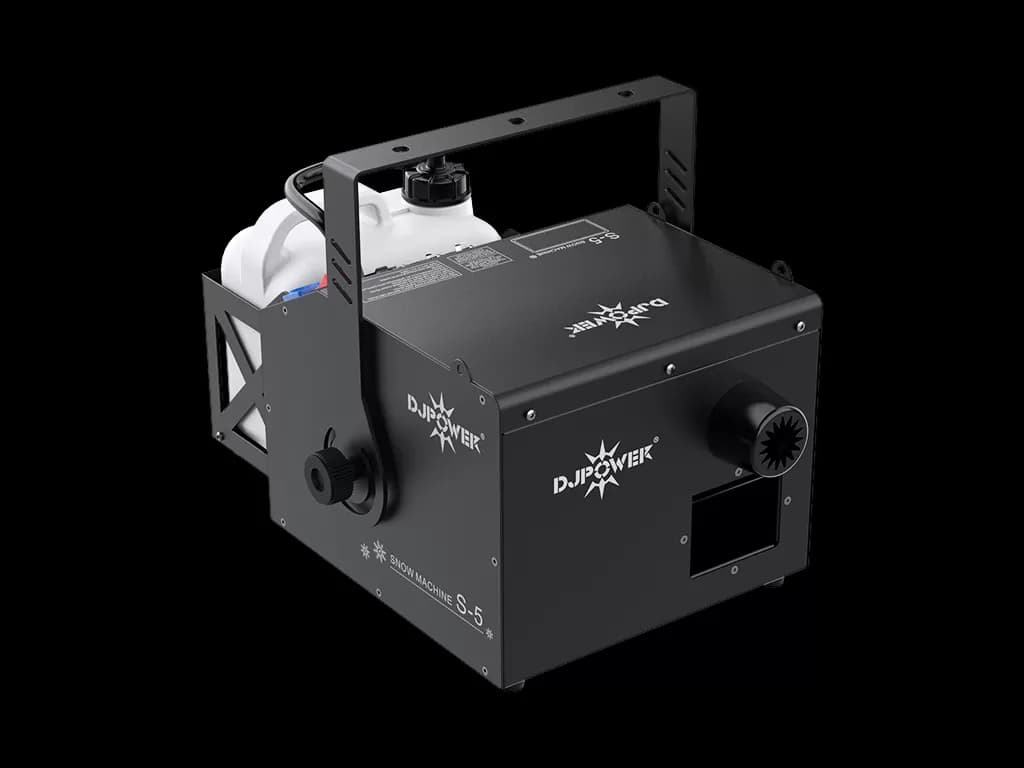

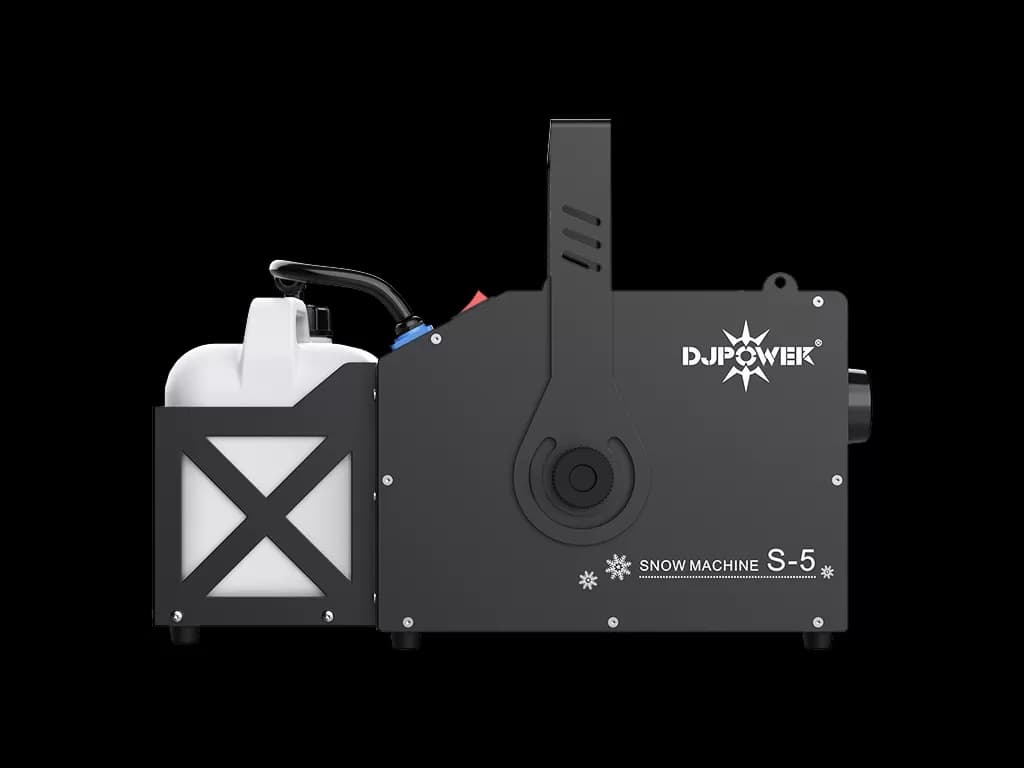

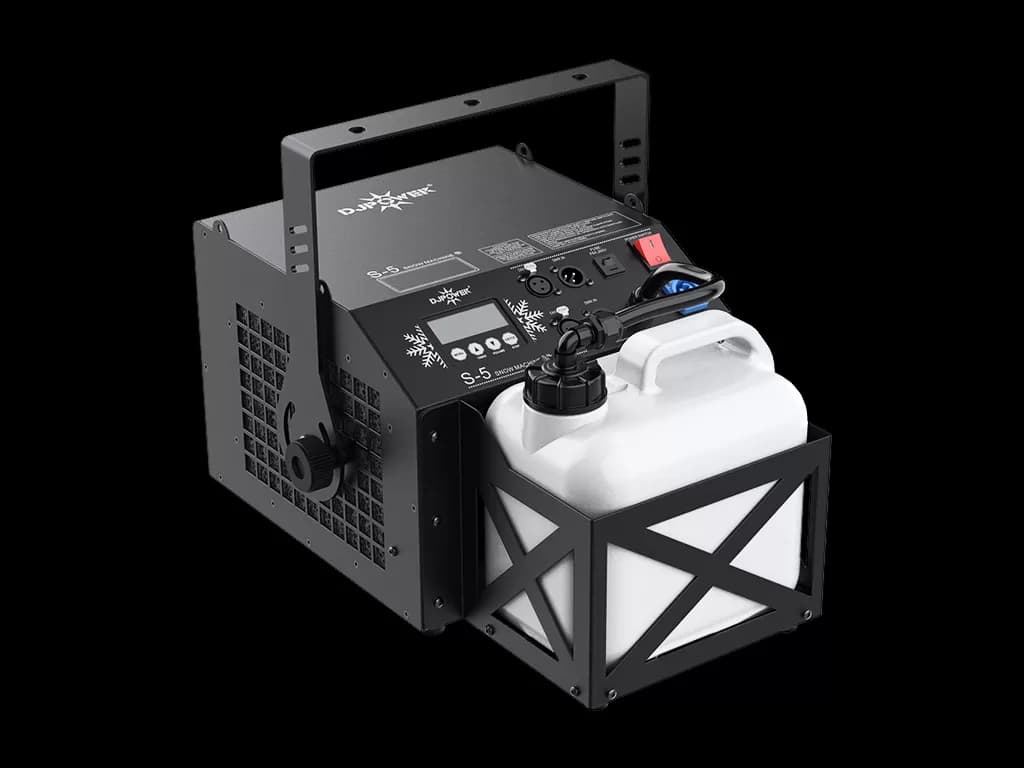

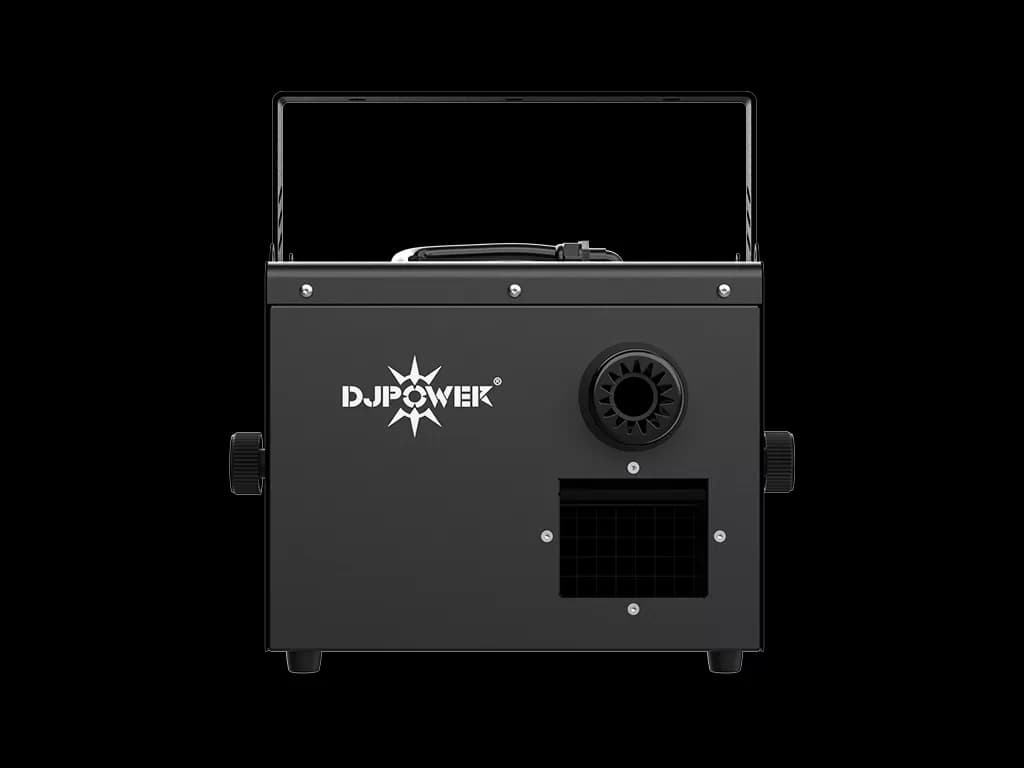

MODEL S-5
300 W Snow Machine
A 300 W Snow Machine with 7 m throw, 5 m output height, DMX512 2-channel control.
- Input voltage220–240 V, 50/60 Hz
- Breaker typeBreaker
- Breaker5 A, 250 V
- Total power consumption300 W
- Operating Current1.3
- Power Input ConnectorLockable PowerCon
- Fluid tank capacity5 L
- Adjustable outputYes
- Volume Adjustment Level/Range1–100%
- Max output heightApprox. 5 m
- Max output distanceApprox. 7 m
- Fluid Consumption @ full volumeApprox. 16.7 min/L
- Continuous OutputYes
- Max continuous output level100%
- Fully-loaded Cumulative Output Duration @ full volumeApprox. 83 min
- On-device controlLCD control board
- Wireless controlW-4 / RF 433MHz / Built-in
- Wired controlNo
- Control protocolDMX-512
- DMX channels2
- Data Connectors3-pin and 5-pin XLR
- Power CordYes
- Wireless Controller ModelW-4 / RF 433MHz / Transmitter
- Wired Controller ModelNo
- ConsumablePRO-X or PRO-X.2 or PRO-X.3 or PRO-X.4 or D-08
- Net weight12.3 kg
- Gross weight13.8 kg
- Machine dimensions508.3 × 359 × 267 mm
- Packing dimensions590 × 415 × 345 mm
Sample orders from 1 pieceStandard models ship in 15–30 days48-hour aging test1-year warrantyCE & RoHSOEM / ODM welcome
We reply within one business day (GMT+8). WhatsApp is the fastest channel.
Full Specifications
S-5 datasheet
| Model | S-5 |
| Input voltage | 220–240 V, 50/60 Hz |
| Breaker type | Breaker |
| Breaker | 5 A, 250 V |
| Total power consumption | 300 W |
| Fluid tank capacity | 5 L |
| Adjustable output | Yes |
| Volume Adjustment Level/Range | 1–100% |
| Max output height | Approx. 5 m |
| Max output distance | Approx. 7 m |
| Fluid Consumption @ full volume | Approx. 16.7 min/L |
| Continuous Output | Yes |
| Max continuous output level | 100% |
| Fully-loaded Cumulative Output Duration @ full volume | Approx. 83 min |
| Power Cord | Yes |
| Consumable | PRO-X or PRO-X.2 or PRO-X.3 or PRO-X.4 or D-08 |
| Machine dimensions | 508.3 × 359 × 267 mm |
| Power Input Connector | Lockable PowerCon |
| On-device control | LCD control board |
| Wireless control | W-4 / RF 433MHz / Built-in |
| Wired control | No |
| Control protocol | DMX-512 |
| DMX channels | 2 |
| Data Connectors | 3-pin and 5-pin XLR |
| Wireless Controller Model | W-4 / RF 433MHz / Transmitter |
| Wired Controller Model | No |
| Operating Current | 1.3 |
| Net weight | 12.3 kg |
| Gross weight | 13.8 kg |
| Packing dimensions | 590 × 415 × 345 mm |
Compare with
Side-by-side specifications
Pick up to 3 models to compare against S-5. Full datasheets are one click away.
| Specification |  S-5This model |  H-K1Pro Auto Smoke Ring Machine |  H-1 PLUS2-in-1 Moving-Head Fog Jet |
|---|---|---|---|
| Type | — | Auto smoke ring machine | Moving head super-jet fog machine |
| Light source | — | RGB 3-in-1 LED ring | 24 × 5 W, RGBA |
| Control protocol | DMX-512 | DMX512, 3 channels | DMX-512, 10 channels |
| Input voltage | 220–240 V, 50/60 Hz | AC 220–240 V, 50/60 Hz | 220–240 V, 50/60 Hz |
See it in action
Product demo
Features
What the S-5 does on your stage
Super quiet, 72db from 10-meter
Super quiet, 72db from 10-meter distance.
Output performance
Adjustable snowflake size, output volume and distance.
Advanced pump and improved
Advanced pump and improved PCB.
Fluid system
Improved circuit design prevents fluid clogging issue, more reliable.
Applications & Downloads
Where it works
Accessorize the rig
In the box & often bought together
After-sales & warranty
Backed before and after the show
1-year warranty
Fixtures carry a 1-year warranty; per-model terms are stated in your quotation and order confirmation.
Spare modules stocked
We stock spare modules for all current models — ship them with future orders or separately by express.
Remote technical support
DMX mapping advice, programming help and repair guidance by video call, on WhatsApp or email.
48-hour aging test
Every unit passes a 48-hour aging test and full-function inspection before packing.
Full purchasing, OEM and after-sales answers in the FAQ.
Good to know
S-5 — quick answers
What voltage does the S-5 require?
The 300 W Snow Machine accepts 220–240 V, 50/60 Hz. We build for export markets — tell us your target market in the inquiry and we confirm the matching power configuration before dispatch.
Can I order the S-5 with my own logo (OEM/ODM)?
Yes — logo, startup screen, nameplate and packaging are the most common OEM requests. Send your artwork and we confirm the mock-up before production.
How fast can I get a sample of the S-5?
Sample orders start from 1 piece. Standard models usually ship within 15–30 days depending on model and quantity, and every unit passes a 48-hour aging test before packing.
