Product demo
MODEL R-4
Mini LED Confetti Machine
A Mini LED Confetti Machine with 1,500 W power, (45°) 5.5 m throw, (90°) 5 m output height.
- Input voltage220–240 V, 50/60 Hz
- Breaker typeFuse (F)
- Breaker8 A, 250 V
- Total power consumption1,500 W
- Operating Current6.5
- Power Input ConnectorHard-wired
- LED colorRGBA
- LED typeQuad-Color
- Power per LED8 W
- LED quantity6 pcs
- Adjustable outputNo
- Volume Adjustment Level/Range0-180°
- Max output height(90°) Approx. 5 m
- Max output distance(45°) Approx. 5.5 m
- Max Coverage30 ㎡
- Maximum Continuous Duration @ full volumeApprox. 20 sec
- On-device control7-seg digital display
- Wireless controlW-2 Upgrade / RF 315MHz / External receiver
- Control protocolDMX-512
- DMX channels9
- Data Connectors3- and 5-pin XLR
- Power CordYes
- Wireless Controller ModelW-2 Upgrade / RF 315MHz / Transmitter & Receiver
- ConsumableConfetti
- Net weight8.2 kg
- Gross weight9.1kg
- Machine dimensions300 × 243 × 501.2 mm
- Packing dimensions395 × 300 × 555 mm
Sample orders from 1 pieceStandard models ship in 15–30 days48-hour aging test1-year warrantyCE & RoHSOEM / ODM welcome
We reply within one business day (GMT+8). WhatsApp is the fastest channel.
Full Specifications
R-4 datasheet
| Model | R-4 |
| Input voltage | 220–240 V, 50/60 Hz |
| Breaker type | Fuse (F) |
| Breaker | 8 A, 250 V |
| Total power consumption | 1,500 W |
| LED type | Quad-Color |
| Power per LED | 8 W |
| LED quantity | 6 pcs |
| Adjustable output | No |
| Volume Adjustment Level/Range | 0-180° |
| Max output height | (90°) Approx. 5 m |
| Max output distance | (45°) Approx. 5.5 m |
| Max Coverage | 30 ㎡ |
| Maximum Continuous Duration @ full volume | Approx. 20 sec |
| Power Cord | Yes |
| Consumable | Confetti |
| Machine dimensions | 300 × 243 × 501.2 mm |
| LED color | RGBA |
| Power Input Connector | Hard-wired |
| On-device control | 7-seg digital display |
| Wireless control | W-2 Upgrade / RF 315MHz / External receiver |
| Control protocol | DMX-512 |
| DMX channels | 9 |
| Data Connectors | 3- and 5-pin XLR |
| Wireless Controller Model | W-2 Upgrade / RF 315MHz / Transmitter & Receiver |
| Operating Current | 6.5 |
| Net weight | 8.2 kg |
| Gross weight | 9.1kg |
| Packing dimensions | 395 × 300 × 555 mm |
Compare with
Side-by-side specifications
Pick up to 3 models to compare against R-4. Full datasheets are one click away.
| Specification |  R-4This model |  H-K1Pro Auto Smoke Ring Machine |  H-1 PLUS2-in-1 Moving-Head Fog Jet |
|---|---|---|---|
| Type | — | Auto smoke ring machine | Moving head super-jet fog machine |
| Light source | — | RGB 3-in-1 LED ring | 24 × 5 W, RGBA |
| Control protocol | DMX-512 | DMX512, 3 channels | DMX-512, 10 channels |
| Input voltage | 220–240 V, 50/60 Hz | AC 220–240 V, 50/60 Hz | 220–240 V, 50/60 Hz |
See it in action
Product demo
Features
What the R-4 does on your stage
Easy for operation
Easy for operation.
No compressed air or CO2
No compressed air or CO2 required, just add confetti.
Super stable and durable
Super stable and durable.

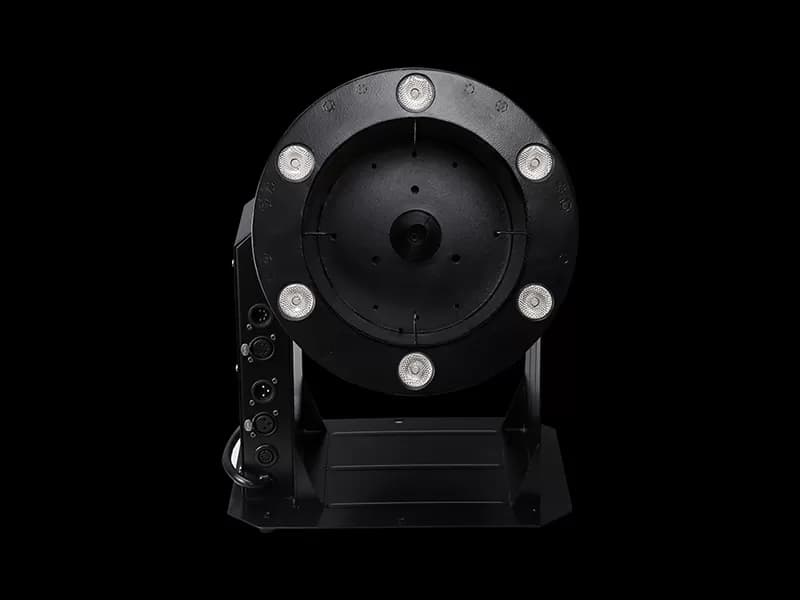

LED lighting
6 pcs 8 W RGBA quad LEDs.
Applications & Downloads
Where it works
Accessorize the rig
In the box & often bought together
After-sales & warranty
Backed before and after the show
1-year warranty
Fixtures carry a 1-year warranty; per-model terms are stated in your quotation and order confirmation.
Spare modules stocked
We stock spare modules for all current models — ship them with future orders or separately by express.
Remote technical support
DMX mapping advice, programming help and repair guidance by video call, on WhatsApp or email.
48-hour aging test
Every unit passes a 48-hour aging test and full-function inspection before packing.
Full purchasing, OEM and after-sales answers in the FAQ.
Good to know
R-4 — quick answers
What voltage does the R-4 require?
The Mini LED Confetti Machine accepts 220–240 V, 50/60 Hz. We build for export markets — tell us your target market in the inquiry and we confirm the matching power configuration before dispatch.
Can I order the R-4 with my own logo (OEM/ODM)?
Yes — logo, startup screen, nameplate and packaging are the most common OEM requests. Send your artwork and we confirm the mock-up before production.
How fast can I get a sample of the R-4?
Sample orders start from 1 piece. Standard models usually ship within 15–30 days depending on model and quantity, and every unit passes a 48-hour aging test before packing.
