- Vortex ring launcher, 10 m reach
- RGB 3-in-1 LED colorful rings
- Show-ready in ~1 min 50 s
- DMX512 + LCD control board

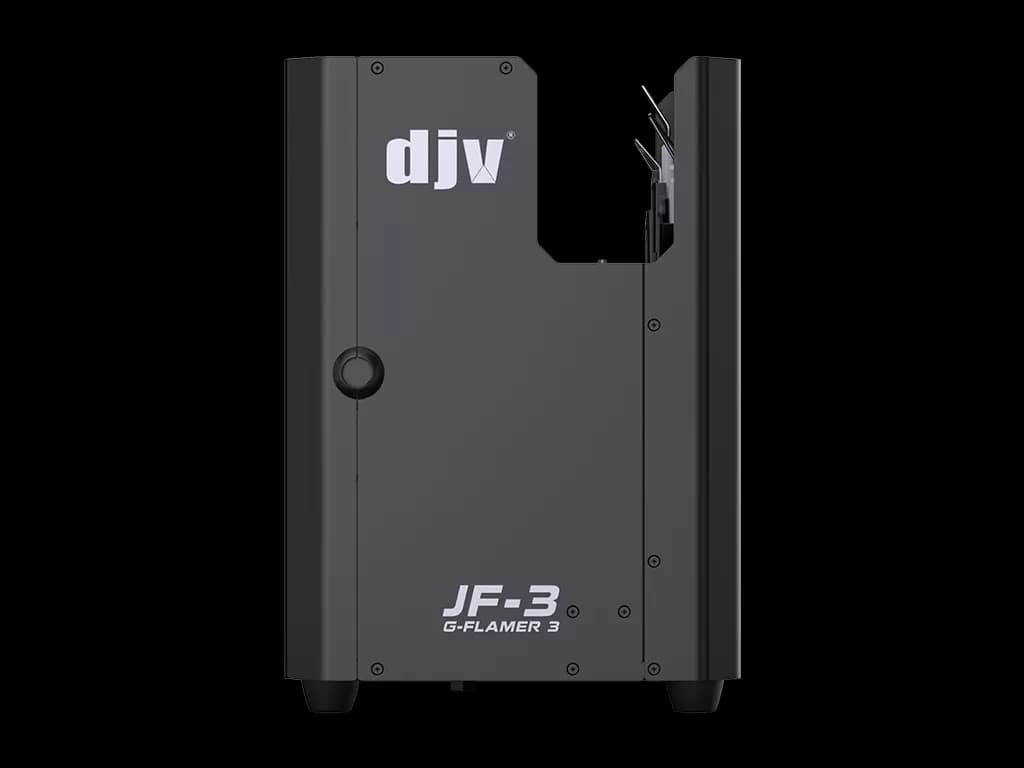

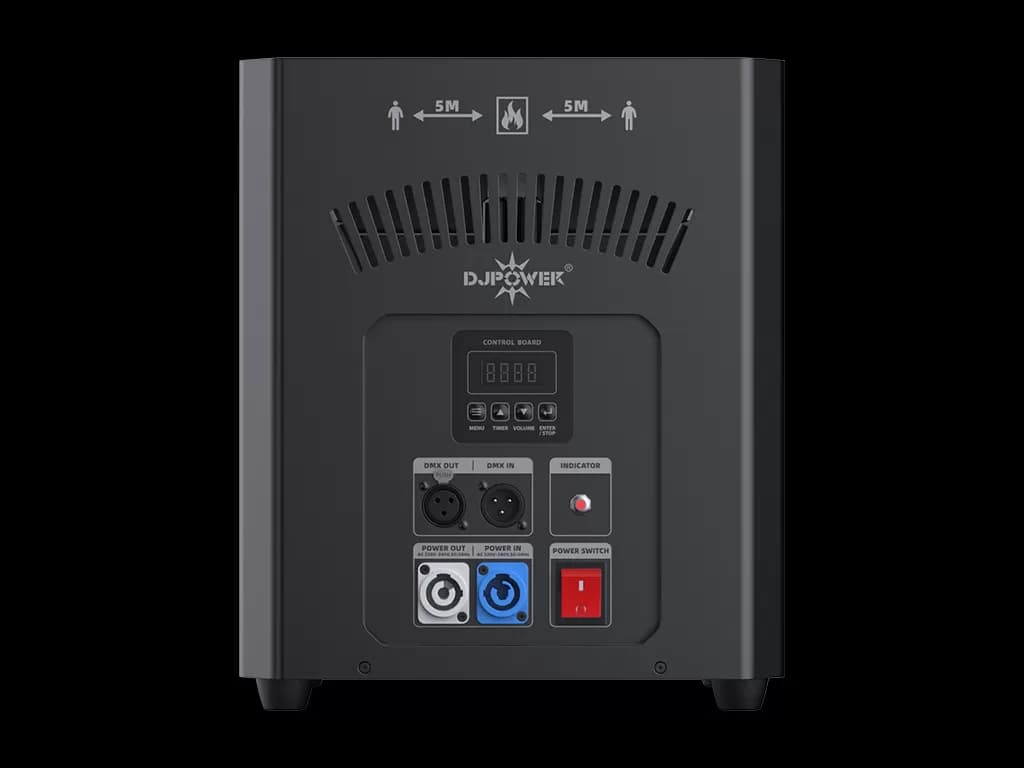

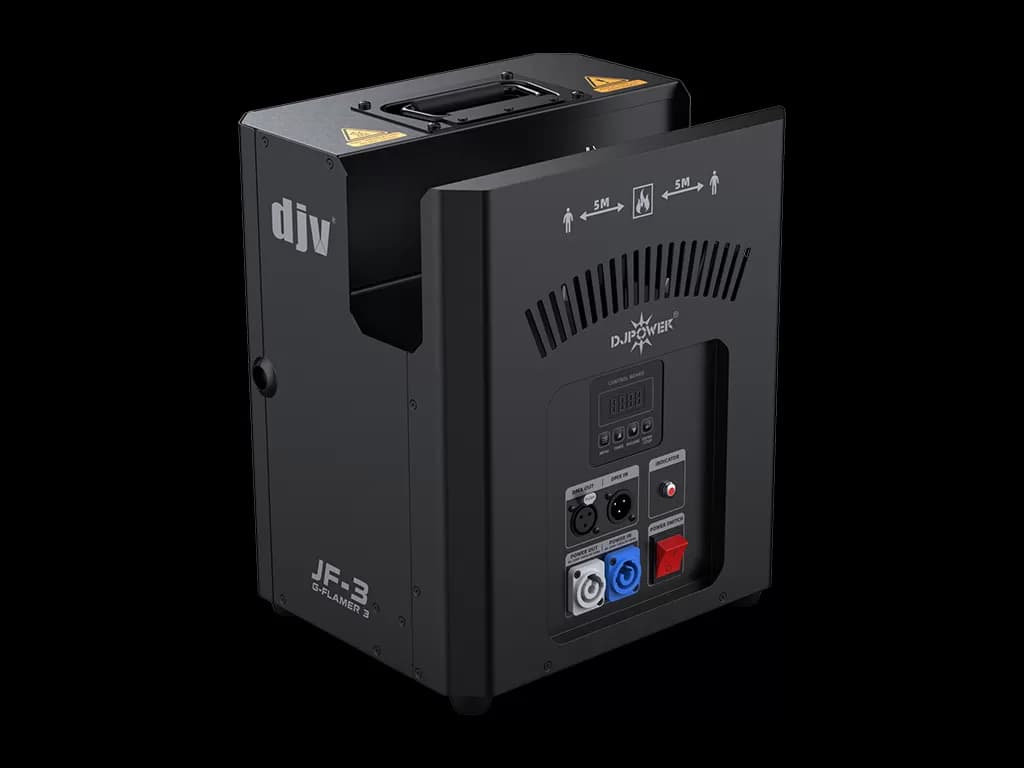

MODEL JF-3
G-flamer 3
A G-flamer 3 with 63 W power, DMX512 6-channel control, 8.7 kg net weight.
- Input voltage220–240 V, 50/60 Hz
- Total power consumption63 W
- Power Input ConnectorLockable PowerCon
- Max output heightApprox. 3–4 meters (no wind)
- Wireless controlNo
- Wire ControlYes
- Control protocolDMX-512
- DMX channels6
- Data Connectors3-pin XLR
- ConsumablesButane gas, gas cartridges bottle
- Net weight8.7 kg
- Gross weight9.4 kg
- Machine dimensions280 × 233 × 333 mm
- Packing dimensions342 × 294 × 390 mm
Sample orders from 1 pieceStandard models ship in 15–30 days48-hour aging test1-year warrantyCE & RoHSOEM / ODM welcome
We reply within one business day (GMT+8). WhatsApp is the fastest channel.
Full Specifications
JF-3 datasheet
| Model | JF-3 |
| Input voltage | 220–240 V, 50/60 Hz |
| Total power consumption | 63 W |
| Max output height | Approx. 3–4 meters (no wind) |
| Consumables | Butane gas, gas cartridges bottle |
| Machine dimensions | 280 × 233 × 333 mm |
| Power Input Connector | Lockable PowerCon |
| Wireless control | No |
| Wire Control | Yes |
| Control protocol | DMX-512 |
| DMX channels | 6 |
| Data Connectors | 3-pin XLR |
| Net weight | 8.7 kg |
| Gross weight | 9.4 kg |
| Packing dimensions | 342 × 294 × 390 mm |
Compare with
Side-by-side specifications
Pick up to 3 models to compare against JF-3. Full datasheets are one click away.
| Specification |  JF-3This model | H-K1Pro Auto Smoke Ring Machine |  H-1 PLUS2-in-1 Moving-Head Fog Jet |
|---|---|---|---|
| Type | — | Auto smoke ring machine | Moving head super-jet fog machine |
| Light source | — | RGB 3-in-1 LED ring | 24 × 5 W, RGBA |
| Control protocol | DMX-512 | DMX512, 3 channels | DMX-512, 10 channels |
| Input voltage | 220–240 V, 50/60 Hz | AC 220–240 V, 50/60 Hz | 220–240 V, 50/60 Hz |
Features
What the JF-3 does on your stage
Ignition system
Electric pulse ignitor and dual ignition.
Output performance
Flame height of 3–4 meters with powerful output.
Safety protection
Equipped with safety channel and tilt protection, high safety factor.
DMX control
Built-in DMX control, multiple machines can be used in series.
Accessorize the rig
In the box & often bought together
After-sales & warranty
Backed before and after the show
1-year warranty
Fixtures carry a 1-year warranty; per-model terms are stated in your quotation and order confirmation.
Spare modules stocked
We stock spare modules for all current models — ship them with future orders or separately by express.
Remote technical support
DMX mapping advice, programming help and repair guidance by video call, on WhatsApp or email.
48-hour aging test
Every unit passes a 48-hour aging test and full-function inspection before packing.
Full purchasing, OEM and after-sales answers in the FAQ.
Good to know
JF-3 — quick answers
What voltage does the JF-3 require?
The G-flamer 3 accepts 220–240 V, 50/60 Hz. We build for export markets — tell us your target market in the inquiry and we confirm the matching power configuration before dispatch.
Can I order the JF-3 with my own logo (OEM/ODM)?
Yes — logo, startup screen, nameplate and packaging are the most common OEM requests. Send your artwork and we confirm the mock-up before production.
How fast can I get a sample of the JF-3?
Sample orders start from 1 piece. Standard models usually ship within 15–30 days depending on model and quantity, and every unit passes a 48-hour aging test before packing.
