MODEL H-X4 DMX
Cloud Walker
A Cloud Walker with DMX512 1-channel control, 65.9 kg net weight.
- Input voltage220–240 V, 50/60 Hz
- Typical Operating Current38.32A
- Total Power9,000 W
- Main Power3,000 W
- Auxiliary Power3,000W X 2
- Heat-up TimeApprox. 31 min (9,000W)
- Adjustable outputYes
- Volume Adjustment Level/Range1-10
- Max CoverageApprox. 800 ㎡
- Max continuous outputApprox. 7 min
- Water Tank CapacityApprox. 90 L
- Dry Ice CapacityApprox. 40 kg
- ConsumableDry Ice
- Wireless controlNo
- Wired controlNo
- Control protocolDMX-512/RDM
- DMX channels1
- Data Connectors3 and 5-pin XLR
- Diversion Hose2pc, 3.3m, 125mm
- Diversion Nozzle125 mm
- Moving CartYes
- Power CordYes
- Wireless Controller ModelNo
- Wired Controller ModelNo
- Net weight65.9 kg
- Flight case Weight89.2 kg
- Gross weight92.3 kg
- Machine dimensions700.8 × 670.8 × 884.7 mm
- Flight case Dimensions714.5 × 684.4 × 924 mm
- Packing dimensions735 × 705 × 846 mm
Sample orders from 1 pieceStandard models ship in 15–30 days48-hour aging test1-year warrantyCE & RoHSOEM / ODM welcome
We reply within one business day (GMT+8). WhatsApp is the fastest channel.
Full Specifications
H-X4 DMX datasheet
| Model | H-X4 DMX |
| Input voltage | 220–240 V, 50/60 Hz |
| Total Power | 9,000 W |
| Main Power | 3,000 W |
| Auxiliary Power | 3,000W X 2 |
| Heat-up Time | Approx. 31 min (9,000W) |
| Adjustable output | Yes |
| Volume Adjustment Level/Range | 1-10 |
| Max Coverage | Approx. 800 ㎡ |
| Max continuous output | Approx. 7 min |
| Water Tank Capacity | Approx. 90 L |
| Dry Ice Capacity | Approx. 40 kg |
| Consumable | Dry Ice |
| Diversion Hose | 2pc, 3.3m, 125mm |
| Diversion Nozzle | 125 mm |
| Moving Cart | Yes |
| Power Cord | Yes |
| Machine dimensions | 700.8 × 670.8 × 884.7 mm |
| Flight case Dimensions | 714.5 × 684.4 × 924 mm |
| Wireless control | No |
| Wired control | No |
| Control protocol | DMX-512/RDM |
| DMX channels | 1 |
| Data Connectors | 3 and 5-pin XLR |
| Wireless Controller Model | No |
| Wired Controller Model | No |
| Typical Operating Current | 38.32A |
| Net weight | 65.9 kg |
| Flight case Weight | 89.2 kg |
| Gross weight | 92.3 kg |
| Packing dimensions | 735 × 705 × 846 mm |
Compare with
Side-by-side specifications
Pick up to 3 models to compare against H-X4 DMX. Full datasheets are one click away.
| Specification |  H-X4 DMXThis model |  H-K1Pro Auto Smoke Ring Machine |  H-1 PLUS2-in-1 Moving-Head Fog Jet |
|---|---|---|---|
| Type | — | Auto smoke ring machine | Moving head super-jet fog machine |
| Light source | — | RGB 3-in-1 LED ring | 24 × 5 W, RGBA |
| Control protocol | DMX-512/RDM | DMX512, 3 channels | DMX-512, 10 channels |
| Input voltage | 220–240 V, 50/60 Hz | AC 220–240 V, 50/60 Hz | 220–240 V, 50/60 Hz |
See it in action
Product demo
Features
What the H-X4 DMX does on your stage

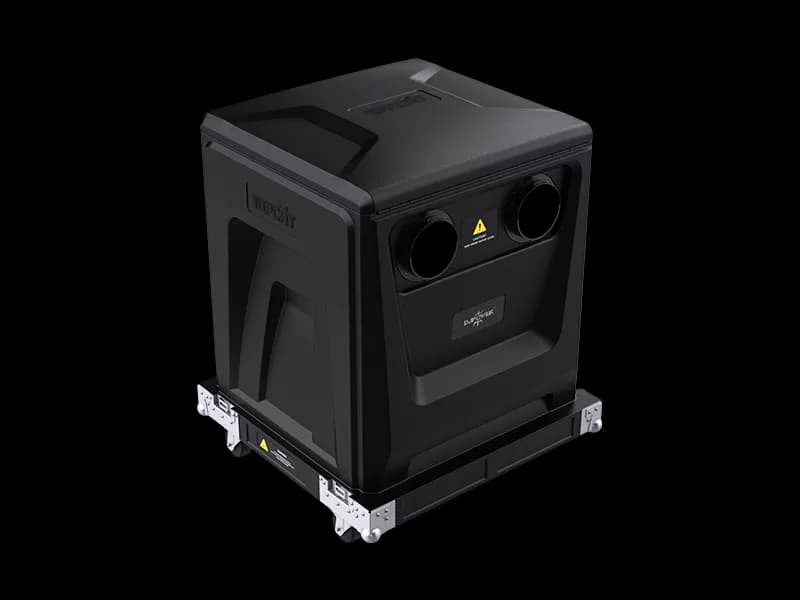

Rugged housing
Enhanced high-intensity composite shell, stainless and durable.
Heating system
Triple heating system (3,000W/6,100W/9,000W) allow for faster heating-up (only 31 min).
Create strong fog effect
Create strong fog effect from at most 13kg of dry ice one time to cover max 800㎡.
Output performance

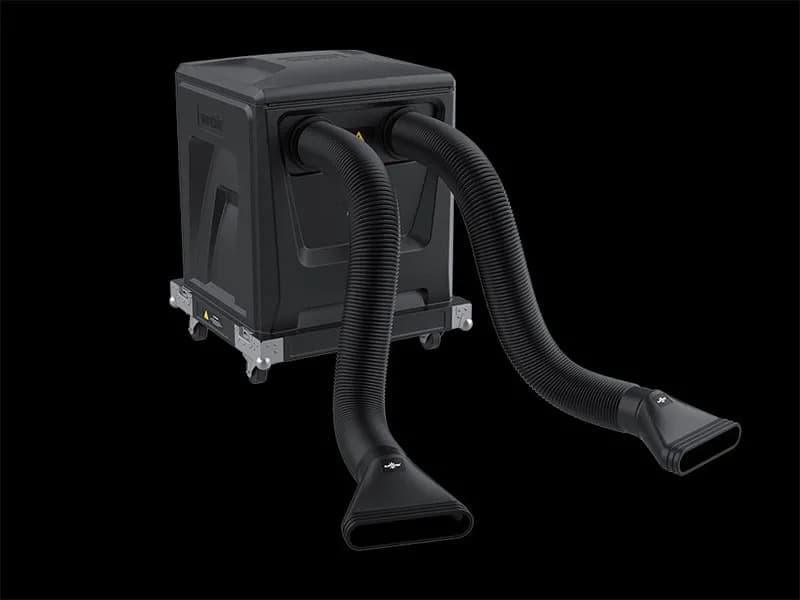

Dual nozzle design creates a majestic fog effect.
Applications & Downloads
Where it works
Accessorize the rig
In the box & often bought together
After-sales & warranty
Backed before and after the show
1-year warranty
Fixtures carry a 1-year warranty; per-model terms are stated in your quotation and order confirmation.
Spare modules stocked
We stock spare modules for all current models — ship them with future orders or separately by express.
Remote technical support
DMX mapping advice, programming help and repair guidance by video call, on WhatsApp or email.
48-hour aging test
Every unit passes a 48-hour aging test and full-function inspection before packing.
Full purchasing, OEM and after-sales answers in the FAQ.
Good to know
H-X4 DMX — quick answers
What voltage does the H-X4 DMX require?
The Cloud Walker accepts 220–240 V, 50/60 Hz. We build for export markets — tell us your target market in the inquiry and we confirm the matching power configuration before dispatch.
Can I order the H-X4 DMX with my own logo (OEM/ODM)?
Yes — logo, startup screen, nameplate and packaging are the most common OEM requests. Send your artwork and we confirm the mock-up before production.
How fast can I get a sample of the H-X4 DMX?
Sample orders start from 1 piece. Standard models usually ship within 15–30 days depending on model and quantity, and every unit passes a 48-hour aging test before packing.
