Product demo

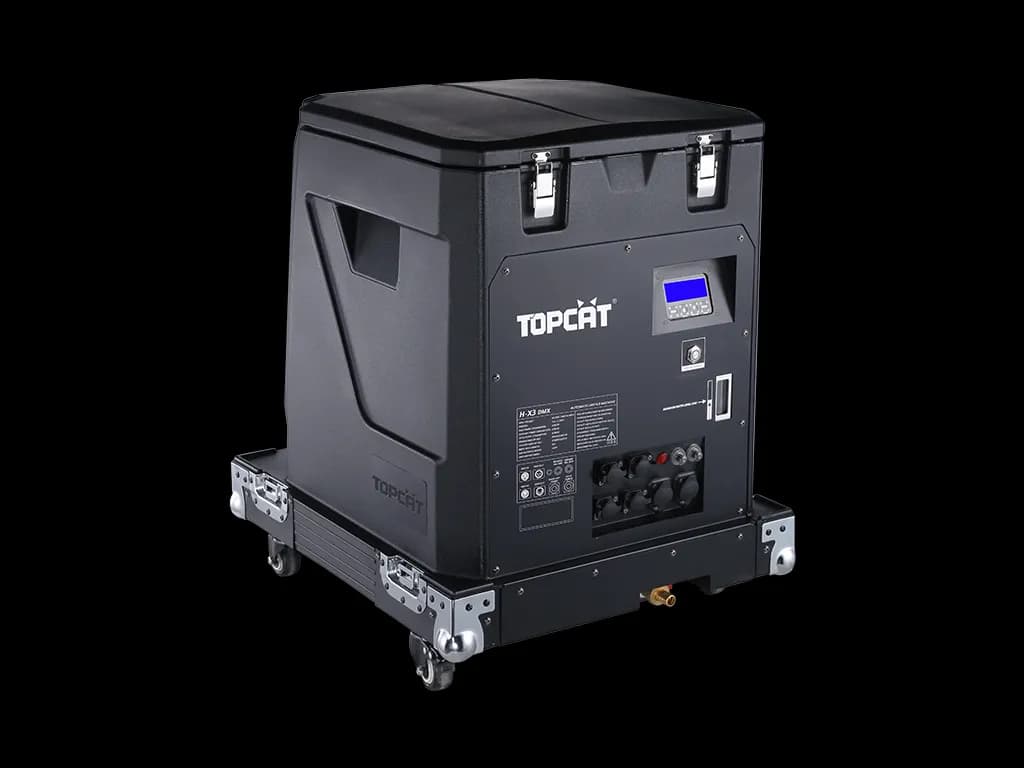

MODEL H-X3 DMX
Automatic Dry Ice Machine
An Automatic Dry Ice Machine with 6,100 W power, DMX512 1-channel control, 36.4 kg net weight.
- Input voltage220–240 V, 50/60 Hz
- Breaker typeBreaker
- Breaker15 A × 2, 250 V
- Total power consumption6,100 W
- Operating Current26.1
- Power Input ConnectorLockable PowerCon IP65
- Total Heating System Power Consumption6,100 W
- Main Heating System Power Consumption3,000 W
- Assistant Heating System Power Consumption3,000 W
- Normal Heat-up TimeApprox. 50.0 min (3,000W)
- Shortest Heat-up TimeApprox. 27 min (6,100W)
- Adjustable outputYes
- Volume Adjustment Level/Range10%-100%
- Max CoverageApprox. 300 ㎡
- Continuous DurationApprox. 3–10 min
- Continuous OutputYes
- Electronic Temperature Control65℃~80℃
- Water Tank Capacity36 L
- Dry Ice CapacityApprox. 13 kg
- ConsumableDry Ice
- On-device controlLCD & Physical manual button
- Wireless controlNo
- Wired controlNo
- Control protocolDMX-512
- DMX channels1
- Data Connectors3 and 5-pin XLR
- Diversion Hose1pc, 3.3 m, 125mm
- Diversion Nozzle125 mm
- Moving CartYes
- Power CordYes
- Wireless Controller ModelNo
- Wired Controller ModelNo
- Net weight36.4 kg
- Flight case Weight53.4 kg
- Gross weight57.4 kg
- Machine dimensions571.6 × 496.7 × 658.3 mm
- Flight case Dimensions571.6 × 496.7 × 838.2 mm
- Packing dimensions640 × 560 × 890 mm
Sample orders from 1 pieceStandard models ship in 15–30 days48-hour aging test1-year warrantyCE & RoHSOEM / ODM welcome
We reply within one business day (GMT+8). WhatsApp is the fastest channel.
Full Specifications
H-X3 DMX datasheet
| Model | H-X3 DMX |
| Input voltage | 220–240 V, 50/60 Hz |
| Breaker type | Breaker |
| Breaker | 15 A × 2, 250 V |
| Total power consumption | 6,100 W |
| Total Heating System Power Consumption | 6,100 W |
| Main Heating System Power Consumption | 3,000 W |
| Assistant Heating System Power Consumption | 3,000 W |
| Normal Heat-up Time | Approx. 50.0 min (3,000W) |
| Shortest Heat-up Time | Approx. 27 min (6,100W) |
| Adjustable output | Yes |
| Volume Adjustment Level/Range | 10%-100% |
| Max Coverage | Approx. 300 ㎡ |
| Continuous Duration | Approx. 3–10 min |
| Continuous Output | Yes |
| Water Tank Capacity | 36 L |
| Dry Ice Capacity | Approx. 13 kg |
| Consumable | Dry Ice |
| Diversion Hose | 1pc, 3.3 m, 125mm |
| Diversion Nozzle | 125 mm |
| Moving Cart | Yes |
| Power Cord | Yes |
| Machine dimensions | 571.6 × 496.7 × 658.3 mm |
| Flight case Dimensions | 571.6 × 496.7 × 838.2 mm |
| Power Input Connector | Lockable PowerCon IP65 |
| Electronic Temperature Control | 65℃~80℃ |
| On-device control | LCD & Physical manual button |
| Wireless control | No |
| Wired control | No |
| Control protocol | DMX-512 |
| DMX channels | 1 |
| Data Connectors | 3 and 5-pin XLR |
| Wireless Controller Model | No |
| Wired Controller Model | No |
| Operating Current | 26.1 |
| Net weight | 36.4 kg |
| Flight case Weight | 53.4 kg |
| Gross weight | 57.4 kg |
| Packing dimensions | 640 × 560 × 890 mm |
Compare with
Side-by-side specifications
Pick up to 3 models to compare against H-X3 DMX. Full datasheets are one click away.
| Specification |  H-X3 DMXThis model |  H-K1Pro Auto Smoke Ring Machine |  H-1 PLUS2-in-1 Moving-Head Fog Jet |
|---|---|---|---|
| Type | — | Auto smoke ring machine | Moving head super-jet fog machine |
| Light source | — | RGB 3-in-1 LED ring | 24 × 5 W, RGBA |
| Control protocol | DMX-512 | DMX512, 3 channels | DMX-512, 10 channels |
| Input voltage | 220–240 V, 50/60 Hz | AC 220–240 V, 50/60 Hz | 220–240 V, 50/60 Hz |
See it in action
Product demo
Features
What the H-X3 DMX does on your stage
Rugged housing
Enhanced high-intensity composite shell, lighter and durable.
Heating system
Dual heating system, (3,000 W/6,100 W) allow for faster heat-up (only 27 min.).
Clear water level indicator;
Clear water level indicator.
Easy one-button fog operation;
Easy one-button fog operation.
Applications & Downloads
Where it works
Accessorize the rig
In the box & often bought together
After-sales & warranty
Backed before and after the show
1-year warranty
Fixtures carry a 1-year warranty; per-model terms are stated in your quotation and order confirmation.
Spare modules stocked
We stock spare modules for all current models — ship them with future orders or separately by express.
Remote technical support
DMX mapping advice, programming help and repair guidance by video call, on WhatsApp or email.
48-hour aging test
Every unit passes a 48-hour aging test and full-function inspection before packing.
Full purchasing, OEM and after-sales answers in the FAQ.
Good to know
H-X3 DMX — quick answers
What voltage does the H-X3 DMX require?
The Automatic Dry Ice Machine accepts 220–240 V, 50/60 Hz. We build for export markets — tell us your target market in the inquiry and we confirm the matching power configuration before dispatch.
Can I order the H-X3 DMX with my own logo (OEM/ODM)?
Yes — logo, startup screen, nameplate and packaging are the most common OEM requests. Send your artwork and we confirm the mock-up before production.
How fast can I get a sample of the H-X3 DMX?
Sample orders start from 1 piece. Standard models usually ship within 15–30 days depending on model and quantity, and every unit passes a 48-hour aging test before packing.
