MODEL H-SW3000

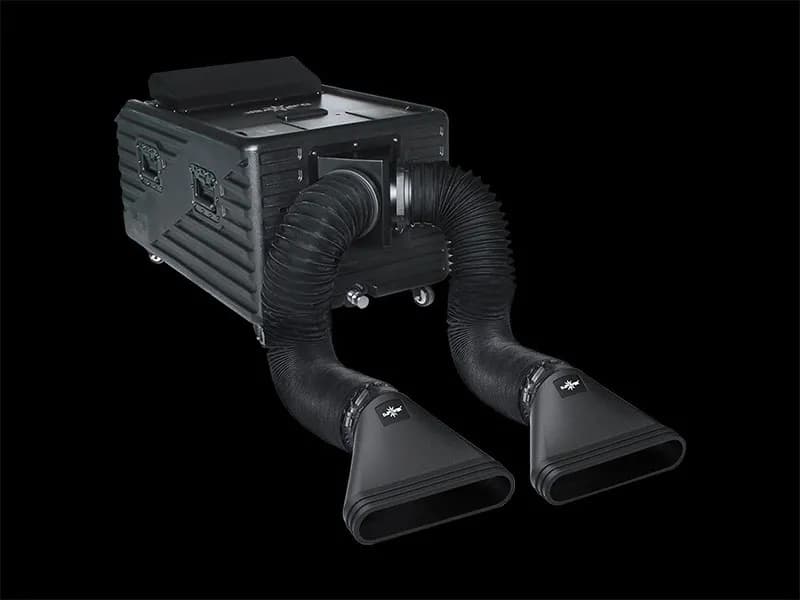

Aqua Low Fog Machine
An Aqua Low Fog Machine with 3,000 W power, 20,000 cuft/min output, DMX512 3-channel control.
- Input voltage220–240 V, 50/60 Hz
- Breaker typeBreaker
- Breaker15 A, 250 V
- Total power consumption3,000 W
- Operating Current11.7
- Power Input ConnectorLockable PowerCon IP65
- Power Output ConnectorLockable PowerCon IP65
- Heat-up timeApprox. 4~5 min
- Heater TypeAluminum Heater Block
- Unit Quantity4pcs
- Power Consumption of each Unit300 W
- Fluid tank capacity3.5 L
- Water Chamber Capacity34 L
- Adjustable outputYes
- Volume Adjustment Level/Range1–100%
- Max output volumeApprox. 20,000 cuft/min
- Max CoverageApprox. 400 ㎡
- Fluid Consumption @ full volumeApprox. 29 min/L
- Water Consumption @ full volumeApprox. 8.9 min/L
- Continuous OutputYes
- Max continuous output level1
- Fully-loaded Cumulative Output Duration @ full volumeApprox. 100 min
- On-device controlLCD control board
- Wireless controlNo
- Control protocolDMX-512
- DMX channels3
- Data Connectors3-pin and 5-pin XLR
- IP ratingIP53
- Diversion Hose2 pc, 3 m, 125mm (5 inch)
- Diversion Nozzle125mm (5 inch)
- Flight CaseYes
- Power CordYes
- Wireless Controller ModelNo
- ConsumablePRO-SW/PRO-A/PRO-C/PRO-V and Water
- Net weight46 kg
- Gross weight55.5 kg
- Machine dimensions1012.8 × 504 × 463 mm
- Packing dimensions1095 × 570 × 535 mm
Sample orders from 1 pieceStandard models ship in 15–30 days48-hour aging test1-year warrantyCE & RoHSOEM / ODM welcome
We reply within one business day (GMT+8). WhatsApp is the fastest channel.
Full Specifications
H-SW3000 datasheet
| Model | H-SW3000 |
| Input voltage | 220–240 V, 50/60 Hz |
| Breaker type | Breaker |
| Breaker | 15 A, 250 V |
| Total power consumption | 3,000 W |
| Heat-up time | Approx. 4~5 min |
| Heater Type | Aluminum Heater Block |
| Unit Quantity | 4pcs |
| Power Consumption of each Unit | 300 W |
| Fluid tank capacity | 3.5 L |
| Water Chamber Capacity | 34 L |
| Adjustable output | Yes |
| Volume Adjustment Level/Range | 1–100% |
| Max output volume | Approx. 20,000 cuft/min |
| Max Coverage | Approx. 400 ㎡ |
| Fluid Consumption @ full volume | Approx. 29 min/L |
| Water Consumption @ full volume | Approx. 8.9 min/L |
| Continuous Output | Yes |
| Max continuous output level | 1 |
| Fully-loaded Cumulative Output Duration @ full volume | Approx. 100 min |
| Diversion Hose | 2 pc, 3 m, 125mm (5 inch) |
| Diversion Nozzle | 125mm (5 inch) |
| Flight Case | Yes |
| Power Cord | Yes |
| Consumable | PRO-SW/PRO-A/PRO-C/PRO-V and Water |
| Machine dimensions | 1012.8 × 504 × 463 mm |
| Power Input Connector | Lockable PowerCon IP65 |
| Power Output Connector | Lockable PowerCon IP65 |
| On-device control | LCD control board |
| Wireless control | No |
| Control protocol | DMX-512 |
| DMX channels | 3 |
| Data Connectors | 3-pin and 5-pin XLR |
| Wireless Controller Model | No |
| Operating Current | 11.7 |
| IP rating | IP53 |
| Net weight | 46 kg |
| Gross weight | 55.5 kg |
| Packing dimensions | 1095 × 570 × 535 mm |
Compare with
Side-by-side specifications
Pick up to 3 models to compare against H-SW3000. Full datasheets are one click away.
| Specification |  H-SW3000This model | H-K1Pro Auto Smoke Ring Machine |  H-1 PLUS2-in-1 Moving-Head Fog Jet |
|---|---|---|---|
| Type | — | Auto smoke ring machine | Moving head super-jet fog machine |
| Light source | — | RGB 3-in-1 LED ring | 24 × 5 W, RGBA |
| Control protocol | DMX-512 | DMX512, 3 channels | DMX-512, 10 channels |
| Input voltage | 220–240 V, 50/60 Hz | AC 220–240 V, 50/60 Hz | 220–240 V, 50/60 Hz |
Features
What the H-SW3000 does on your stage
Rain‑proof and dust‑proof structural
Rain‑proof and dust‑proof structural design, with IP53 rating, suitable for outdoor use.
Integrated in a plastic
Integrated in a plastic case (with castors), applicable for touring.
Drain holes design for water
Drain holes design for water tank, free from leakage.
Safety protection
Advanced No-Fluid protection.
Applications & Downloads
Where it works
Accessorize the rig
In the box & often bought together
After-sales & warranty
Backed before and after the show
1-year warranty
Fixtures carry a 1-year warranty; per-model terms are stated in your quotation and order confirmation.
Spare modules stocked
We stock spare modules for all current models — ship them with future orders or separately by express.
Remote technical support
DMX mapping advice, programming help and repair guidance by video call, on WhatsApp or email.
48-hour aging test
Every unit passes a 48-hour aging test and full-function inspection before packing.
Full purchasing, OEM and after-sales answers in the FAQ.
Good to know
H-SW3000 — quick answers
What voltage does the H-SW3000 require?
The Aqua Low Fog Machine accepts 220–240 V, 50/60 Hz. We build for export markets — tell us your target market in the inquiry and we confirm the matching power configuration before dispatch.
Can I order the H-SW3000 with my own logo (OEM/ODM)?
Yes — logo, startup screen, nameplate and packaging are the most common OEM requests. Send your artwork and we confirm the mock-up before production.
How fast can I get a sample of the H-SW3000?
Sample orders start from 1 piece. Standard models usually ship within 15–30 days depending on model and quantity, and every unit passes a 48-hour aging test before packing.
