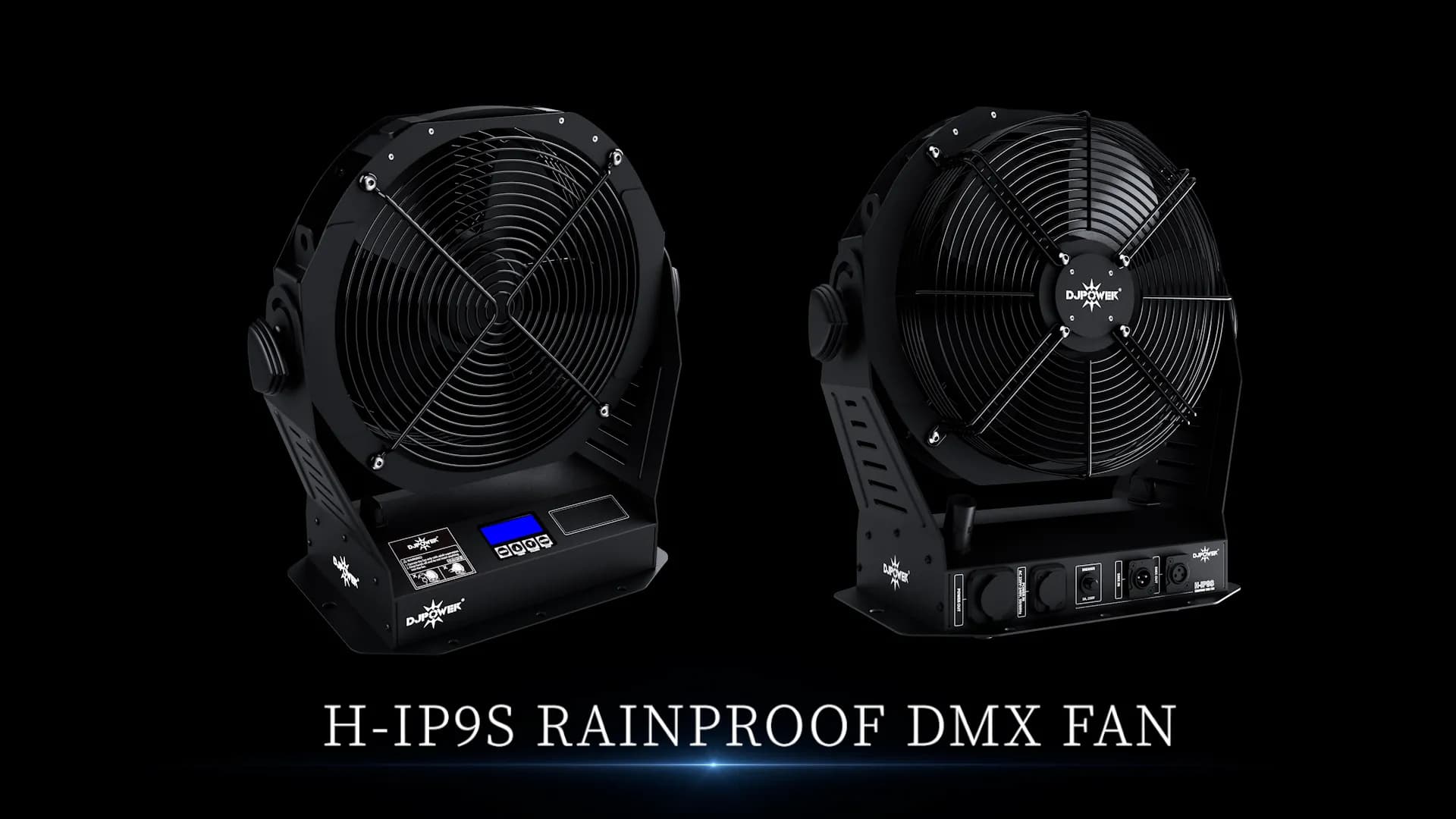

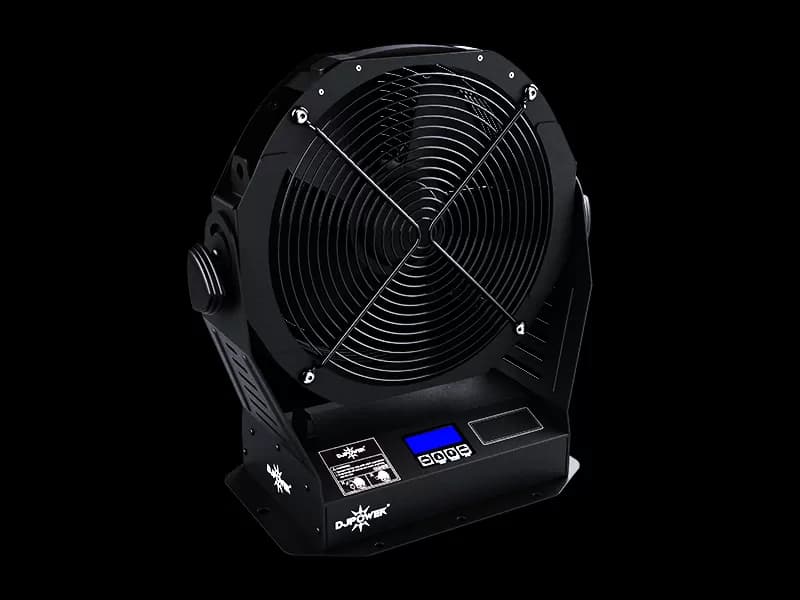

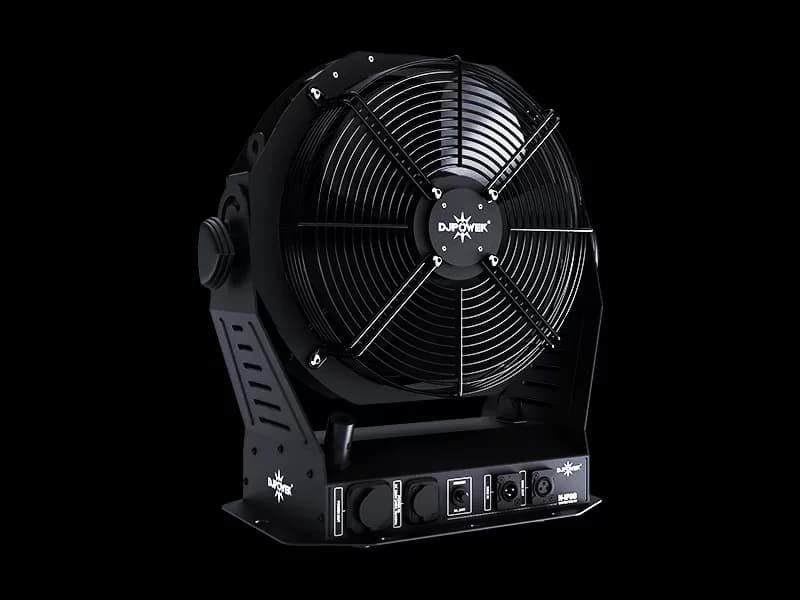

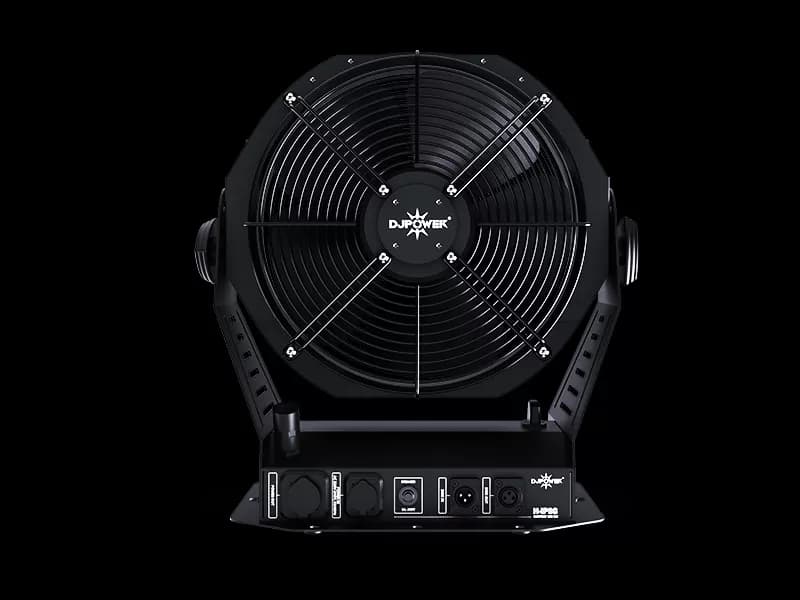

MODEL H-IP9S
Rainproof DMX Fan
A Rainproof DMX Fan with 210 W power, DMX512 1-channel control, IP 55 rated housing.
- Input voltageAC 220–240 V, 50/60 Hz
- Current Limiter3 A/250 V
- Total power consumption210 W
- IP ratingIP 55
- Wind angle0-270°
- Wind speed adjustmentApprox. 2,700 m³/H
- Fan speedApprox. 0-2,200 r/min
- HorizontalYes
- InclinedNo
- Side layNo
- Hang Upside DownYes
- Rigging & TrussingYes
- On-device controlLCD Control board
- Wireless controlW-7
- Wired controlNo
- Control protocolDMX512
- DMX channels1
- Net weight11.3 kg
- Gross weight14.2 kg
- Machine dimensions448 × 250 × 473.5 mm
- Packing dimensions533 × 453 × 418 mm
Sample orders from 1 pieceStandard models ship in 15–30 days48-hour aging test1-year warrantyCE & RoHSOEM / ODM welcome
We reply within one business day (GMT+8). WhatsApp is the fastest channel.
Full Specifications
H-IP9S datasheet
| Model | H-IP9S |
| Input voltage | AC 220–240 V, 50/60 Hz |
| Current Limiter | 3 A/250 V |
| Total power consumption | 210 W |
| Wind angle | 0-270° |
| Wind speed adjustment | Approx. 2,700 m³/H |
| Horizontal | Yes |
| Inclined | No |
| Side lay | No |
| Hang Upside Down | Yes |
| Rigging & Trussing | Yes |
| Machine dimensions | 448 × 250 × 473.5 mm |
| Fan speed | Approx. 0-2,200 r/min |
| On-device control | LCD Control board |
| Wireless control | W-7 |
| Wired control | No |
| Control protocol | DMX512 |
| DMX channels | 1 |
| IP rating | IP 55 |
| Net weight | 11.3 kg |
| Gross weight | 14.2 kg |
| Packing dimensions | 533 × 453 × 418 mm |
Compare with
Side-by-side specifications
Pick up to 3 models to compare against H-IP9S. Full datasheets are one click away.
| Specification |  H-IP9SThis model |  H-K1Pro Auto Smoke Ring Machine |  H-1 PLUS2-in-1 Moving-Head Fog Jet |
|---|---|---|---|
| Type | — | Auto smoke ring machine | Moving head super-jet fog machine |
| Light source | — | RGB 3-in-1 LED ring | 24 × 5 W, RGBA |
| Control protocol | DMX512 | DMX512, 3 channels | DMX-512, 10 channels |
| Input voltage | AC 220–240 V, 50/60 Hz | AC 220–240 V, 50/60 Hz | 220–240 V, 50/60 Hz |
See it in action
Product demo
Features
What the H-IP9S does on your stage
Using stainless steel and the design
Using stainless steel and the design of waterproof construction. IP55 waterproof rate.
DMX control
DMX and wireless control.
Adjustable wind speed, wind
Adjustable wind speed, wind outlet angle 270°adjustable; It can be Inclined used and upside down used.
Professional special auxiliary equipment
Professional special auxiliary equipment, used with snow or bubble machine, snow or bubble can spread further and higher.
Applications & Downloads
Where it works
Accessorize the rig
In the box & often bought together
After-sales & warranty
Backed before and after the show
1-year warranty
Fixtures carry a 1-year warranty; per-model terms are stated in your quotation and order confirmation.
Spare modules stocked
We stock spare modules for all current models — ship them with future orders or separately by express.
Remote technical support
DMX mapping advice, programming help and repair guidance by video call, on WhatsApp or email.
48-hour aging test
Every unit passes a 48-hour aging test and full-function inspection before packing.
Full purchasing, OEM and after-sales answers in the FAQ.
Good to know
H-IP9S — quick answers
What voltage does the H-IP9S require?
The Rainproof DMX Fan accepts AC 220–240 V, 50/60 Hz. We build for export markets — tell us your target market in the inquiry and we confirm the matching power configuration before dispatch.
Can I order the H-IP9S with my own logo (OEM/ODM)?
Yes — logo, startup screen, nameplate and packaging are the most common OEM requests. Send your artwork and we confirm the mock-up before production.
How fast can I get a sample of the H-IP9S?
Sample orders start from 1 piece. Standard models usually ship within 15–30 days depending on model and quantity, and every unit passes a 48-hour aging test before packing.
