MODEL H-IP3000
Rainproof Dual Nozzle Fog Machine
A Rainproof Dual Nozzle Fog Machine with 2,500 W power, 60,000 cuft/min output, 8 m throw.
- Input voltage220–240 V, 50/60 Hz
- Breaker16 A, 250 V
- Breaker typeBreaker
- Total power consumption2,500 W
- Heat-up timeApprox. 9.0 min
- Fluid tank capacity5 L
- Adjustable outputYes
- Max output volumeApprox. 60,000 cuft/min
- Max output distanceApprox. 8 m
- Fluid consumptionApprox. 4.8 min/L
- Maximum Continuous DurationApprox. 45 sec
- Continuous OutputNo
- Fully-loaded Cumulative Output Duration @ full volumeApprox. 24 min
- HorizontalYes
- InclinedNo
- VerticalNo
- Hang Upside DownNo
- Rigging & TrussingYes
- On-device controlLCD control board
- Wireless controlNo
- Wired controlNo
- Control protocolDMX-512
- DMX channels1
- IP ratingIP 53
- ConsumablePRO-A or PRO-V
- Net weight23 kg
- Gross weight25.8 kg
- Machine dimensions525 × 322 × 260 mm
- Packing dimensions848 × 400 × 350 mm
Sample orders from 1 pieceStandard models ship in 15–30 days48-hour aging test1-year warrantyCE & RoHSOEM / ODM welcome
We reply within one business day (GMT+8). WhatsApp is the fastest channel.
Full Specifications
H-IP3000 datasheet
| Model | H-IP3000 |
| Input voltage | 220–240 V, 50/60 Hz |
| Breaker | 16 A, 250 V |
| Breaker type | Breaker |
| Total power consumption | 2,500 W |
| Heat-up time | Approx. 9.0 min |
| Fluid tank capacity | 5 L |
| Adjustable output | Yes |
| Max output volume | Approx. 60,000 cuft/min |
| Max output distance | Approx. 8 m |
| Fluid consumption | Approx. 4.8 min/L |
| Maximum Continuous Duration | Approx. 45 sec |
| Continuous Output | No |
| Fully-loaded Cumulative Output Duration @ full volume | Approx. 24 min |
| Horizontal | Yes |
| Inclined | No |
| Vertical | No |
| Hang Upside Down | No |
| Rigging & Trussing | Yes |
| Consumable | PRO-A or PRO-V |
| Machine dimensions | 525 × 322 × 260 mm |
| On-device control | LCD control board |
| Wireless control | No |
| Wired control | No |
| Control protocol | DMX-512 |
| DMX channels | 1 |
| IP rating | IP 53 |
| Net weight | 23 kg |
| Gross weight | 25.8 kg |
| Packing dimensions | 848 × 400 × 350 mm |
Compare with
Side-by-side specifications
Pick up to 3 models to compare against H-IP3000. Full datasheets are one click away.
| Specification |  H-IP3000This model |  H-K1Pro Auto Smoke Ring Machine |  H-1 PLUS2-in-1 Moving-Head Fog Jet |
|---|---|---|---|
| Type | — | Auto smoke ring machine | Moving head super-jet fog machine |
| Light source | — | RGB 3-in-1 LED ring | 24 × 5 W, RGBA |
| Control protocol | DMX-512 | DMX512, 3 channels | DMX-512, 10 channels |
| Input voltage | 220–240 V, 50/60 Hz | AC 220–240 V, 50/60 Hz | 220–240 V, 50/60 Hz |
See it in action
Product demo
Features
What the H-IP3000 does on your stage

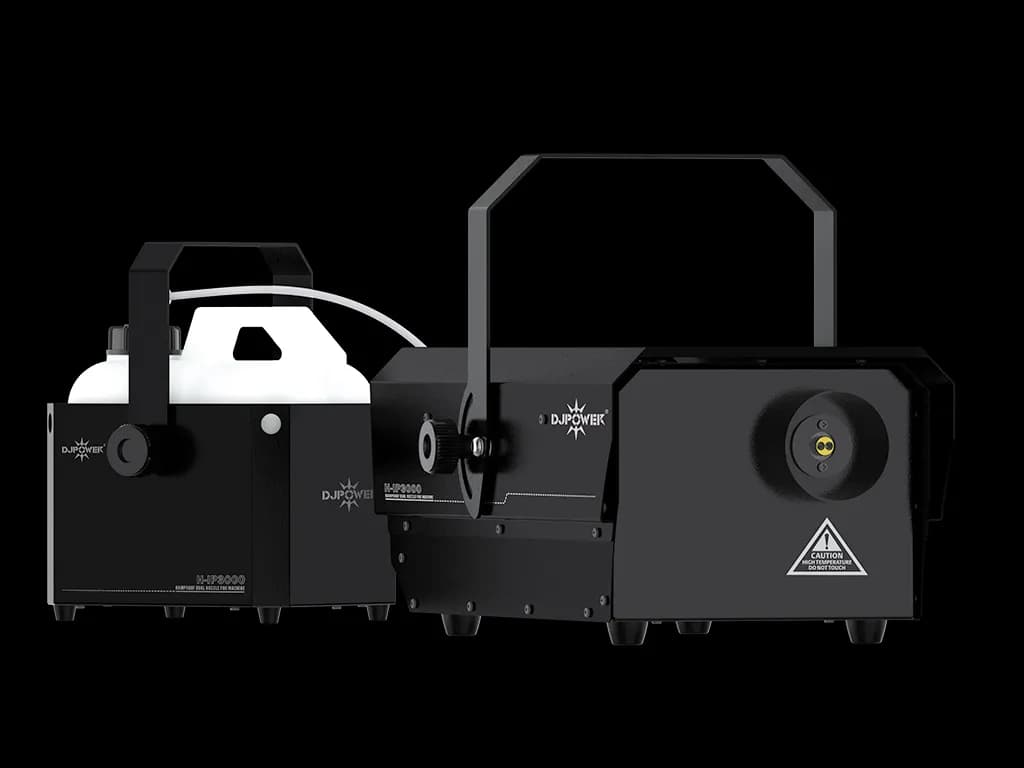

Stainless steel case, interior
Stainless steel case, interior and exterior rain proof and moisture-proof structure design,IP53 waterproof grade.
Output performance
Dual nozzle fog output structure, double fog output and more stable performance.
Heating system
High quality heater can stably output dry and pure fog in outdoor environment.
Design of the external

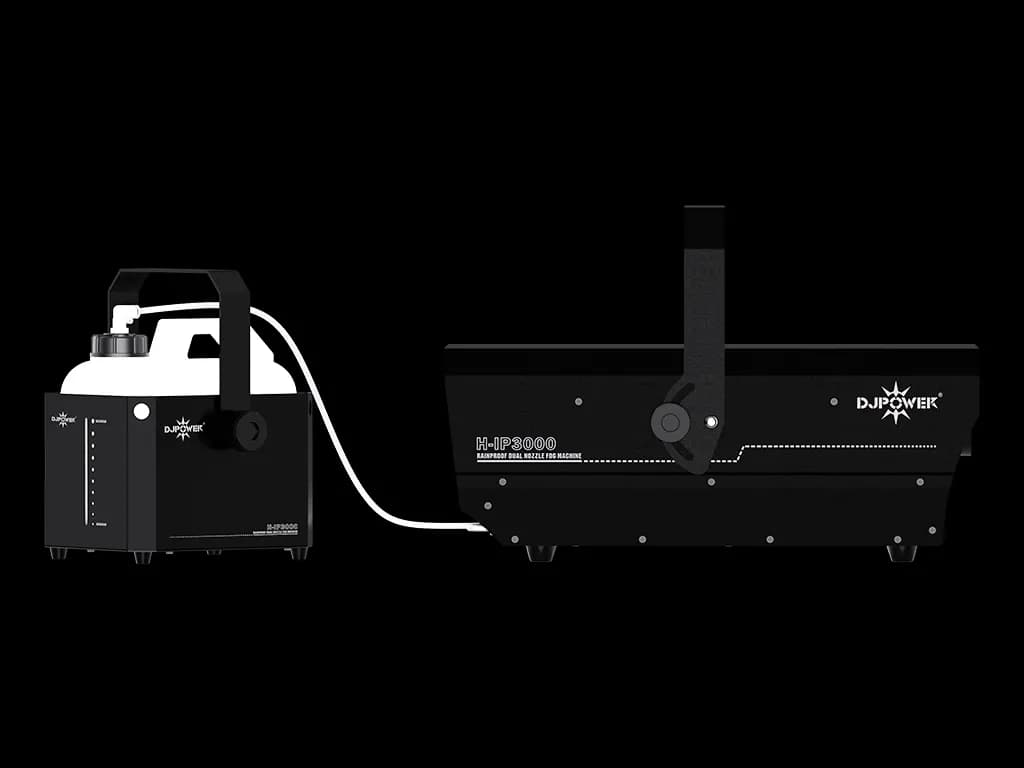

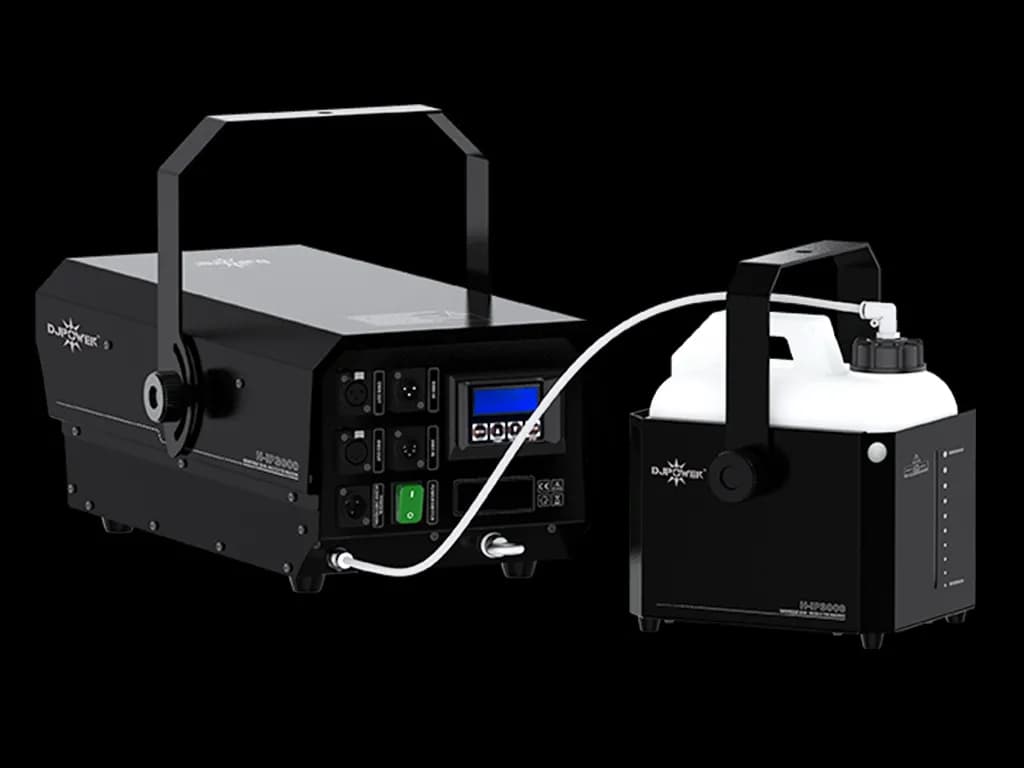

The design of the external oil bottle is equipped with two 10meters oil pipes for easy refueling.
Applications & Downloads
Where it works
Accessorize the rig
In the box & often bought together
After-sales & warranty
Backed before and after the show
1-year warranty
Fixtures carry a 1-year warranty; per-model terms are stated in your quotation and order confirmation.
Spare modules stocked
We stock spare modules for all current models — ship them with future orders or separately by express.
Remote technical support
DMX mapping advice, programming help and repair guidance by video call, on WhatsApp or email.
48-hour aging test
Every unit passes a 48-hour aging test and full-function inspection before packing.
Full purchasing, OEM and after-sales answers in the FAQ.
Good to know
H-IP3000 — quick answers
What voltage does the H-IP3000 require?
The Rainproof Dual Nozzle Fog Machine accepts 220–240 V, 50/60 Hz. We build for export markets — tell us your target market in the inquiry and we confirm the matching power configuration before dispatch.
Can I order the H-IP3000 with my own logo (OEM/ODM)?
Yes — logo, startup screen, nameplate and packaging are the most common OEM requests. Send your artwork and we confirm the mock-up before production.
How fast can I get a sample of the H-IP3000?
Sample orders start from 1 piece. Standard models usually ship within 15–30 days depending on model and quantity, and every unit passes a 48-hour aging test before packing.
