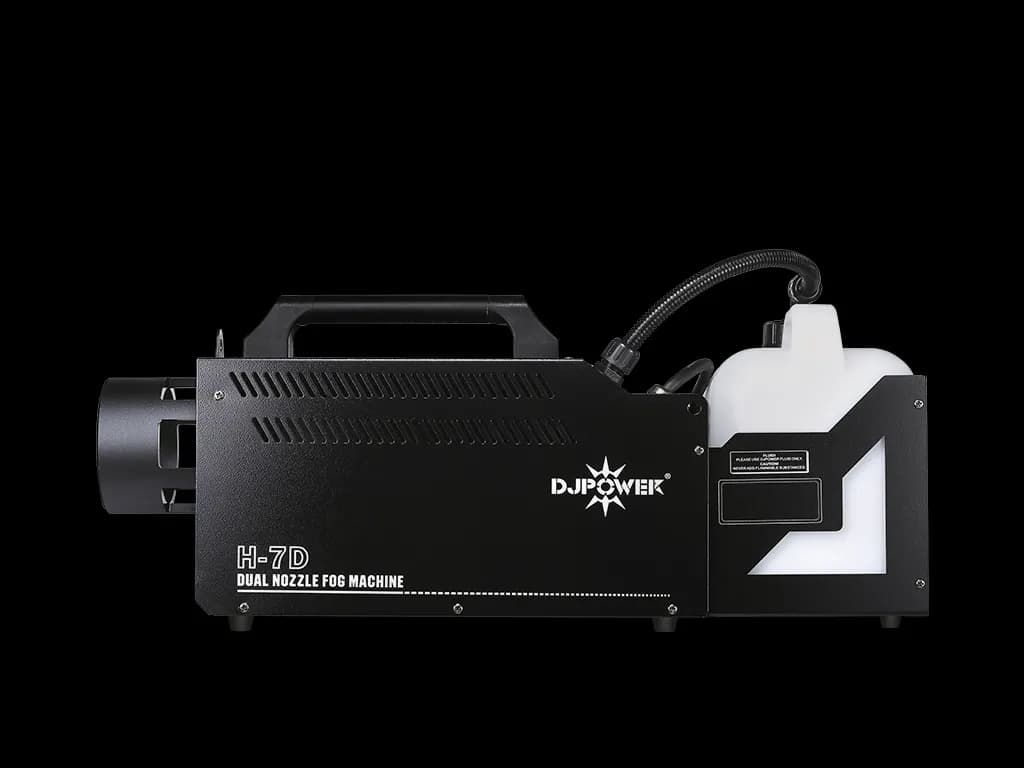

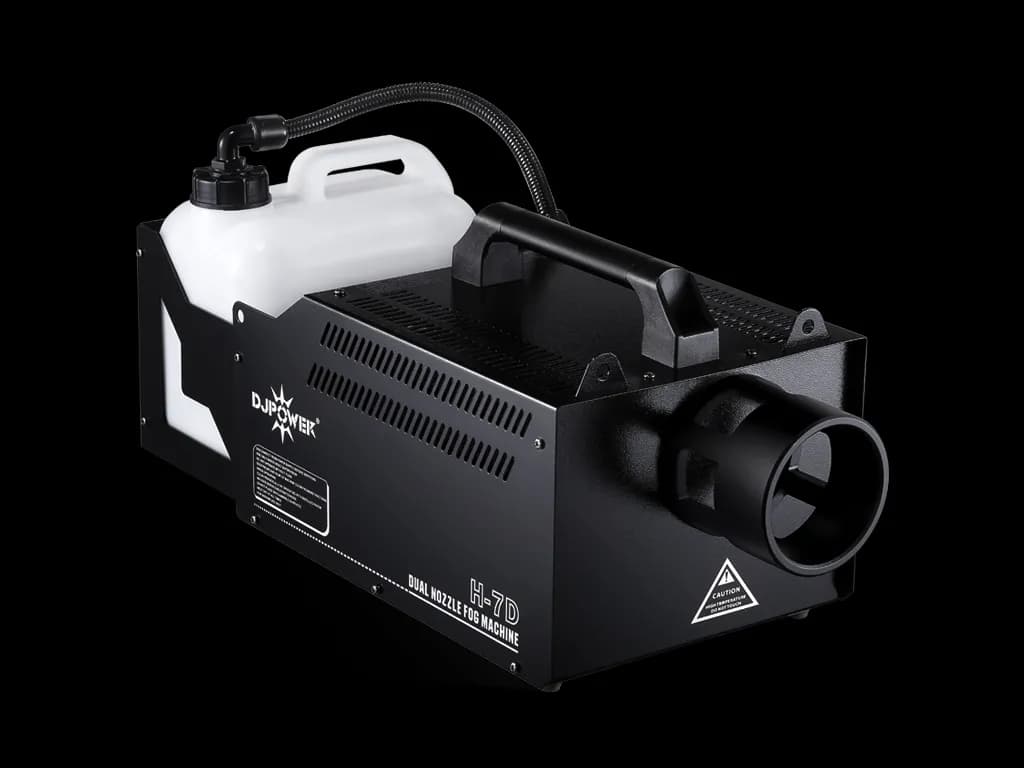

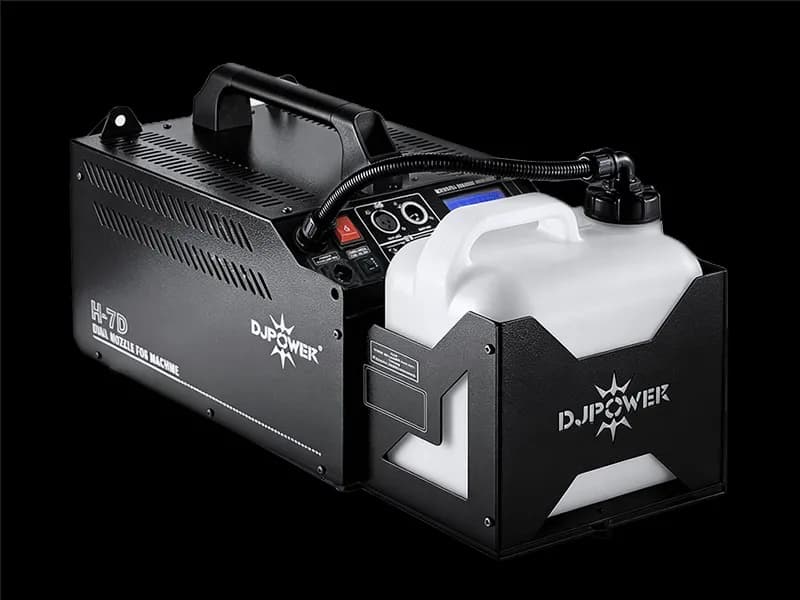

MODEL H-7D
Dual Nozzle Fog Machine
A Dual Nozzle Fog Machine with 2,500 W power, 60,000 cuft/min output, 8 m throw.
- Input voltage220–240 V, 50/60 Hz
- Breaker typeBreaker
- Breaker16 A, 250 V
- Total power consumption2,500 W
- Operating Current10.9
- Power Input ConnectorHard-wired
- Heat-up timeApprox. 9.0 min
- Heater TypeAluminum Heater Block
- Fluid tank capacity5 L
- Adjustable outputYes
- Volume Adjustment Level/Range1–100%
- Max output volumeApprox. 60,000 cuft/min
- Max output distanceApprox. 8 m
- Fluid Consumption @ full volumeApprox. 4.8 min/L
- Maximum Continuous Duration @ full volumeApprox. 45 sec
- Continuous OutputNo
- Max continuous output level100%
- Fully-loaded Cumulative Output Duration @ full volumeApprox. 24 min

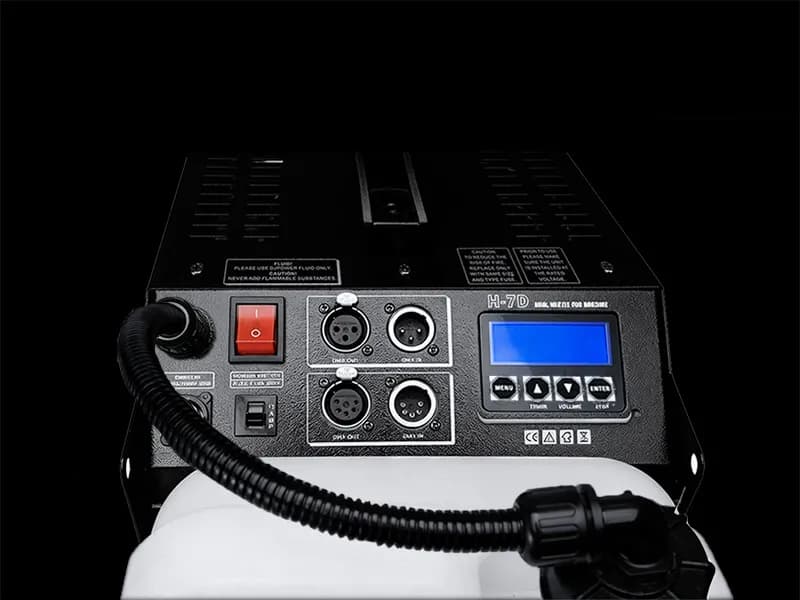

- On-device controlLCD control board
- Wireless controlNo
- Wired controlNo
- Control protocolDMX-512
- DMX channels1
- Data Connectors3-pin and 5-pin XLR
- Power CordYes
- Wireless Controller ModelNo
- Wired Controller ModelNo
- ConsumablePRO-V Fog Fluid
- Net weight16 kg
- Gross weight19 kg
- Machine dimensions595 × 243 × 270 mm
- Packing dimensions723 × 368 × 353 mm
Sample orders from 1 pieceStandard models ship in 15–30 days48-hour aging test1-year warrantyCE & RoHSOEM / ODM welcome
We reply within one business day (GMT+8). WhatsApp is the fastest channel.
Full Specifications
H-7D datasheet
| Model | H-7D |
| Input voltage | 220–240 V, 50/60 Hz |
| Breaker type | Breaker |
| Breaker | 16 A, 250 V |
| Total power consumption | 2,500 W |
| Heat-up time | Approx. 9.0 min |
| Heater Type | Aluminum Heater Block |
| Fluid tank capacity | 5 L |
| Adjustable output | Yes |
| Volume Adjustment Level/Range | 1–100% |
| Max output volume | Approx. 60,000 cuft/min |
| Max output distance | Approx. 8 m |
| Fluid Consumption @ full volume | Approx. 4.8 min/L |
| Maximum Continuous Duration @ full volume | Approx. 45 sec |
| Continuous Output | No |
| Max continuous output level | 100% |
| Fully-loaded Cumulative Output Duration @ full volume | Approx. 24 min |
| Power Cord | Yes |
| Consumable | PRO-V Fog Fluid |
| Machine dimensions | 595 × 243 × 270 mm |
| Power Input Connector | Hard-wired |
| On-device control | LCD control board |
| Wireless control | No |
| Wired control | No |
| Control protocol | DMX-512 |
| DMX channels | 1 |
| Data Connectors | 3-pin and 5-pin XLR |
| Wireless Controller Model | No |
| Wired Controller Model | No |
| Operating Current | 10.9 |
| Net weight | 16 kg |
| Gross weight | 19 kg |
| Packing dimensions | 723 × 368 × 353 mm |
Compare with
Side-by-side specifications
Pick up to 3 models to compare against H-7D. Full datasheets are one click away.
| Specification |  H-7DThis model |  H-K1Pro Auto Smoke Ring Machine |  H-1 PLUS2-in-1 Moving-Head Fog Jet |
|---|---|---|---|
| Type | — | Auto smoke ring machine | Moving head super-jet fog machine |
| Light source | — | RGB 3-in-1 LED ring | 24 × 5 W, RGBA |
| Control protocol | DMX-512 | DMX512, 3 channels | DMX-512, 10 channels |
| Input voltage | 220–240 V, 50/60 Hz | AC 220–240 V, 50/60 Hz | 220–240 V, 50/60 Hz |
See it in action
Product demo
Features
What the H-7D does on your stage
Output performance
Available for timing, output 1-100% precisely adjustable.
Output performance
100% output—45 seconds continuous work.
Output performance
Faster and longer distance output.
Output performance
Dual nozzle fog output system, twice the output and more stable.
Applications & Downloads
Where it works
Accessorize the rig
In the box & often bought together
After-sales & warranty
Backed before and after the show
1-year warranty
Fixtures carry a 1-year warranty; per-model terms are stated in your quotation and order confirmation.
Spare modules stocked
We stock spare modules for all current models — ship them with future orders or separately by express.
Remote technical support
DMX mapping advice, programming help and repair guidance by video call, on WhatsApp or email.
48-hour aging test
Every unit passes a 48-hour aging test and full-function inspection before packing.
Full purchasing, OEM and after-sales answers in the FAQ.
Good to know
H-7D — quick answers
What voltage does the H-7D require?
The Dual Nozzle Fog Machine accepts 220–240 V, 50/60 Hz. We build for export markets — tell us your target market in the inquiry and we confirm the matching power configuration before dispatch.
Can I order the H-7D with my own logo (OEM/ODM)?
Yes — logo, startup screen, nameplate and packaging are the most common OEM requests. Send your artwork and we confirm the mock-up before production.
How fast can I get a sample of the H-7D?
Sample orders start from 1 piece. Standard models usually ship within 15–30 days depending on model and quantity, and every unit passes a 48-hour aging test before packing.
