MODEL H-4000S
Wave Haze Machine
A Wave Haze Machine with 3,000 W power, 55,000 cuft/min output, 10 m (5 s) throw.
- Input voltage220–240 V, 50/60 Hz
- Breaker typeBreaker
- Breaker15 A, 250 V
- Total power consumption3,000 W
- Operating Current12.6
- Power Input ConnectorLockable PowerCon
- Heat-up timeApprox. 9 min
- Heater TypeAluminum Heater Block
- Fluid tank capacity5 L × 2
- Adjustable outputYes
- Volume Adjustment Level/Range1–100%
- Max output volumeApprox. 55,000 cuft/min
- Max output distanceApprox. 10 m (5 s)
- Max continuous outputApprox. 45 s (100% output)
- Max CoverageApprox. 600 ㎡
- Fluid Consumption @ full volumeApprox. 4 min/L
- Maximum Continuous Duration @ full volumeUnlimited
- Continuous OutputYes
- Max continuous output level20
- Fully-loaded Cumulative Output Duration @ full volumeApprox. 40 min
- Consumable Type for Standard Output TestPRO-C/PRO-J
- On-device controlLCD control board
- Wireless controlNo
- Wired controlNo
- Control protocolDMX-512
- DMX channels2
- Data Connectors3-pin and 5-pin XLR
- Flight CaseYes
- Power CordYes
- Wireless Controller ModelNo
- Wired Controller ModelNo
- ConsumablePRO-C or PRO-A Haze Fluid
- Net weight73 kg
- Gross weight75.4 kg
- Machine dimensions777.3 × 509.8× 800 mm
- Packing dimensions820 × 565 × 810 mm
Sample orders from 1 pieceStandard models ship in 15–30 days48-hour aging test1-year warrantyCE & RoHSOEM / ODM welcome
We reply within one business day (GMT+8). WhatsApp is the fastest channel.
Full Specifications
H-4000S datasheet
| Model | H-4000S |
| Input voltage | 220–240 V, 50/60 Hz |
| Breaker type | Breaker |
| Breaker | 15 A, 250 V |
| Total power consumption | 3,000 W |
| Heat-up time | Approx. 9 min |
| Heater Type | Aluminum Heater Block |
| Fluid tank capacity | 5 L × 2 |
| Adjustable output | Yes |
| Volume Adjustment Level/Range | 1–100% |
| Max output volume | Approx. 55,000 cuft/min |
| Max output distance | Approx. 10 m (5 s) |
| Max continuous output | Approx. 45 s (100% output) |
| Max Coverage | Approx. 600 ㎡ |
| Fluid Consumption @ full volume | Approx. 4 min/L |
| Maximum Continuous Duration @ full volume | Unlimited |
| Continuous Output | Yes |
| Max continuous output level | 20 |
| Fully-loaded Cumulative Output Duration @ full volume | Approx. 40 min |
| Consumable Type for Standard Output Test | PRO-C/PRO-J |
| Flight Case | Yes |
| Power Cord | Yes |
| Consumable | PRO-C or PRO-A Haze Fluid |
| Machine dimensions | 777.3 × 509.8× 800 mm |
| Power Input Connector | Lockable PowerCon |
| On-device control | LCD control board |
| Wireless control | No |
| Wired control | No |
| Control protocol | DMX-512 |
| DMX channels | 2 |
| Data Connectors | 3-pin and 5-pin XLR |
| Wireless Controller Model | No |
| Wired Controller Model | No |
| Operating Current | 12.6 |
| Net weight | 73 kg |
| Gross weight | 75.4 kg |
| Packing dimensions | 820 × 565 × 810 mm |
Compare with
Side-by-side specifications
Pick up to 3 models to compare against H-4000S. Full datasheets are one click away.
| Specification |  H-4000SThis model |  H-K1Pro Auto Smoke Ring Machine |  H-1 PLUS2-in-1 Moving-Head Fog Jet |
|---|---|---|---|
| Type | — | Auto smoke ring machine | Moving head super-jet fog machine |
| Light source | — | RGB 3-in-1 LED ring | 24 × 5 W, RGBA |
| Control protocol | DMX-512 | DMX512, 3 channels | DMX-512, 10 channels |
| Input voltage | 220–240 V, 50/60 Hz | AC 220–240 V, 50/60 Hz | 220–240 V, 50/60 Hz |
See it in action
Product demo
Features
What the H-4000S does on your stage
Fan system
Improved silent fan much quieter.
Ultimate all-in-one fog and haze
Ultimate all-in-one fog and haze machine for professional theatrical effects.
Easy rigging
Creates enormous amounts of fog or fine, long-lasting haze to fill up the venue in minutes.

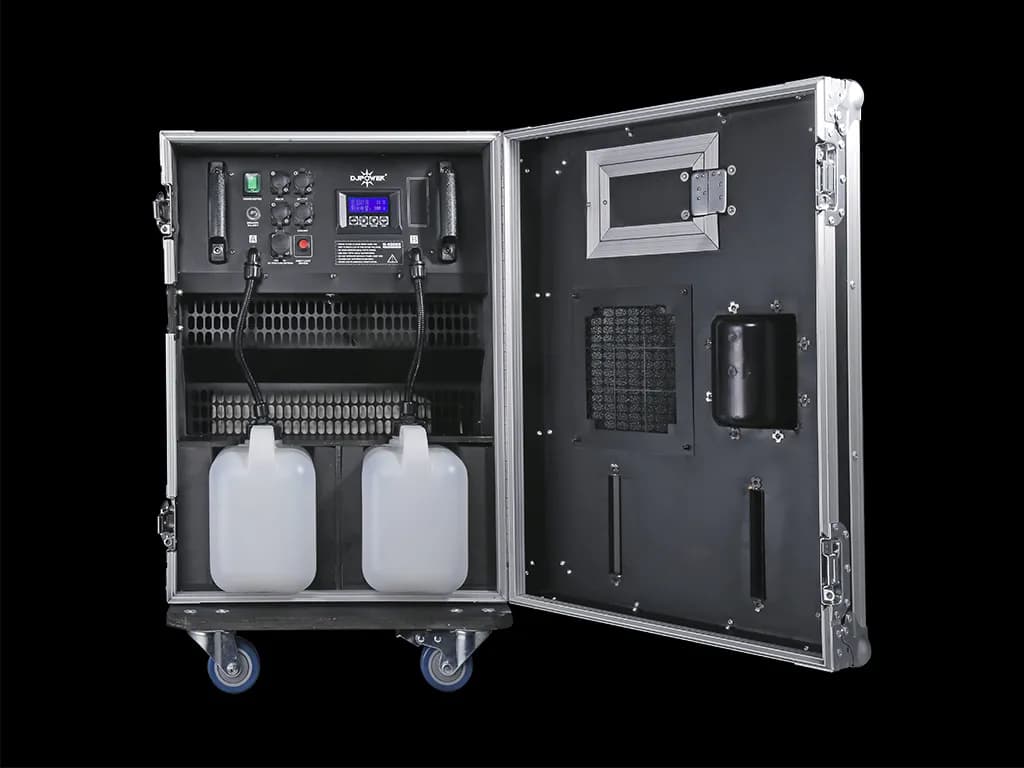

Large compartment fits two
Large compartment fits two 5-liter cans.
Applications & Downloads
Where it works
Accessorize the rig
In the box & often bought together
After-sales & warranty
Backed before and after the show
1-year warranty
Fixtures carry a 1-year warranty; per-model terms are stated in your quotation and order confirmation.
Spare modules stocked
We stock spare modules for all current models — ship them with future orders or separately by express.
Remote technical support
DMX mapping advice, programming help and repair guidance by video call, on WhatsApp or email.
48-hour aging test
Every unit passes a 48-hour aging test and full-function inspection before packing.
Full purchasing, OEM and after-sales answers in the FAQ.
Good to know
H-4000S — quick answers
What voltage does the H-4000S require?
The Wave Haze Machine accepts 220–240 V, 50/60 Hz. We build for export markets — tell us your target market in the inquiry and we confirm the matching power configuration before dispatch.
Can I order the H-4000S with my own logo (OEM/ODM)?
Yes — logo, startup screen, nameplate and packaging are the most common OEM requests. Send your artwork and we confirm the mock-up before production.
How fast can I get a sample of the H-4000S?
Sample orders start from 1 piece. Standard models usually ship within 15–30 days depending on model and quantity, and every unit passes a 48-hour aging test before packing.
