MODEL H-22V

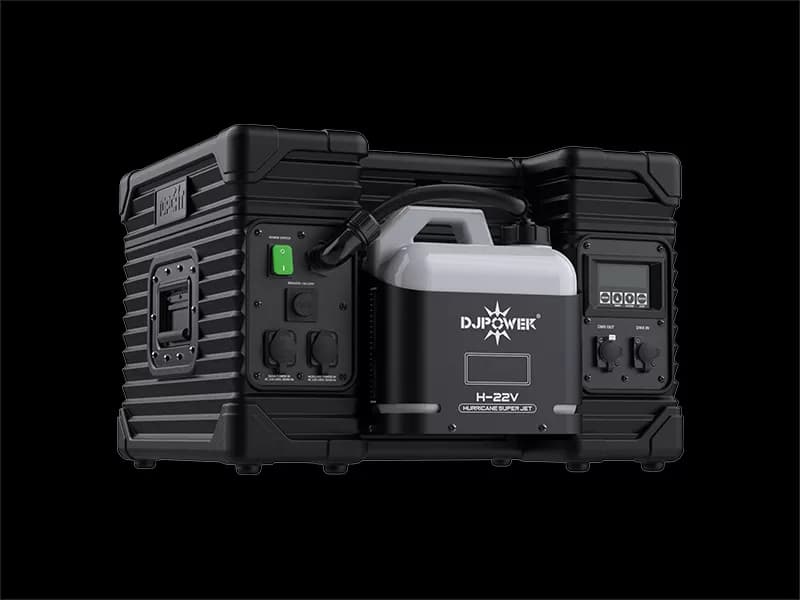

Hurricane Super Jet

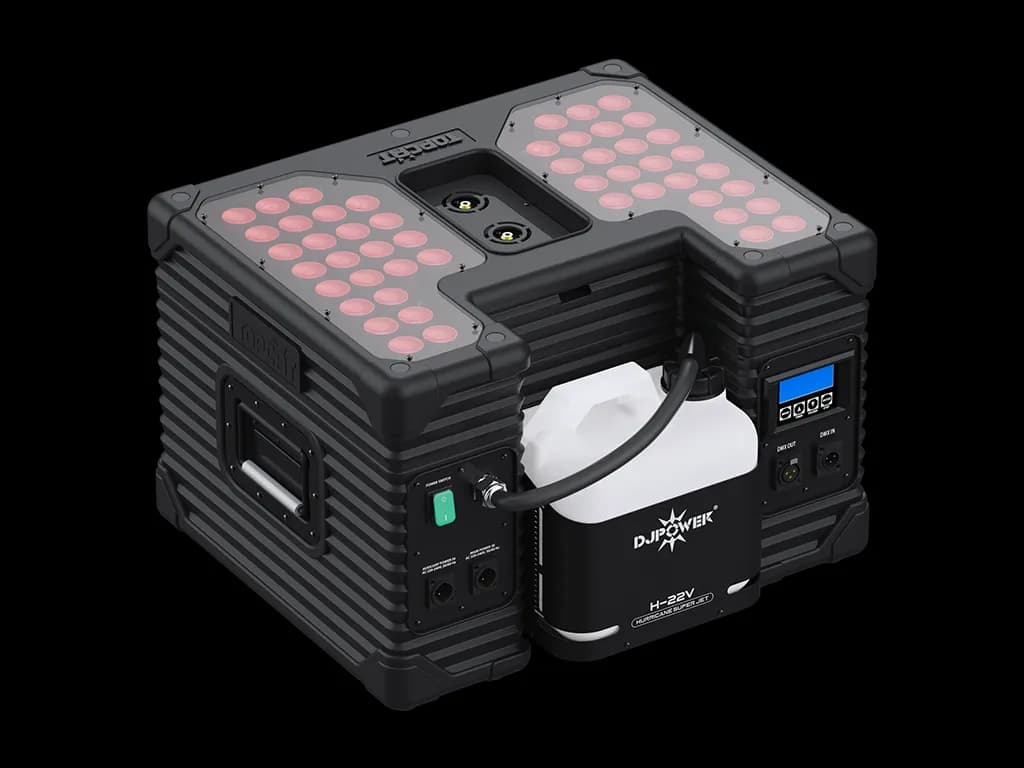

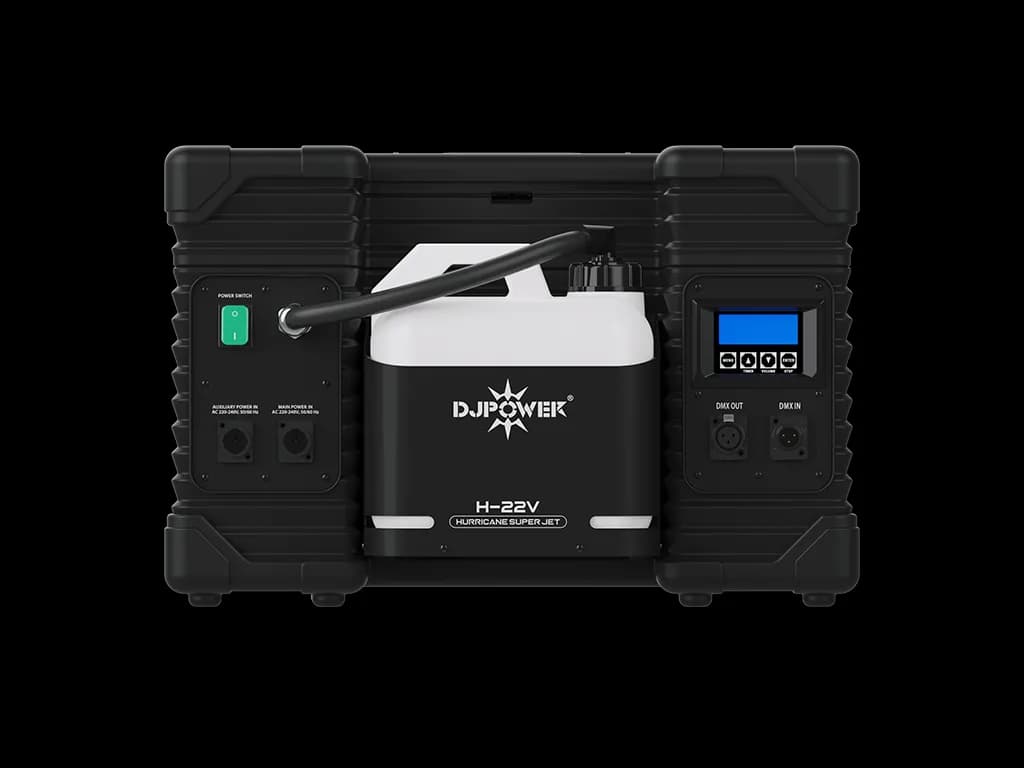

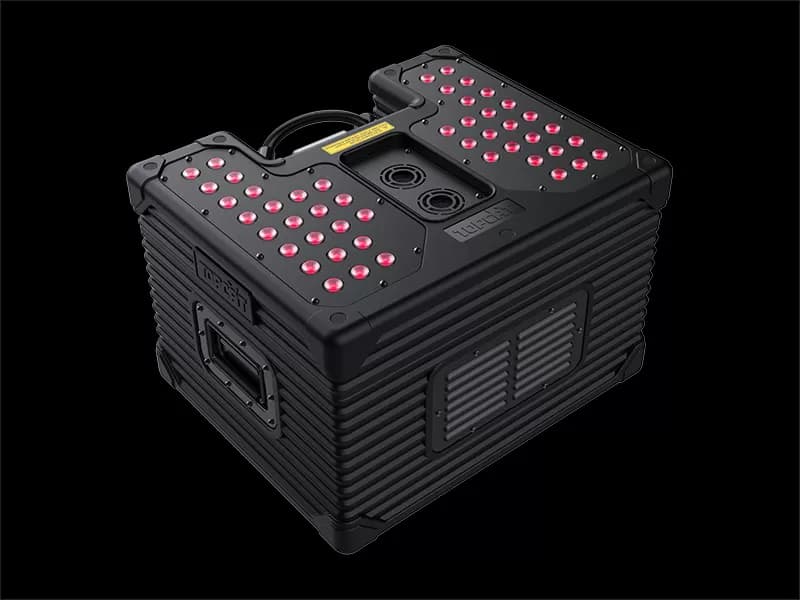

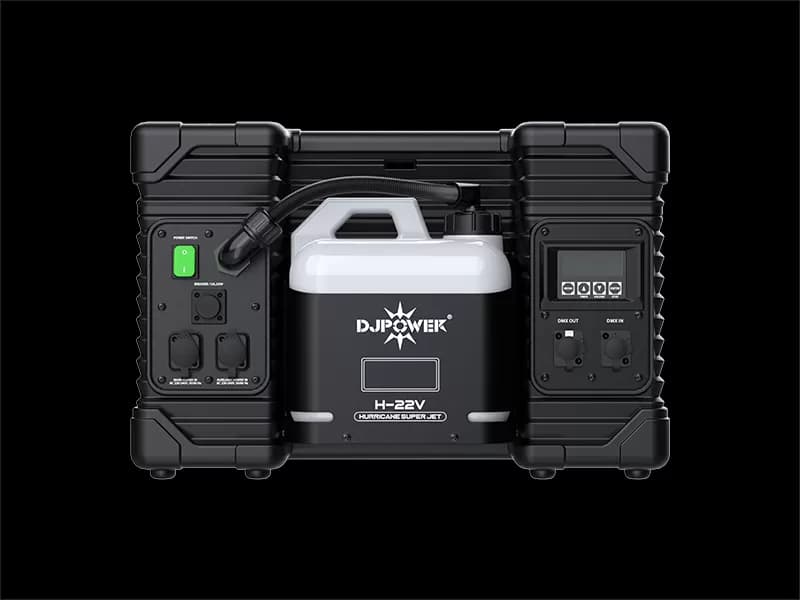

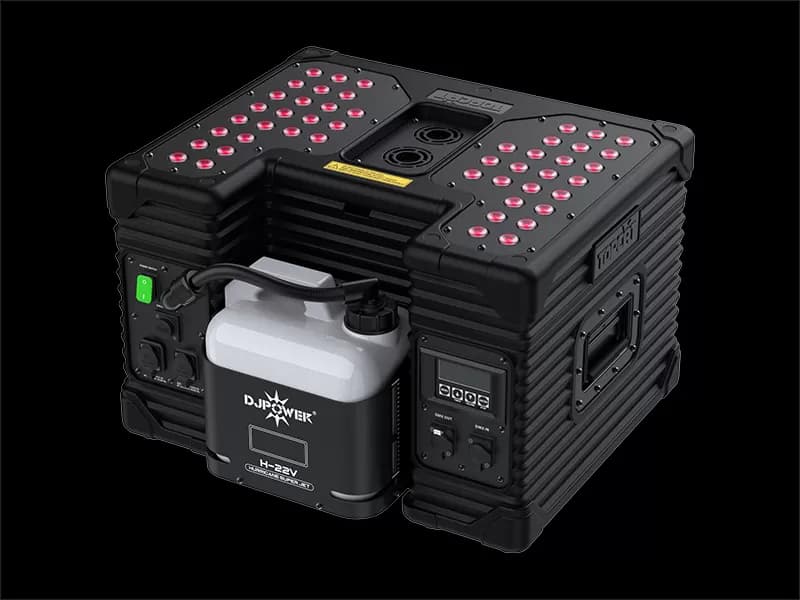

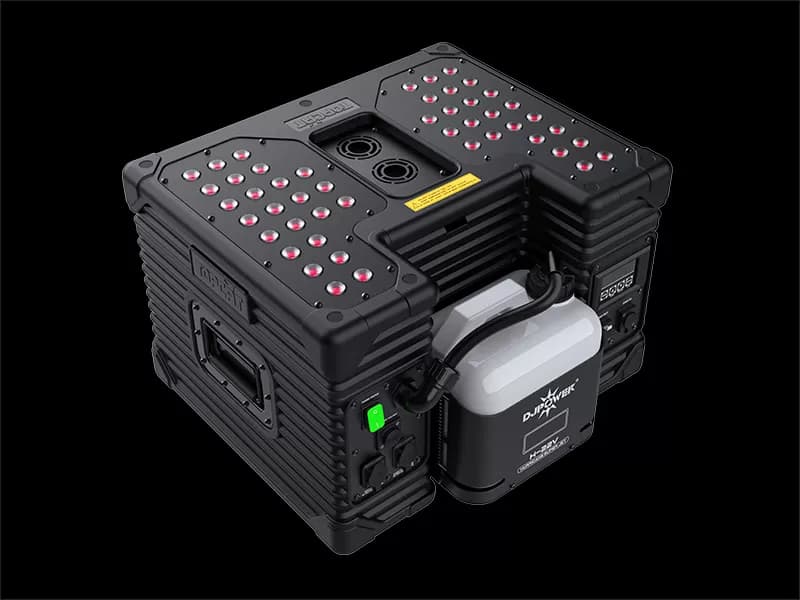

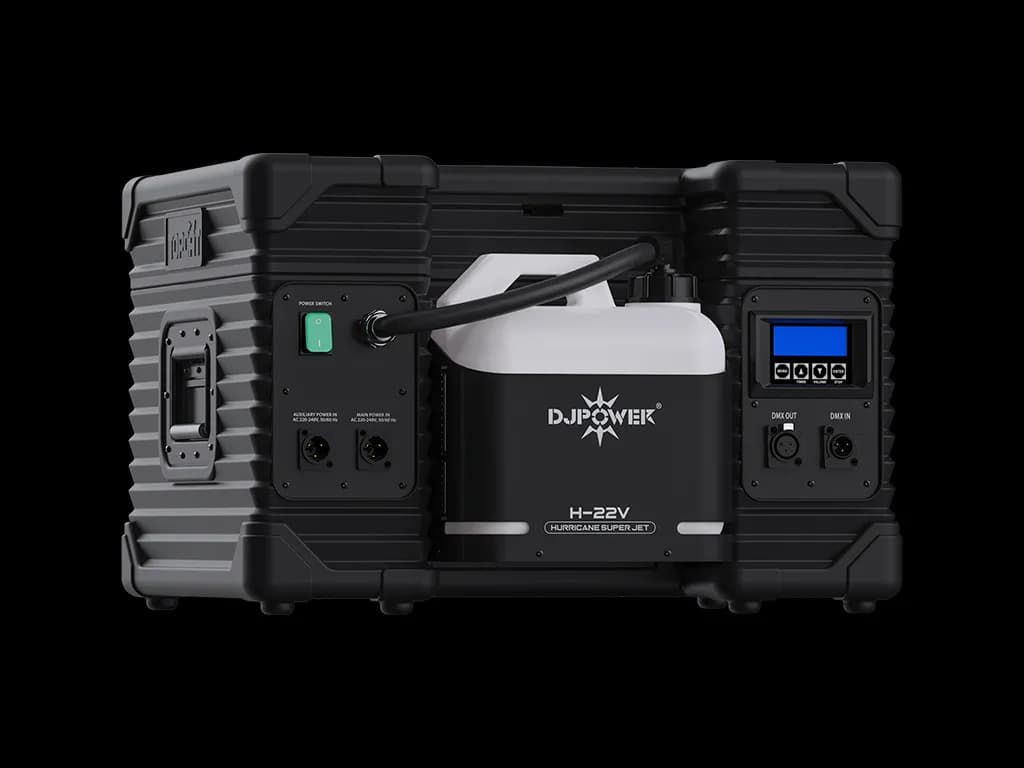

A Hurricane Super Jet with 3,500 W power, 276,000 cuft/min output, 20 m output height.
- Input voltageAC 220–240 V, 50/60 Hz
- Total power consumption3,500 W
- First heat-up timeApprox. 25 min
- Power per LED6 W
- LED quantity48 pcs
- LED colorRGB
- Max output volumeApprox. 276,000 cuft/min
- Max output heightApprox. 20 m
- Fluid Consumption @ full volumeApprox. 0.72 min/L
- Maximum Continuous Duration @ full volumeApprox. 7 s
- On-device controlLCD control board
- Control protocolDMX512/RDM
- DMX channels9
- Fluid tank capacity5 L
- Fully-loaded Cumulative Output Duration @ full volumeApprox. 3.6 min
- ConsumablePRO-V
- Net weight46.5 kg
- Gross weight54.8 kg
- Machine dimensions520 × 483 × 345 mm
- Packing dimensions665 × 630 × 480 mm
Sample orders from 1 pieceStandard models ship in 15–30 days48-hour aging test1-year warrantyCE & RoHSOEM / ODM welcome
We reply within one business day (GMT+8). WhatsApp is the fastest channel.
Full Specifications
H-22V datasheet
| Model | H-22V |
| Input voltage | AC 220–240 V, 50/60 Hz |
| Total power consumption | 3,500 W |
| First heat-up time | Approx. 25 min |
| Power per LED | 6 W |
| LED quantity | 48 pcs |
| Max output volume | Approx. 276,000 cuft/min |
| Max output height | Approx. 20 m |
| Fluid Consumption @ full volume | Approx. 0.72 min/L |
| Maximum Continuous Duration @ full volume | Approx. 7 s |
| Fluid tank capacity | 5 L |
| Fully-loaded Cumulative Output Duration @ full volume | Approx. 3.6 min |
| Consumable | PRO-V |
| Machine dimensions | 520 × 483 × 345 mm |
| LED color | RGB |
| On-device control | LCD control board |
| Control protocol | DMX512/RDM |
| DMX channels | 9 |
| Net weight | 46.5 kg |
| Gross weight | 54.8 kg |
| Packing dimensions | 665 × 630 × 480 mm |
Compare with
Side-by-side specifications
Pick up to 3 models to compare against H-22V. Full datasheets are one click away.
| Specification |  H-22VThis model |  H-K1Pro Auto Smoke Ring Machine |  H-1 PLUS2-in-1 Moving-Head Fog Jet |
|---|---|---|---|
| Type | — | Auto smoke ring machine | Moving head super-jet fog machine |
| Light source | — | RGB 3-in-1 LED ring | 24 × 5 W, RGBA |
| Control protocol | DMX512/RDM | DMX512, 3 channels | DMX-512, 10 channels |
| Input voltage | AC 220–240 V, 50/60 Hz | AC 220–240 V, 50/60 Hz | 220–240 V, 50/60 Hz |
See it in action
Product demo
Features
What the H-22V does on your stage
Rugged housing
High-strength integrated composite housing.
Rainproof structural design. Rainproof
Rainproof structural design. Rainproof grade is IP53.
Jet design
Patent "Super-Jet", the much faster output speed.
Immediate-stop patent technology, fog
Immediate-stop patent technology, fog reaction freely.
Applications & Downloads
Where it works
Accessorize the rig
In the box & often bought together
After-sales & warranty
Backed before and after the show
1-year warranty
Fixtures carry a 1-year warranty; per-model terms are stated in your quotation and order confirmation.
Spare modules stocked
We stock spare modules for all current models — ship them with future orders or separately by express.
Remote technical support
DMX mapping advice, programming help and repair guidance by video call, on WhatsApp or email.
48-hour aging test
Every unit passes a 48-hour aging test and full-function inspection before packing.
Full purchasing, OEM and after-sales answers in the FAQ.
Good to know
H-22V — quick answers
What voltage does the H-22V require?
The Hurricane Super Jet accepts AC 220–240 V, 50/60 Hz. We build for export markets — tell us your target market in the inquiry and we confirm the matching power configuration before dispatch.
Can I order the H-22V with my own logo (OEM/ODM)?
Yes — logo, startup screen, nameplate and packaging are the most common OEM requests. Send your artwork and we confirm the mock-up before production.
How fast can I get a sample of the H-22V?
Sample orders start from 1 piece. Standard models usually ship within 15–30 days depending on model and quantity, and every unit passes a 48-hour aging test before packing.
