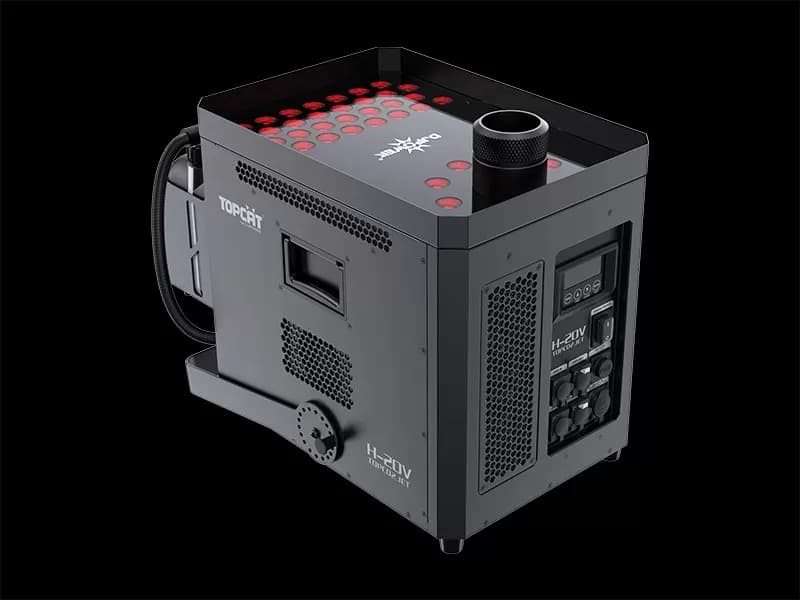

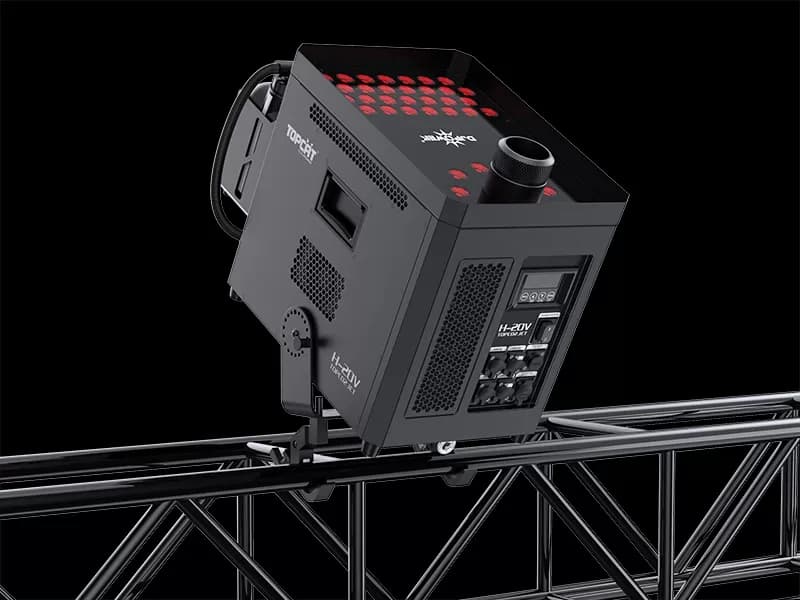

MODEL H-20V
3,100 W CO2 Jet
A 3,100 W CO2 Jet with 117,000 cuft/min output, 15 m output height, DMX512 15 or 16-channel control.
- Input voltageAC 220–240 V, 50/60 Hz
- Total power consumption3,100 W
- Heat-up timeApprox. 6 min
- 37pcs x 8w RGB/Amber
- Max output volumeApprox. 117,000 cuft/min
- Max output heightApprox. 15 m
- Fluid Consumption @ full volumeApprox. 1.8 min/L
- Maximum Continuous Duration @ full volumeApprox.10 s
- Fully-loaded Cumulative Output Duration @ full volumeApprox. 9 min

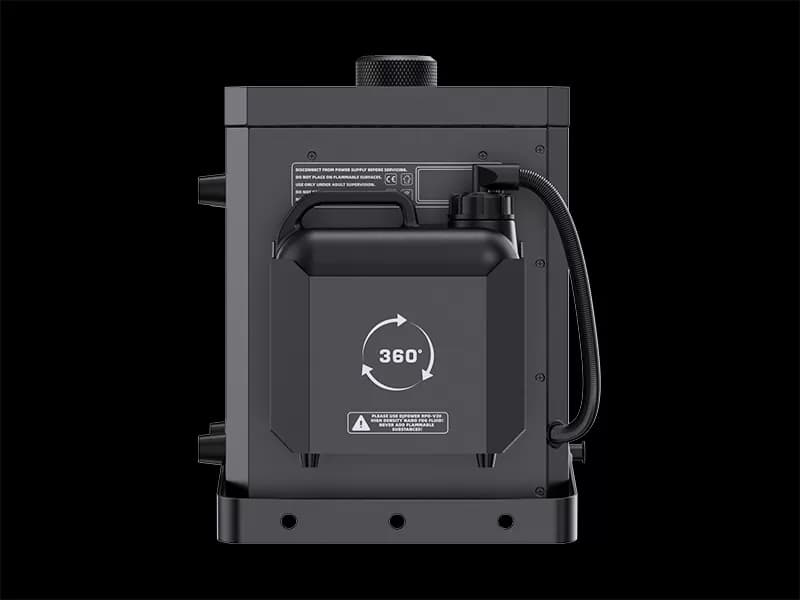

- Fluid tank capacity5 L
- ConsumablePRO- 20 V

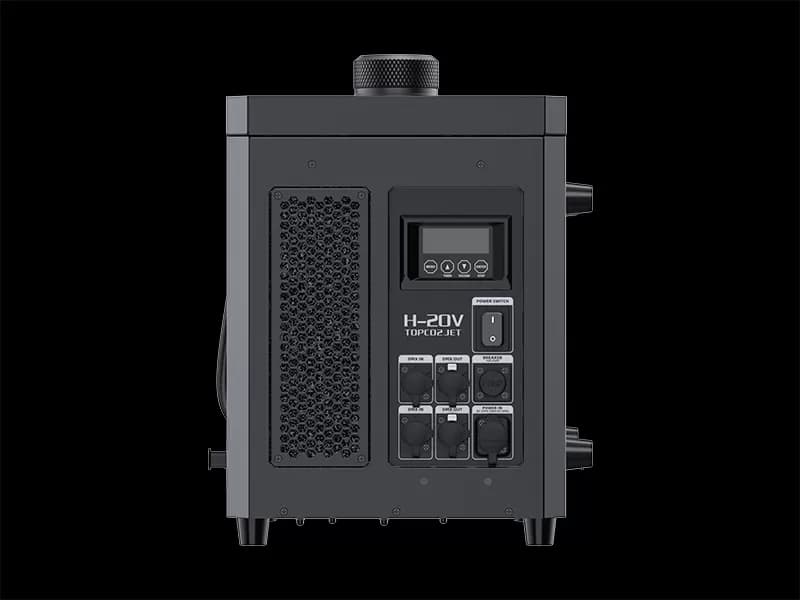

- On-device controlLCD Control Board
- Control protocolDMX512
- DMX channels15 or 16
- Net weight33 kg
- Gross weight38 kg
- Machine dimensions594 × 304 × 439 mm
- Packing dimensions725 × 446 × 513 mm
Sample orders from 1 pieceStandard models ship in 15–30 days48-hour aging test1-year warrantyCE & RoHSOEM / ODM welcome
We reply within one business day (GMT+8). WhatsApp is the fastest channel.
Full Specifications
H-20V datasheet
| Model | H-20V |
| Input voltage | AC 220–240 V, 50/60 Hz |
| Total power consumption | 3,100 W |
| Heat-up time | Approx. 6 min |
| 37pcs x 8w RGB/Amber | |
| Max output volume | Approx. 117,000 cuft/min |
| Max output height | Approx. 15 m |
| Fluid Consumption @ full volume | Approx. 1.8 min/L |
| Maximum Continuous Duration @ full volume | Approx.10 s |
| Fully-loaded Cumulative Output Duration @ full volume | Approx. 9 min |
| Fluid tank capacity | 5 L |
| Consumable | PRO- 20 V |
| Machine dimensions | 594 × 304 × 439 mm |

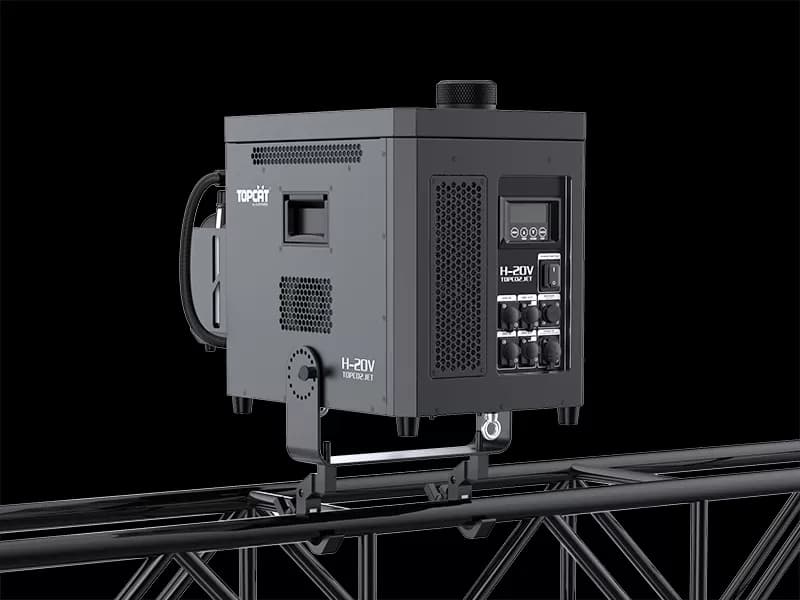

| On-device control | LCD Control Board |
| Control protocol | DMX512 |
| DMX channels | 15 or 16 |
| Net weight | 33 kg |
| Gross weight | 38 kg |
| Packing dimensions | 725 × 446 × 513 mm |
Compare with
Side-by-side specifications
Pick up to 3 models to compare against H-20V. Full datasheets are one click away.
| Specification |  H-20VThis model |  H-K1Pro Auto Smoke Ring Machine |  H-1 PLUS2-in-1 Moving-Head Fog Jet |
|---|---|---|---|
| Type | — | Auto smoke ring machine | Moving head super-jet fog machine |
| Light source | — | RGB 3-in-1 LED ring | 24 × 5 W, RGBA |
| Control protocol | DMX512 | DMX512, 3 channels | DMX-512, 10 channels |
| Input voltage | AC 220–240 V, 50/60 Hz | AC 220–240 V, 50/60 Hz | 220–240 V, 50/60 Hz |
See it in action
Product demo
Features
What the H-20V does on your stage
High-speed airflow assiatance technology
High-speed airflow assiatance technology, rapid eruptions and quick dissipation.

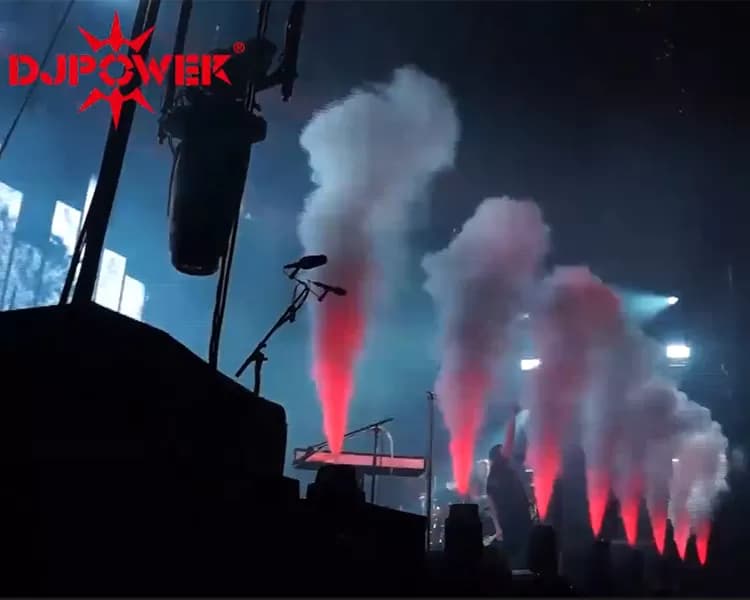

Dual ouput creats huge
Dual ouput creats huge fog column up to 15 meters.
Jet design
Super-jet and lmmediate-stop functions make the fog react very quickly.

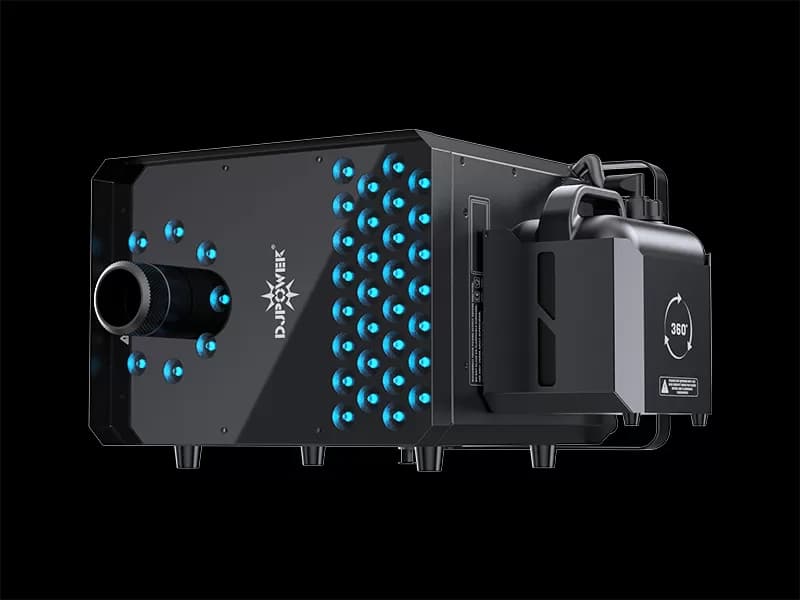

LED lighting
With 37pcs 8W RGB/Amber LEDs, produce colorful fog column.
Applications & Downloads
Where it works
Accessorize the rig
In the box & often bought together
After-sales & warranty
Backed before and after the show
1-year warranty
Fixtures carry a 1-year warranty; per-model terms are stated in your quotation and order confirmation.
Spare modules stocked
We stock spare modules for all current models — ship them with future orders or separately by express.
Remote technical support
DMX mapping advice, programming help and repair guidance by video call, on WhatsApp or email.
48-hour aging test
Every unit passes a 48-hour aging test and full-function inspection before packing.
Full purchasing, OEM and after-sales answers in the FAQ.
Good to know
H-20V — quick answers
What voltage does the H-20V require?
The 3,100 W CO2 Jet accepts AC 220–240 V, 50/60 Hz. We build for export markets — tell us your target market in the inquiry and we confirm the matching power configuration before dispatch.
Can I order the H-20V with my own logo (OEM/ODM)?
Yes — logo, startup screen, nameplate and packaging are the most common OEM requests. Send your artwork and we confirm the mock-up before production.
How fast can I get a sample of the H-20V?
Sample orders start from 1 piece. Standard models usually ship within 15–30 days depending on model and quantity, and every unit passes a 48-hour aging test before packing.
