Product demo
MODEL DSK-3000VST
Dual Output Super Jet
A Dual Output Super Jet with 3,000 W power, 70,000 cuft/min output, 10–12 m output height.
- Input voltageAC 220–240 V, 50/60 Hz
- Breaker typeBreaker
- Breaker16 A, 250 V
- Total power consumption3,000 W
- Heat-up timeApprox. 9.5min
- LED colorRGBA
- Power per LED3 W
- Quantity of Inner LED27 pcs
- Fluid tank capacity5 L
- Output Duration with Fluid Tank FullApprox. 10.0 min
- Adjustable outputNo
- Max output volumeApprox. 70,000 cuft/min
- Max output heightApprox. 10–12 m
- Fluid consumptionApprox. 3 min/L
- Maximum Continuous DurationApprox. 10 S
- Continuous OutputNo
- Cumulative DurationApprox. 12.8 min
- Consumable Type for Standard Output TestPRO-V
- HorizontalYes
- Inclined√ (ensure no fluid leaking)
- VerticalYes
- Hang Upside DownYes
- Rigging & TrussingYes
- On-device controlTouch LCD control board
- Wireless controlNo
- Wired controlNo
- Control protocolDMX512
- DMX channels9 or 10
- CeYes
- RoHSYes
- ConsumablePRO-V
- Net weight24.3 kg
- Gross weight27.3kg
- Machine dimensions469.2 × 294.7 × 385.3 mm
- Packing dimensions560 × 385 × 460 mm
Sample orders from 1 pieceStandard models ship in 15–30 days48-hour aging test1-year warrantyCE & RoHSOEM / ODM welcome
We reply within one business day (GMT+8). WhatsApp is the fastest channel.
Full Specifications
DSK-3000VST datasheet
| Model | DSK-3000VST |
| Input voltage | AC 220–240 V, 50/60 Hz |
| Breaker type | Breaker |
| Breaker | 16 A, 250 V |
| Total power consumption | 3,000 W |
| Heat-up time | Approx. 9.5min |
| Power per LED | 3 W |
| Quantity of Inner LED | 27 pcs |
| Fluid tank capacity | 5 L |
| Output Duration with Fluid Tank Full | Approx. 10.0 min |
| Adjustable output | No |
| Max output volume | Approx. 70,000 cuft/min |
| Max output height | Approx. 10–12 m |
| Fluid consumption | Approx. 3 min/L |
| Maximum Continuous Duration | Approx. 10 S |
| Continuous Output | No |
| Cumulative Duration | Approx. 12.8 min |
| Consumable Type for Standard Output Test | PRO-V |
| Horizontal | Yes |
| Inclined | √ (ensure no fluid leaking) |
| Vertical | Yes |
| Hang Upside Down | Yes |
| Rigging & Trussing | Yes |
| Ce | Yes |
| RoHS | Yes |
| Consumable | PRO-V |
| Machine dimensions | 469.2 × 294.7 × 385.3 mm |
| LED color | RGBA |
| On-device control | Touch LCD control board |
| Wireless control | No |
| Wired control | No |
| Control protocol | DMX512 |
| DMX channels | 9 or 10 |
| Net weight | 24.3 kg |
| Gross weight | 27.3kg |
| Packing dimensions | 560 × 385 × 460 mm |
Compare with
Side-by-side specifications
Pick up to 3 models to compare against DSK-3000VST. Full datasheets are one click away.
| Specification |  DSK-3000VSTThis model |  H-K1Pro Auto Smoke Ring Machine |  H-1 PLUS2-in-1 Moving-Head Fog Jet |
|---|---|---|---|
| Type | — | Auto smoke ring machine | Moving head super-jet fog machine |
| Light source | — | RGB 3-in-1 LED ring | 24 × 5 W, RGBA |
| Control protocol | DMX512 | DMX512, 3 channels | DMX-512, 10 channels |
| Input voltage | AC 220–240 V, 50/60 Hz | AC 220–240 V, 50/60 Hz | 220–240 V, 50/60 Hz |
See it in action
Product demo
Features
What the DSK-3000VST does on your stage
Output performance
Dual output for strong plume.

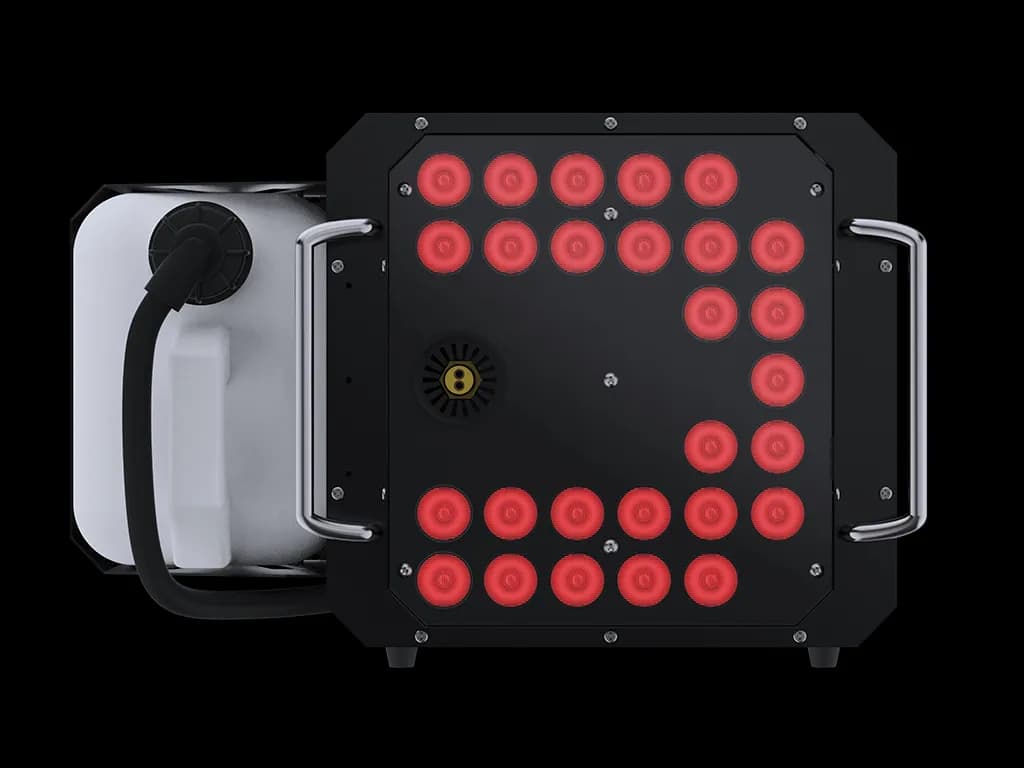

LED lighting
27pcs 3W LEDs, brighter colors.
Jet design
Patent "Super-Jet", the speed of fog output reaction is doubled.
"Immediate-stop" patent technology, fog
"Immediate-stop" patent technology, fog reaction freely.
Applications & Downloads
Where it works
Accessorize the rig
In the box & often bought together
After-sales & warranty
Backed before and after the show
1-year warranty
Fixtures carry a 1-year warranty; per-model terms are stated in your quotation and order confirmation.
Spare modules stocked
We stock spare modules for all current models — ship them with future orders or separately by express.
Remote technical support
DMX mapping advice, programming help and repair guidance by video call, on WhatsApp or email.
48-hour aging test
Every unit passes a 48-hour aging test and full-function inspection before packing.
Full purchasing, OEM and after-sales answers in the FAQ.
Good to know
DSK-3000VST — quick answers
What voltage does the DSK-3000VST require?
The Dual Output Super Jet accepts AC 220–240 V, 50/60 Hz. We build for export markets — tell us your target market in the inquiry and we confirm the matching power configuration before dispatch.
Can I order the DSK-3000VST with my own logo (OEM/ODM)?
Yes — logo, startup screen, nameplate and packaging are the most common OEM requests. Send your artwork and we confirm the mock-up before production.
How fast can I get a sample of the DSK-3000VST?
Sample orders start from 1 piece. Standard models usually ship within 15–30 days depending on model and quantity, and every unit passes a 48-hour aging test before packing.
