MODEL DSK-2000
Multi-angle Fog Machine
A Multi-angle Fog Machine with 1,500 W power, 26,600 cuft/min output, 6 m throw.
- Input voltage220–240 V, 50/60 Hz
- Breaker typeBreaker
- Breaker8 A, 250 V
- Total power consumption1,500 W
- Operating Current7.6
- Power Input ConnectorLockable PowerCon
- Heat-up timeApprox. 8.0 min
- Heater TypeAluminum Heater Block
- Fluid tank capacity5 L /1.3 Gal.
- Adjustable outputYes
- Volume Adjustment Level/Range1–100%
- Max output volumeApprox. 26,600 cuft/min
- Max output distanceApprox. 6 m
- Fluid Consumption @ full volumeApprox. 7.5 min/L
- Maximum Continuous Duration @ full volumeApprox. 30 sec
- Continuous OutputNo
- Max continuous output level100%
- Fully-loaded Cumulative Output Duration @ full volumeApprox. 37 min
- On-device controlLCD control board
- Wireless controlW-4 / RF 433MHz / Built-in
- Wired controlNo
- Control protocolDMX-512
- DMX channels1
- Data Connectors3-pin and 5-pin XLR
- Power CordYes
- Wireless Controller ModelW-4 / RF 433MHz / Transmitter
- Wired Controller ModelNo
- ConsumablePRO-A Fog Fluid
- Net weight18.9 kg
- Gross weight20.5 kg
- Machine dimensions532.6 × 386 × 290.3 mm
- Packing dimensions575 × 415 × 355 mm
Sample orders from 1 pieceStandard models ship in 15–30 days48-hour aging test1-year warrantyCE & RoHSOEM / ODM welcome
We reply within one business day (GMT+8). WhatsApp is the fastest channel.
Full Specifications
DSK-2000 datasheet
| Model | DSK-2000 |
| Input voltage | 220–240 V, 50/60 Hz |
| Breaker type | Breaker |
| Breaker | 8 A, 250 V |
| Total power consumption | 1,500 W |
| Heat-up time | Approx. 8.0 min |
| Heater Type | Aluminum Heater Block |
| Fluid tank capacity | 5 L /1.3 Gal. |
| Adjustable output | Yes |
| Volume Adjustment Level/Range | 1–100% |
| Max output volume | Approx. 26,600 cuft/min |
| Max output distance | Approx. 6 m |
| Fluid Consumption @ full volume | Approx. 7.5 min/L |
| Maximum Continuous Duration @ full volume | Approx. 30 sec |
| Continuous Output | No |
| Max continuous output level | 100% |
| Fully-loaded Cumulative Output Duration @ full volume | Approx. 37 min |
| Power Cord | Yes |
| Consumable | PRO-A Fog Fluid |
| Machine dimensions | 532.6 × 386 × 290.3 mm |
| Power Input Connector | Lockable PowerCon |
| On-device control | LCD control board |
| Wireless control | W-4 / RF 433MHz / Built-in |
| Wired control | No |
| Control protocol | DMX-512 |
| DMX channels | 1 |
| Data Connectors | 3-pin and 5-pin XLR |
| Wireless Controller Model | W-4 / RF 433MHz / Transmitter |
| Wired Controller Model | No |
| Operating Current | 7.6 |
| Net weight | 18.9 kg |
| Gross weight | 20.5 kg |
| Packing dimensions | 575 × 415 × 355 mm |
Compare with
Side-by-side specifications
Pick up to 3 models to compare against DSK-2000. Full datasheets are one click away.
| Specification |  DSK-2000This model |  H-K1Pro Auto Smoke Ring Machine |  H-1 PLUS2-in-1 Moving-Head Fog Jet |
|---|---|---|---|
| Type | — | Auto smoke ring machine | Moving head super-jet fog machine |
| Light source | — | RGB 3-in-1 LED ring | 24 × 5 W, RGBA |
| Control protocol | DMX-512 | DMX512, 3 channels | DMX-512, 10 channels |
| Input voltage | 220–240 V, 50/60 Hz | AC 220–240 V, 50/60 Hz | 220–240 V, 50/60 Hz |
See it in action
Product demo
Features
What the DSK-2000 does on your stage
Professional multi-angle fog machine
Professional multi-angle fog machine.

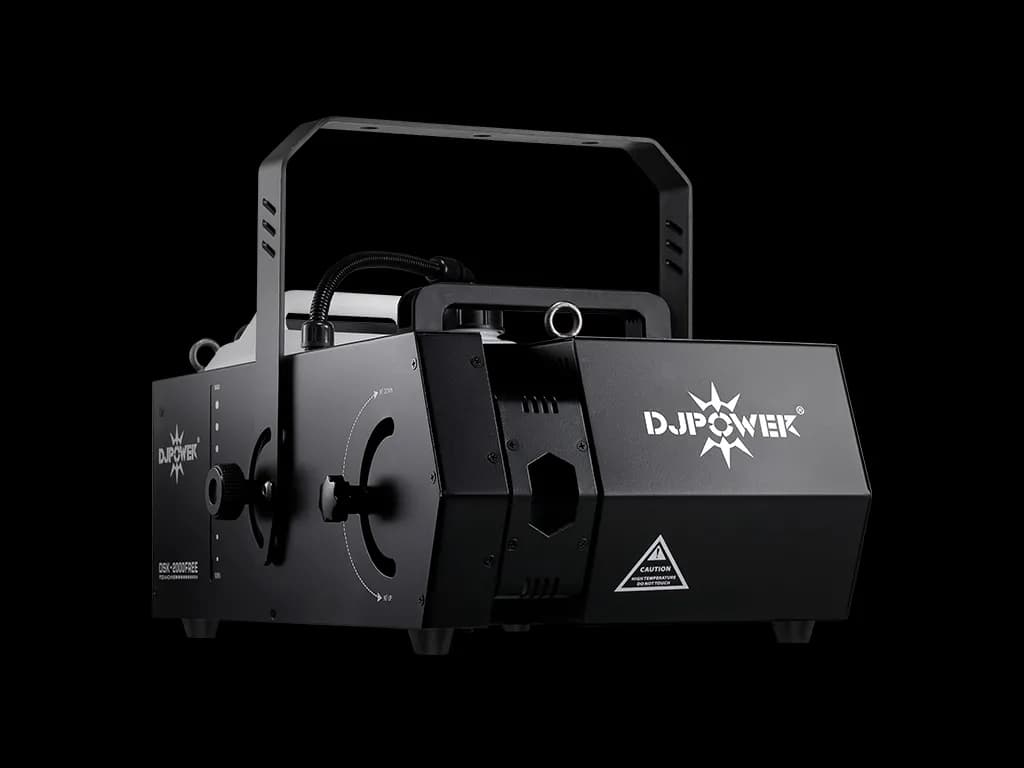

Angle adjustable fog outlet
Angle adjustable fog outlet, 180° adjustable fog direction.
Control
Unique temperature control system.
Safety protection
Advanced No-Fluid protection.
Applications & Downloads
Where it works
Accessorize the rig
In the box & often bought together
After-sales & warranty
Backed before and after the show
1-year warranty
Fixtures carry a 1-year warranty; per-model terms are stated in your quotation and order confirmation.
Spare modules stocked
We stock spare modules for all current models — ship them with future orders or separately by express.
Remote technical support
DMX mapping advice, programming help and repair guidance by video call, on WhatsApp or email.
48-hour aging test
Every unit passes a 48-hour aging test and full-function inspection before packing.
Full purchasing, OEM and after-sales answers in the FAQ.
Good to know
DSK-2000 — quick answers
What voltage does the DSK-2000 require?
The Multi-angle Fog Machine accepts 220–240 V, 50/60 Hz. We build for export markets — tell us your target market in the inquiry and we confirm the matching power configuration before dispatch.
Can I order the DSK-2000 with my own logo (OEM/ODM)?
Yes — logo, startup screen, nameplate and packaging are the most common OEM requests. Send your artwork and we confirm the mock-up before production.
How fast can I get a sample of the DSK-2000?
Sample orders start from 1 piece. Standard models usually ship within 15–30 days depending on model and quantity, and every unit passes a 48-hour aging test before packing.
