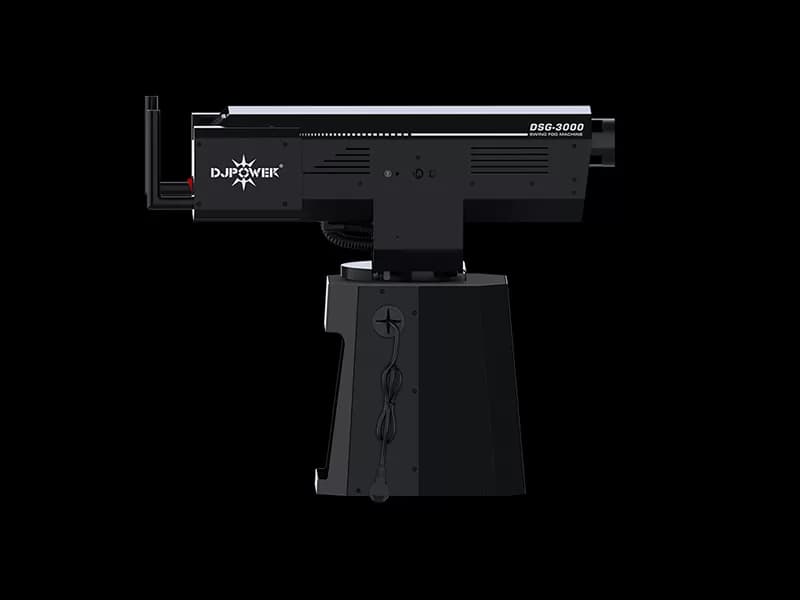

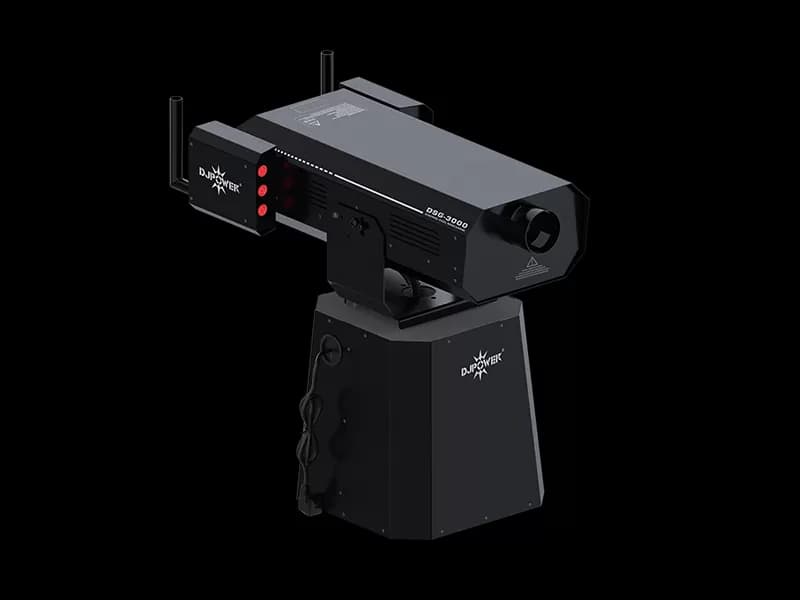

MODEL DSG-3000
Swing Fog Machine
A Swing Fog Machine with 2,500 W power, 10 m throw, DMX512 1 or 2-channel control.
- Input voltage220–240 V, 50/60 Hz
- Breaker typeBreaker
- Breaker15 A, 250 V
- Total power consumption2,500 W
- Operating Current13.0
- Heat-up timeApprox. 9.0 min
- LED Power3W x 6pcs
- LED colorRed
- Fluid tank capacity9 L
- Max output distanceApprox. 10 m
- Fluid consumptionApprox. 2.6 min/L
- Maximum Continuous DurationApprox. 10 s
- On-device controlLCD control board
- Wireless controlNo
- Wired controlNo
- Control protocolOptional
- DMX channels1 or 2
- ConsumablePRO-V
- Net weight36.1 kg
- Gross weight39.1 kg
- Machine dimensions783.5 × 403 × 646 mm
- Packing dimensions876 × 509 × 286 mm (Swing head)
- 456 × 456 × 651mm
Sample orders from 1 pieceStandard models ship in 15–30 days48-hour aging test1-year warrantyCE & RoHSOEM / ODM welcome
We reply within one business day (GMT+8). WhatsApp is the fastest channel.
Full Specifications
DSG-3000 datasheet
| Model | DSG-3000 |
| Input voltage | 220–240 V, 50/60 Hz |
| Breaker type | Breaker |
| Breaker | 15 A, 250 V |
| Total power consumption | 2,500 W |
| Heat-up time | Approx. 9.0 min |
| LED Power | 3W x 6pcs |
| Fluid tank capacity | 9 L |
| Max output distance | Approx. 10 m |
| Fluid consumption | Approx. 2.6 min/L |
| Maximum Continuous Duration | Approx. 10 s |
| Consumable | PRO-V |
| Machine dimensions | 783.5 × 403 × 646 mm |
| 456 × 456 × 651mm |
| LED color | Red |
| On-device control | LCD control board |
| Wireless control | No |
| Wired control | No |
| Control protocol | Optional |
| DMX channels | 1 or 2 |
| Operating Current | 13.0 |
| Net weight | 36.1 kg |
| Gross weight | 39.1 kg |
| Packing dimensions | 876 × 509 × 286 mm (Swing head) |
Compare with
Side-by-side specifications
Pick up to 3 models to compare against DSG-3000. Full datasheets are one click away.
| Specification |  DSG-3000This model |  H-K1Pro Auto Smoke Ring Machine |  H-1 PLUS2-in-1 Moving-Head Fog Jet |
|---|---|---|---|
| Type | — | Auto smoke ring machine | Moving head super-jet fog machine |
| Light source | — | RGB 3-in-1 LED ring | 24 × 5 W, RGBA |
| Control protocol | Optional | DMX512, 3 channels | DMX-512, 10 channels |
| Input voltage | 220–240 V, 50/60 Hz | AC 220–240 V, 50/60 Hz | 220–240 V, 50/60 Hz |
See it in action
Product demo
Features
What the DSG-3000 does on your stage
Output performance
Dual nozzle, strong and huge output.
Jet design
Patent "Super-Jet", the speed of fog output reaction quickly.
Output performance
The smoke output angle can be adjusted arbitrarily at 120 degrees in one plane.
Safety protection
Excellent solenoid valve and anti-interference circuit design, no-fluid protection, stable and reliable.
Applications & Downloads
Where it works
Accessorize the rig
In the box & often bought together
After-sales & warranty
Backed before and after the show
1-year warranty
Fixtures carry a 1-year warranty; per-model terms are stated in your quotation and order confirmation.
Spare modules stocked
We stock spare modules for all current models — ship them with future orders or separately by express.
Remote technical support
DMX mapping advice, programming help and repair guidance by video call, on WhatsApp or email.
48-hour aging test
Every unit passes a 48-hour aging test and full-function inspection before packing.
Full purchasing, OEM and after-sales answers in the FAQ.
Good to know
DSG-3000 — quick answers
What voltage does the DSG-3000 require?
The Swing Fog Machine accepts 220–240 V, 50/60 Hz. We build for export markets — tell us your target market in the inquiry and we confirm the matching power configuration before dispatch.
Can I order the DSG-3000 with my own logo (OEM/ODM)?
Yes — logo, startup screen, nameplate and packaging are the most common OEM requests. Send your artwork and we confirm the mock-up before production.
How fast can I get a sample of the DSG-3000?
Sample orders start from 1 piece. Standard models usually ship within 15–30 days depending on model and quantity, and every unit passes a 48-hour aging test before packing.
