MODEL DJ-200
Mini Haze Machine
A Mini Haze Machine with 300 W power, 3,000 cuft/min output, DMX512 2-channel control.
- Input voltageAC 220–240 V, 50/60 Hz
- Total power consumption300 W
- Heat-up timeApprox. 3 min 30 s
- Fluid tank capacity1.1 L
- Max output volumeApprox. 3,000 cuft/min
- Max output coverageApprox. 100㎡ (5 min)
- Max fluid consumption rateApprox. 233 min/L
- Wireless controlInfrared
- remote control Control ProtocolDMX-512
- DMX channels2
- ConsumableDJV-006 or PRO-C or PRO-J Haze Fluid
- Net weight1.7 kg
- Gross weight2.1 kg
- Machine dimensions262 × 92.5 × 284.5 mm
- Packing dimensions345 × 330 × 137 mm
Sample orders from 1 pieceStandard models ship in 15–30 days48-hour aging test1-year warrantyCE & RoHSOEM / ODM welcome
We reply within one business day (GMT+8). WhatsApp is the fastest channel.
Full Specifications
DJ-200 datasheet
| Model | DJ-200 |
| Input voltage | AC 220–240 V, 50/60 Hz |
| Total power consumption | 300 W |
| Heat-up time | Approx. 3 min 30 s |
| Fluid tank capacity | 1.1 L |
| Max output volume | Approx. 3,000 cuft/min |
| Max output coverage | Approx. 100㎡ (5 min) |
| Max fluid consumption rate | Approx. 233 min/L |
| Consumable | DJV-006 or PRO-C or PRO-J Haze Fluid |
| Machine dimensions | 262 × 92.5 × 284.5 mm |
| Wireless control | Infrared |
| remote control Control Protocol | DMX-512 |
| DMX channels | 2 |
| Net weight | 1.7 kg |
| Gross weight | 2.1 kg |
| Packing dimensions | 345 × 330 × 137 mm |
Compare with
Side-by-side specifications
Pick up to 3 models to compare against DJ-200. Full datasheets are one click away.
| Specification |  DJ-200This model |  H-K1Pro Auto Smoke Ring Machine |  H-1 PLUS2-in-1 Moving-Head Fog Jet |
|---|---|---|---|
| Type | — | Auto smoke ring machine | Moving head super-jet fog machine |
| Light source | — | RGB 3-in-1 LED ring | 24 × 5 W, RGBA |
| Control protocol | — | DMX512, 3 channels | DMX-512, 10 channels |
| Input voltage | AC 220–240 V, 50/60 Hz | AC 220–240 V, 50/60 Hz | 220–240 V, 50/60 Hz |
See it in action
Product demo
Features
What the DJ-200 does on your stage
Portable build
Compact & lightweight design for easy wall mounting, saving space while enhancing aesthetics and practicality.
Output performance
Low operating noise, adjustable Haze output direction, adjustable smoke output volume.
Low consumption and environmentally
Low consumption and environmentally friendly, no burning smell.

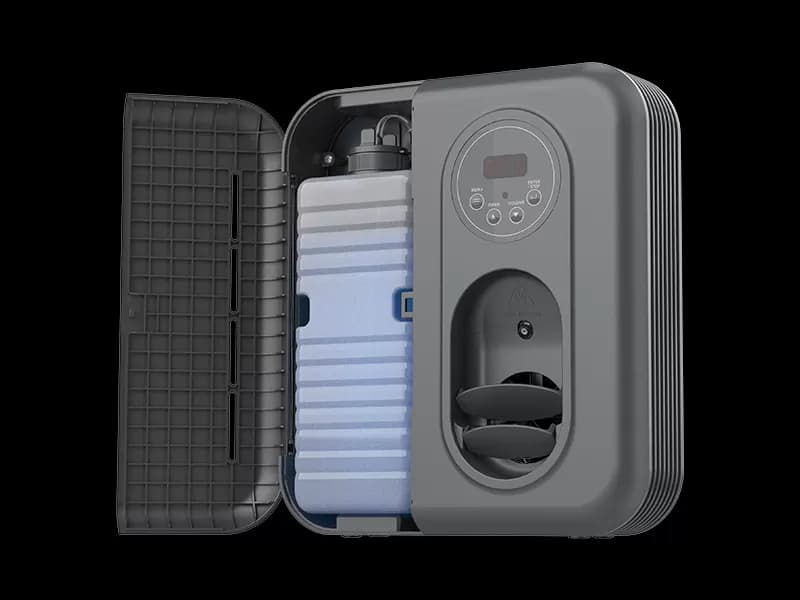

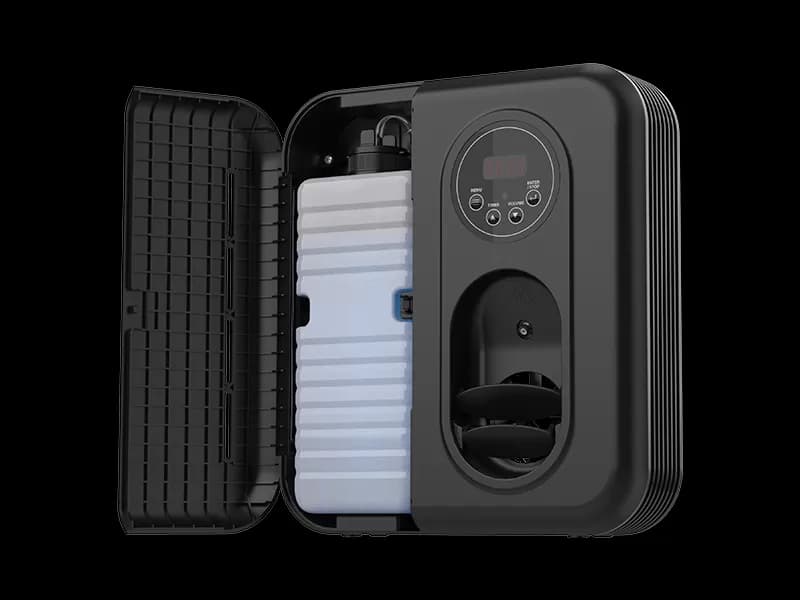

Fluid system
Please use professional haze fluid DJV-006 or PRO-C or PRO-J for better effects!.
Applications & Downloads
Where it works
Accessorize the rig
In the box & often bought together
After-sales & warranty
Backed before and after the show
1-year warranty
Fixtures carry a 1-year warranty; per-model terms are stated in your quotation and order confirmation.
Spare modules stocked
We stock spare modules for all current models — ship them with future orders or separately by express.
Remote technical support
DMX mapping advice, programming help and repair guidance by video call, on WhatsApp or email.
48-hour aging test
Every unit passes a 48-hour aging test and full-function inspection before packing.
Full purchasing, OEM and after-sales answers in the FAQ.
Good to know
DJ-200 — quick answers
What voltage does the DJ-200 require?
The Mini Haze Machine accepts AC 220–240 V, 50/60 Hz. We build for export markets — tell us your target market in the inquiry and we confirm the matching power configuration before dispatch.
Can I order the DJ-200 with my own logo (OEM/ODM)?
Yes — logo, startup screen, nameplate and packaging are the most common OEM requests. Send your artwork and we confirm the mock-up before production.
How fast can I get a sample of the DJ-200?
Sample orders start from 1 piece. Standard models usually ship within 15–30 days depending on model and quantity, and every unit passes a 48-hour aging test before packing.
