Product demo
MODEL DF-V9C

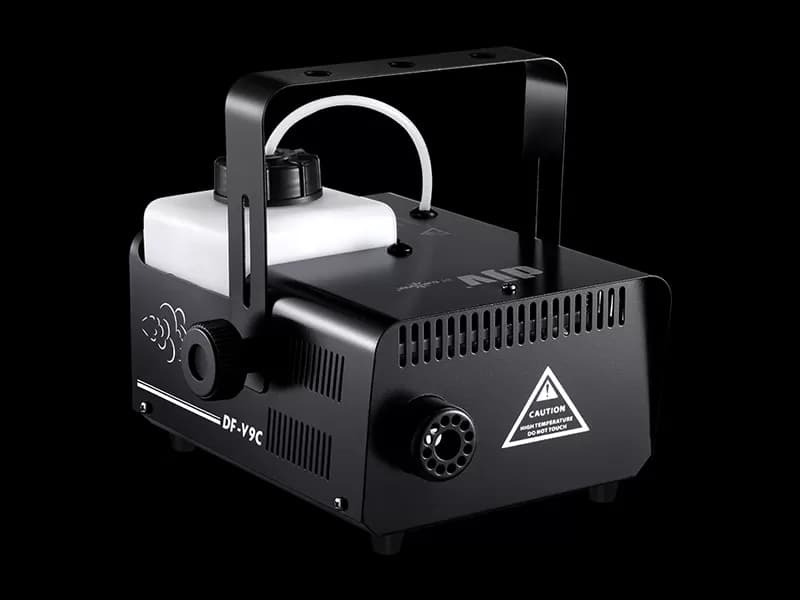

750 W Fog Machine
A 750 W Fog Machine with 6,400 cuft/min output, 3 m throw, 1.3 L tank.
- Input voltage220–240 V, 50/60 Hz
- Breaker typeFuse (F)
- Breaker5 A, 250 V
- Total power consumption750 W
- Operating Current3.1
- Power Input ConnectorHard-wired
- Heat-up timeApprox. 4.5 min
- Heater TypeAluminum Heater Block
- Fluid tank capacity1.3 L
- Adjustable outputNo
- Max output volumeApprox. 6,400 cuft/min
- Max output distanceApprox. 3 m
- Max Output DurationApprox. 15 s
- Fluid Consumption @ full volumeApprox. 31 min/L
- Continuous OutputNo
- Fully-loaded Cumulative Output Duration @ full volumeApprox. 40 min
- On-device controlN /A
- Wireless controlW-2 / RF 433MHz / External receiver
- Wired controlM-1
- Control protocolNo
- DMX channelsNo
- Power CordYes
- Wireless Controller ModelW-2 / RF 315MHz / Transmitter & Receiver
- Wired Controller ModelM-1
- ConsumableDJV-001 or D-01 Fog Fluid
- Net weight3.6 kg
- Gross weight4 kg
- Machine dimensions249 × 249 × 177.1 mm
- Packing dimensions300 × 240 × 230 mm
Sample orders from 1 pieceStandard models ship in 15–30 days48-hour aging test1-year warrantyCE & RoHSOEM / ODM welcome
We reply within one business day (GMT+8). WhatsApp is the fastest channel.
Full Specifications
DF-V9C datasheet
| Model | DF-V9C |
| Input voltage | 220–240 V, 50/60 Hz |
| Breaker type | Fuse (F) |
| Breaker | 5 A, 250 V |
| Total power consumption | 750 W |
| Heat-up time | Approx. 4.5 min |
| Heater Type | Aluminum Heater Block |
| Fluid tank capacity | 1.3 L |
| Adjustable output | No |
| Max output volume | Approx. 6,400 cuft/min |
| Max output distance | Approx. 3 m |
| Max Output Duration | Approx. 15 s |
| Fluid Consumption @ full volume | Approx. 31 min/L |
| Continuous Output | No |
| Fully-loaded Cumulative Output Duration @ full volume | Approx. 40 min |
| Power Cord | Yes |
| Consumable | DJV-001 or D-01 Fog Fluid |
| Machine dimensions | 249 × 249 × 177.1 mm |
| Power Input Connector | Hard-wired |
| On-device control | N /A |
| Wireless control | W-2 / RF 433MHz / External receiver |
| Wired control | M-1 |
| Control protocol | No |
| DMX channels | No |
| Wireless Controller Model | W-2 / RF 315MHz / Transmitter & Receiver |
| Wired Controller Model | M-1 |
| Operating Current | 3.1 |
| Net weight | 3.6 kg |
| Gross weight | 4 kg |
| Packing dimensions | 300 × 240 × 230 mm |
Compare with
Side-by-side specifications
Pick up to 3 models to compare against DF-V9C. Full datasheets are one click away.
| Specification |  DF-V9CThis model |  H-K1Pro Auto Smoke Ring Machine |  H-1 PLUS2-in-1 Moving-Head Fog Jet |
|---|---|---|---|
| Type | — | Auto smoke ring machine | Moving head super-jet fog machine |
| Light source | — | RGB 3-in-1 LED ring | 24 × 5 W, RGBA |
| Control protocol | No | DMX512, 3 channels | DMX-512, 10 channels |
| Input voltage | 220–240 V, 50/60 Hz | AC 220–240 V, 50/60 Hz | 220–240 V, 50/60 Hz |
See it in action
Product demo
Features
What the DF-V9C does on your stage
Safety protection
Advanced no-fluid protection for safety use.
Heating system
Heating system applied MIRROR patented technology (MIRROR Pipe) to prevent the heater from blockage.
Control
Microcomputer electronic temperature control supports constant temperature. After first heat-up, machine is ready to fog at any time.
Remote control
Wired control and wireless control.
Applications & Downloads
Where it works
Accessorize the rig
In the box & often bought together
After-sales & warranty
Backed before and after the show
1-year warranty
Fixtures carry a 1-year warranty; per-model terms are stated in your quotation and order confirmation.
Spare modules stocked
We stock spare modules for all current models — ship them with future orders or separately by express.
Remote technical support
DMX mapping advice, programming help and repair guidance by video call, on WhatsApp or email.
48-hour aging test
Every unit passes a 48-hour aging test and full-function inspection before packing.
Full purchasing, OEM and after-sales answers in the FAQ.
Good to know
DF-V9C — quick answers
What voltage does the DF-V9C require?
The 750 W Fog Machine accepts 220–240 V, 50/60 Hz. We build for export markets — tell us your target market in the inquiry and we confirm the matching power configuration before dispatch.
Can I order the DF-V9C with my own logo (OEM/ODM)?
Yes — logo, startup screen, nameplate and packaging are the most common OEM requests. Send your artwork and we confirm the mock-up before production.
How fast can I get a sample of the DF-V9C?
Sample orders start from 1 piece. Standard models usually ship within 15–30 days depending on model and quantity, and every unit passes a 48-hour aging test before packing.
