Product demo
MODEL D-WP2
550 W Bubble Fog Machine
A 550 W Bubble Fog Machine with 4,500 cuft/min output, 6 m throw, 6 m output height.
- Input voltageAC 100–120 V, 50/60 Hz
- Breaker8 A, 250 V
- Total power consumption550 W
- Heat-up timeApprox. 3 min 15 s
- LED colorRGB
- LED typeThree-in-one
- Power per LED1.5 W
- LED quantity24 pcs
- Total LED power36 W

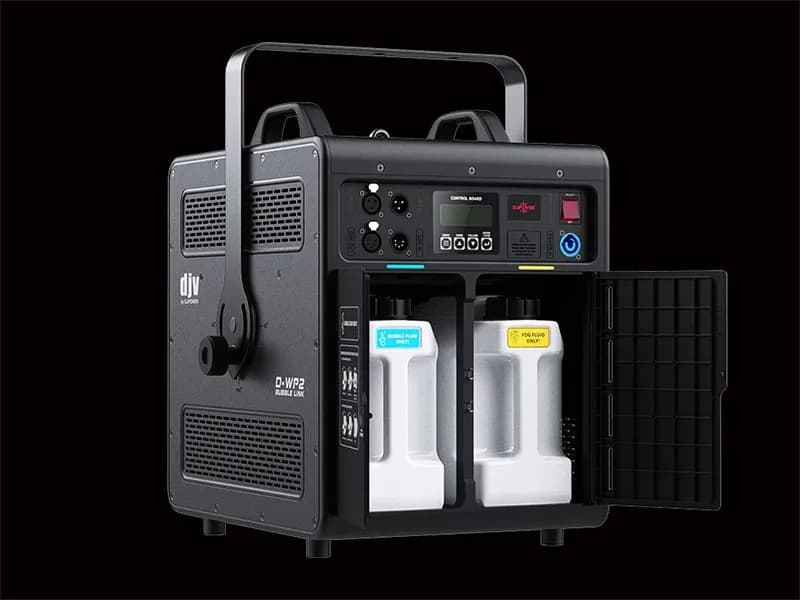

- Bubble fluid tank capacity4 L
- Fog fluid tank capacity4 L
- Adjustable outputYes
- Max output volumeApprox. 4,500 cuft/min
- Max output heightApprox. 6 m
- Max output distanceApprox. 6 m
- Fog fluid consumptionApprox. 74 min/L
- Bubble fluid consumptionApprox. 40 min/L
- HorizontalYes
- InclinedNo
- SidelongNo
- Hang Upside DownNo
- Rigging & TrussingYes

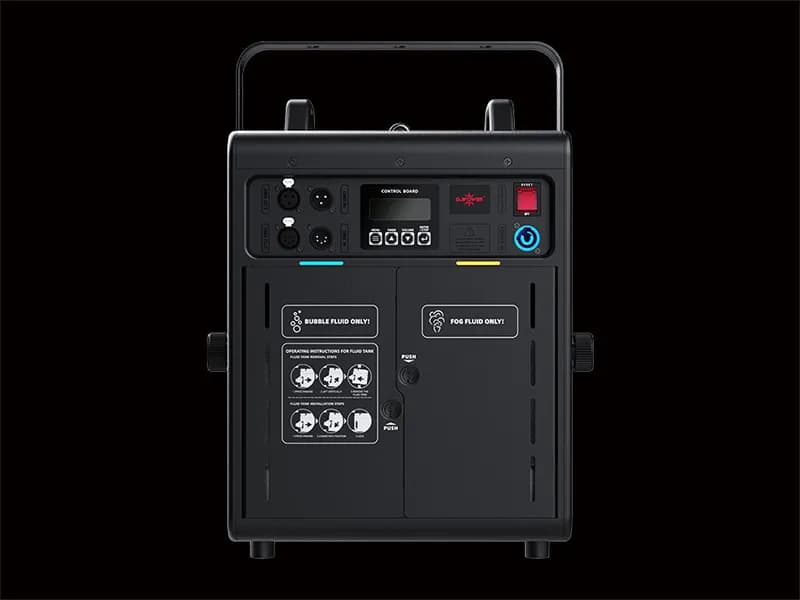

- On-device controlLCD Control Panel
- Wireless controlW-4
- Wired controlNo
- Control protocolDMX512
- DMX channels11
- ConsumablePRO-PW and PRO-Cor PRO-J
- Net weight10 kg
- Gross weight12 kg
- Machine dimensions391 × 393 × 447 mm
- Packing dimensions467 × 400 × 560 mm
Sample orders from 1 pieceStandard models ship in 15–30 days48-hour aging test1-year warrantyCE & RoHSOEM / ODM welcome
We reply within one business day (GMT+8). WhatsApp is the fastest channel.
Full Specifications
D-WP2 datasheet
| Model | D-WP2 |
| Input voltage | AC 100–120 V, 50/60 Hz |
| Breaker | 8 A, 250 V |
| Total power consumption | 550 W |
| Heat-up time | Approx. 3 min 15 s |
| LED type | Three-in-one |
| Power per LED | 1.5 W |
| LED quantity | 24 pcs |
| Total LED power | 36 W |
| Bubble fluid tank capacity | 4 L |
| Fog fluid tank capacity | 4 L |
| Adjustable output | Yes |
| Max output volume | Approx. 4,500 cuft/min |
| Max output height | Approx. 6 m |
| Max output distance | Approx. 6 m |
| Fog fluid consumption | Approx. 74 min/L |
| Bubble fluid consumption | Approx. 40 min/L |
| Horizontal | Yes |
| Inclined | No |
| Sidelong | No |
| Hang Upside Down | No |
| Rigging & Trussing | Yes |
| Consumable | PRO-PW and PRO-Cor PRO-J |
| Machine dimensions | 391 × 393 × 447 mm |
| LED color | RGB |
| On-device control | LCD Control Panel |
| Wireless control | W-4 |
| Wired control | No |
| Control protocol | DMX512 |
| DMX channels | 11 |
| Net weight | 10 kg |
| Gross weight | 12 kg |
| Packing dimensions | 467 × 400 × 560 mm |
Compare with
Side-by-side specifications
Pick up to 3 models to compare against D-WP2. Full datasheets are one click away.
| Specification |  D-WP2This model |  H-K1Pro Auto Smoke Ring Machine |  H-1 PLUS2-in-1 Moving-Head Fog Jet |
|---|---|---|---|
| Type | — | Auto smoke ring machine | Moving head super-jet fog machine |
| Light source | — | RGB 3-in-1 LED ring | 24 × 5 W, RGBA |
| Control protocol | DMX512 | DMX512, 3 channels | DMX-512, 10 channels |
| Input voltage | AC 100–120 V, 50/60 Hz | AC 220–240 V, 50/60 Hz | 220–240 V, 50/60 Hz |
See it in action
Product demo
Features
What the D-WP2 does on your stage
Rugged housing
Featuring injection-molded ABS+PC construction, the housing is lightweight, rust-proof, and corrosion-resistant.
Jet design
Innovative jet design, create denser and beautiful fog bubbles, greatly reducing the formation of excess fog.
Heating system
The efficient and stable heating system ensures operation free from water or fluid spraying.
Fan system
The super silent fan operates at a noise level below 55dB(A) under normal conditions, making the bubble fog travel farther.
Applications & Downloads
Where it works
Accessorize the rig
In the box & often bought together
After-sales & warranty
Backed before and after the show
1-year warranty
Fixtures carry a 1-year warranty; per-model terms are stated in your quotation and order confirmation.
Spare modules stocked
We stock spare modules for all current models — ship them with future orders or separately by express.
Remote technical support
DMX mapping advice, programming help and repair guidance by video call, on WhatsApp or email.
48-hour aging test
Every unit passes a 48-hour aging test and full-function inspection before packing.
Full purchasing, OEM and after-sales answers in the FAQ.
Good to know
D-WP2 — quick answers
What voltage does the D-WP2 require?
The 550 W Bubble Fog Machine accepts AC 100–120 V, 50/60 Hz. We build for export markets — tell us your target market in the inquiry and we confirm the matching power configuration before dispatch.
Can I order the D-WP2 with my own logo (OEM/ODM)?
Yes — logo, startup screen, nameplate and packaging are the most common OEM requests. Send your artwork and we confirm the mock-up before production.
How fast can I get a sample of the D-WP2?
Sample orders start from 1 piece. Standard models usually ship within 15–30 days depending on model and quantity, and every unit passes a 48-hour aging test before packing.
