MODEL D-V2
Spark Fall Machine
A Spark Fall Machine with 4 m output height, DMX512 2-channel control, 7.35 kg net weight.
- Input voltageAC 100–120 V, 50/60 Hz; AC 220–240 V, 50/60 Hz
- Breaker typeBreaker
- Breaker8 A, 250 V; 5 A, 250 V
- Nominal Total Power Consumption600 W
- Typical Current2.6
- Power Input ConnectorLockable PowerCon
- Power Output ConnectorLockable PowerCon
- Heat-up timeApprox. 3.5min
- Re-heat Up Time0 min
- Powder Tank Capacity200 g
- Adjustable outputYes
- Adjustment Level/RangeLevel 1-10
- Max output heightApprox. 4 m
- Powder ConsumptionApprox. 17 g/min
- Maximum Continuous DurationApprox. 30 s
- Continuous OutputNo
- Power CordYes
- Wireless ControllerW-2/ 433MHz/ Remoter & Receiver
- Wired ControllerNo
- HorizontalNo
- InclinedNo
- Side-lyingNo
- Hang Upside DownNo
- Rigging & TrussingYes
- Rotating NozzleNo
- DeflectorNo

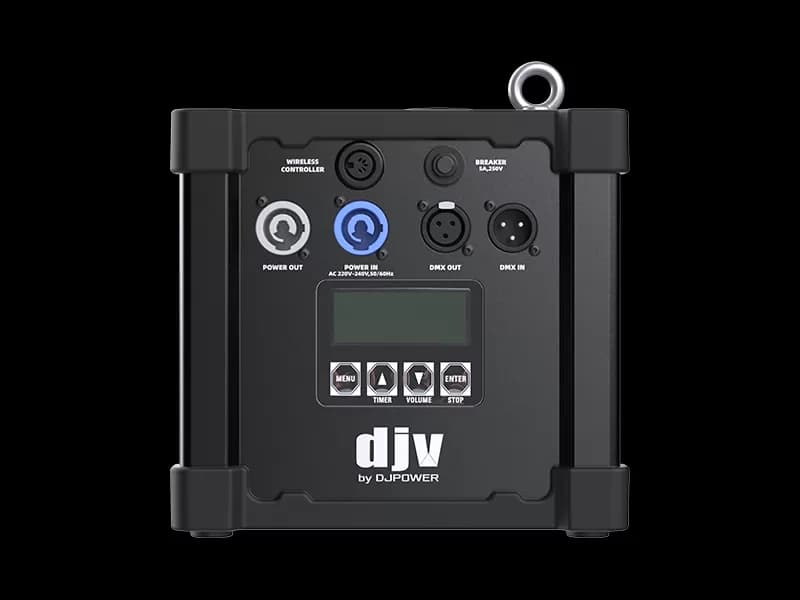

- On-device controlLCD control board
- Wireless controlW-2/ 433MHz/ S5 for Ext.
- Wired controlNo
- Control protocolDMX-512
- DMX channels2
- Rfid CardNo
- Net weight7.35 kg
- Gross weight8.05 kg
- Machine dimensions227.4 × 205.7 × 223 mm
- Packing dimensions293.4 × 271.7 × 264 mm
Sample orders from 1 pieceStandard models ship in 15–30 days48-hour aging test1-year warrantyCE & RoHSOEM / ODM welcome
We reply within one business day (GMT+8). WhatsApp is the fastest channel.
Full Specifications
D-V2 datasheet
| Model | D-V2 |
| Input voltage | AC 100–120 V, 50/60 Hz; AC 220–240 V, 50/60 Hz |
| Breaker type | Breaker |
| Breaker | 8 A, 250 V; 5 A, 250 V |
| Nominal Total Power Consumption | 600 W |
| Typical Current | 2.6 |
| Heat-up time | Approx. 3.5min |
| Re-heat Up Time | 0 min |
| Powder Tank Capacity | 200 g |
| Adjustable output | Yes |
| Adjustment Level/Range | Level 1-10 |
| Max output height | Approx. 4 m |
| Powder Consumption | Approx. 17 g/min |
| Maximum Continuous Duration | Approx. 30 s |
| Continuous Output | No |
| Power Cord | Yes |
| Horizontal | No |
| Inclined | No |
| Side-lying | No |
| Hang Upside Down | No |
| Rigging & Trussing | Yes |
| Rotating Nozzle | No |
| Deflector | No |
| Rfid Card | No |
| Machine dimensions | 227.4 × 205.7 × 223 mm |
| Power Input Connector | Lockable PowerCon |
| Power Output Connector | Lockable PowerCon |
| Wireless Controller | W-2/ 433MHz/ Remoter & Receiver |
| Wired Controller | No |
| On-device control | LCD control board |
| Wireless control | W-2/ 433MHz/ S5 for Ext. |
| Wired control | No |
| Control protocol | DMX-512 |
| DMX channels | 2 |
| Net weight | 7.35 kg |
| Gross weight | 8.05 kg |
| Packing dimensions | 293.4 × 271.7 × 264 mm |
Compare with
Side-by-side specifications
Pick up to 3 models to compare against D-V2. Full datasheets are one click away.
| Specification |  D-V2This model |  H-K1Pro Auto Smoke Ring Machine |  H-1 PLUS2-in-1 Moving-Head Fog Jet |
|---|---|---|---|
| Type | — | Auto smoke ring machine | Moving head super-jet fog machine |
| Light source | — | RGB 3-in-1 LED ring | 24 × 5 W, RGBA |
| Control protocol | DMX-512 | DMX512, 3 channels | DMX-512, 10 channels |
| Input voltage | AC 100–120 V, 50/60 Hz; AC 220–240 V, 50/60 Hz | AC 220–240 V, 50/60 Hz | 220–240 V, 50/60 Hz |
See it in action
Product demo
Features
What the D-V2 does on your stage
Compact size, strong anti-collision
Compact size, strong anti-collision design, easy to use.

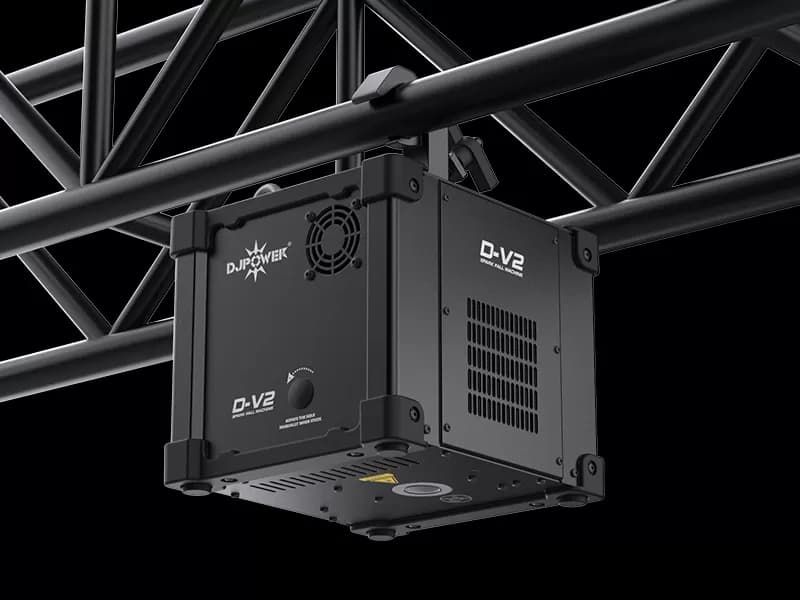

Hanging special effects equipment
Hanging special effects equipment to generate dazzling silver SparkFall effects.
Specially made materials, durable
Specially made materials, durable and not easily damaged.
Control
Intelligent digital control, safe, and environmentally friendly.
Applications & Downloads
Where it works
Accessorize the rig
In the box & often bought together
After-sales & warranty
Backed before and after the show
1-year warranty
Fixtures carry a 1-year warranty; per-model terms are stated in your quotation and order confirmation.
Spare modules stocked
We stock spare modules for all current models — ship them with future orders or separately by express.
Remote technical support
DMX mapping advice, programming help and repair guidance by video call, on WhatsApp or email.
48-hour aging test
Every unit passes a 48-hour aging test and full-function inspection before packing.
Full purchasing, OEM and after-sales answers in the FAQ.
Good to know
D-V2 — quick answers
What voltage does the D-V2 require?
The Spark Fall Machine accepts AC 100–120 V, 50/60 Hz; AC 220–240 V, 50/60 Hz. We build for export markets — tell us your target market in the inquiry and we confirm the matching power configuration before dispatch.
Can I order the D-V2 with my own logo (OEM/ODM)?
Yes — logo, startup screen, nameplate and packaging are the most common OEM requests. Send your artwork and we confirm the mock-up before production.
How fast can I get a sample of the D-V2?
Sample orders start from 1 piece. Standard models usually ship within 15–30 days depending on model and quantity, and every unit passes a 48-hour aging test before packing.
