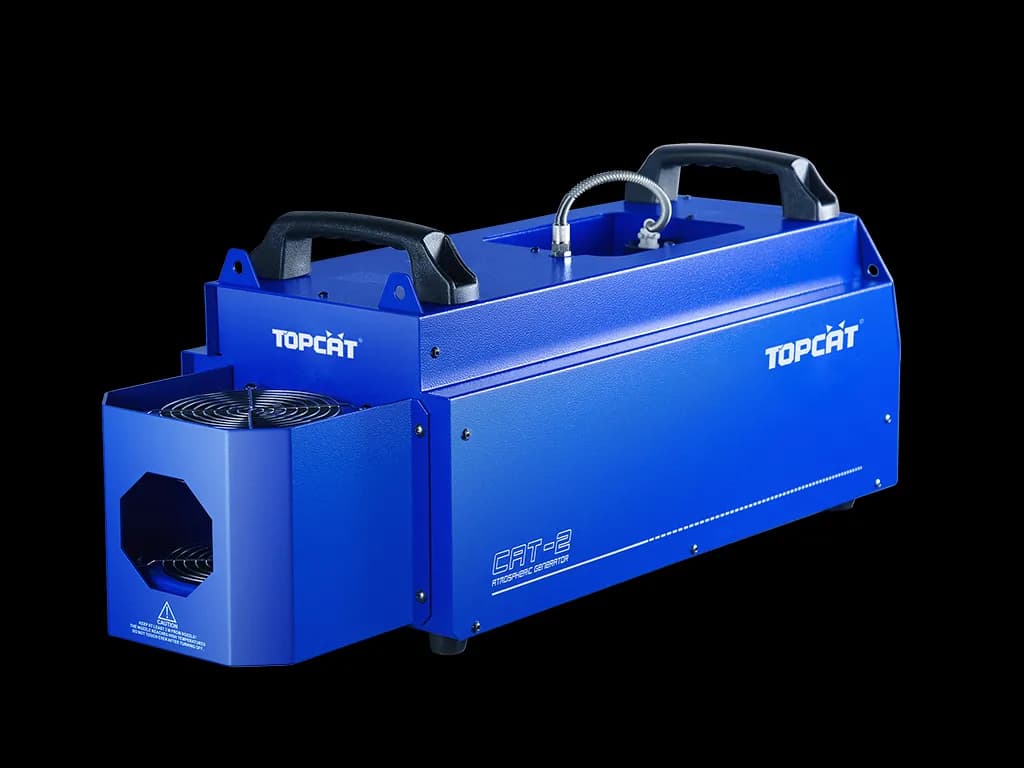

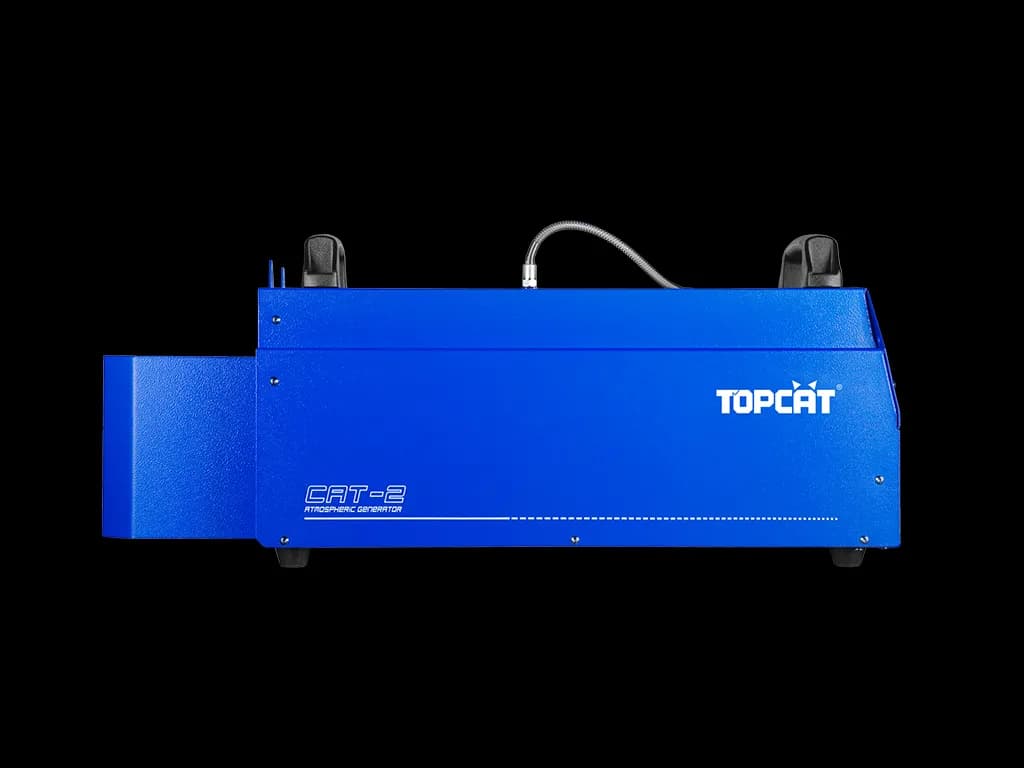

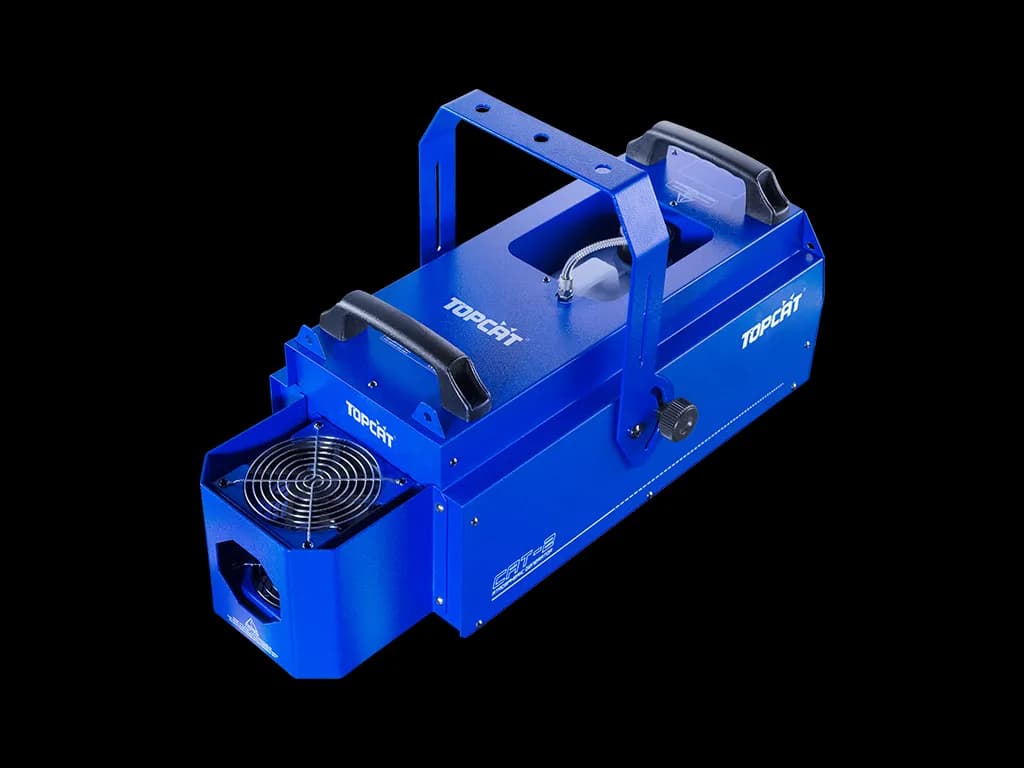

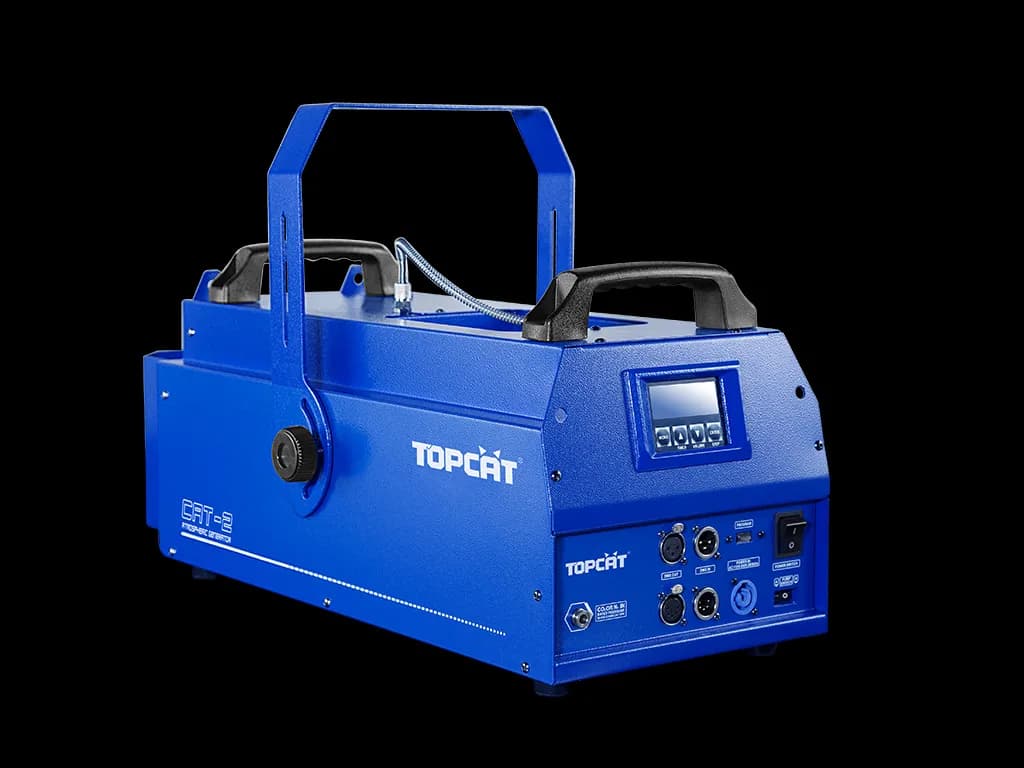

MODEL CAT-2
Atmospheric Generator
An Atmospheric Generator with 715 W power, Haze output, Haze throw.
- Input voltageAC 100 V-120 V, 50/60 Hz or AC 220 V-240 V, 50/60 Hz
- Breaker typeBreaker
- Breaker8 A, 250 V
- Total power consumption715 W
- Power Input ConnectorLockable PowerCon
- Heat-up timeApprox. 8 min
- Heater TypeAluminum Heater Block
- Fluid tank capacity3 L
- Adjustable outputYes
- Volume Adjustment Level/Range1–100%
- Max output volumeHaze
- modeApprox. 24,000 cuft/min
- Max Output CoverageApprox.400 m² (5 min)
- Max output distanceHaze
- 1% Output Gas ConsumptionApprox. 0.3 kg/h
- 100% Output Gas ConsumptionApprox. 0.7 kg/h
- Maximum Continuous Duration @ full volumeUnlimited
- Continuous OutputYes
- Max continuous output level100%
- Consumable Type for Standard Output TestOnly Neutral PRO-GX and CO2 or N2
- Normal1% Output Approx. 2000min/L
- Super1% Output Approx. 909min/L
- 1% Output Appr. 0.3 kg/h
- 100% Output Appr. 0.7 kg/h

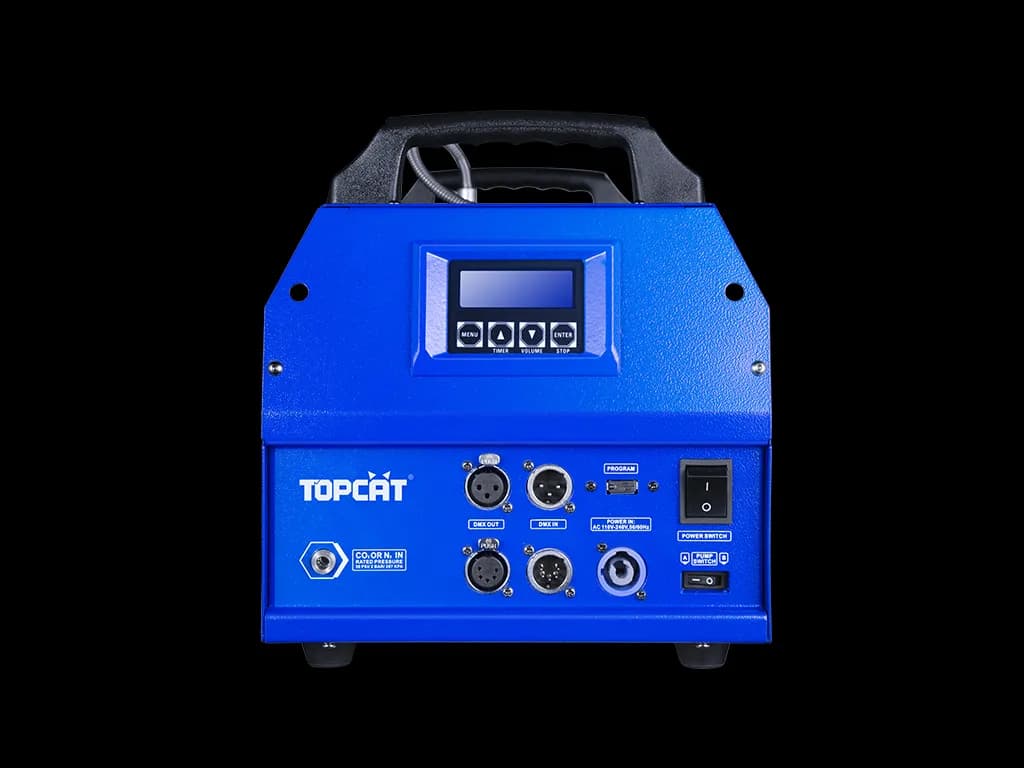

- On-device controlLCD control board
- Wireless controlNo
- Wired controlNo
- Control protocolDMX-512
- DMX channels4
- Data Connectors3- and 5-pin XLR
- Rdm ControlYes
- Flight CaseNo
- Power CordYes
- Wireless Controller ModelNo
- Wired Controller ModelNo
- ConsumableNeutral PRO-GX and CO2 or N2
- Net weight16.5 kg
- Gross weight20.8 kg
- Machine dimensions650 × 310 × 294 mm
- Packing dimensions800 × 450× 410 mm
Sample orders from 1 pieceStandard models ship in 15–30 days48-hour aging test1-year warrantyCE & RoHSOEM / ODM welcome
We reply within one business day (GMT+8). WhatsApp is the fastest channel.
Full Specifications
CAT-2 datasheet
| Model | CAT-2 |
| Input voltage | AC 100 V-120 V, 50/60 Hz or AC 220 V-240 V, 50/60 Hz |
| Breaker type | Breaker |
| Breaker | 8 A, 250 V |
| Total power consumption | 715 W |
| Heat-up time | Approx. 8 min |
| Heater Type | Aluminum Heater Block |
| Fluid tank capacity | 3 L |
| Adjustable output | Yes |
| Volume Adjustment Level/Range | 1–100% |
| Max output volume | Haze |
| mode | Approx. 24,000 cuft/min |
| Max Output Coverage | Approx.400 m² (5 min) |
| Max output distance | Haze |
| 1% Output Gas Consumption | Approx. 0.3 kg/h |
| 100% Output Gas Consumption | Approx. 0.7 kg/h |
| Maximum Continuous Duration @ full volume | Unlimited |
| Continuous Output | Yes |
| Max continuous output level | 100% |
| Consumable Type for Standard Output Test | Only Neutral PRO-GX and CO2 or N2 |
| Normal | 1% Output Approx. 2000min/L |
| Super | 1% Output Approx. 909min/L |
| 1% Output Appr. 0.3 kg/h | |
| 100% Output Appr. 0.7 kg/h | |
| Flight Case | No |
| Power Cord | Yes |
| Consumable | Neutral PRO-GX and CO2 or N2 |
| Machine dimensions | 650 × 310 × 294 mm |
| Power Input Connector | Lockable PowerCon |
| On-device control | LCD control board |
| Wireless control | No |
| Wired control | No |
| Control protocol | DMX-512 |
| DMX channels | 4 |
| Data Connectors | 3- and 5-pin XLR |
| Rdm Control | Yes |
| Wireless Controller Model | No |
| Wired Controller Model | No |
| Net weight | 16.5 kg |
| Gross weight | 20.8 kg |
| Packing dimensions | 800 × 450× 410 mm |
Compare with
Side-by-side specifications
Pick up to 3 models to compare against CAT-2. Full datasheets are one click away.
| Specification |  CAT-2This model |  H-K1Pro Auto Smoke Ring Machine |  H-1 PLUS2-in-1 Moving-Head Fog Jet |
|---|---|---|---|
| Type | — | Auto smoke ring machine | Moving head super-jet fog machine |
| Light source | — | RGB 3-in-1 LED ring | 24 × 5 W, RGBA |
| Control protocol | DMX-512 | DMX512, 3 channels | DMX-512, 10 channels |
| Input voltage | AC 100 V-120 V, 50/60 Hz or AC 220 V-240 V, 50/60 Hz | AC 220–240 V, 50/60 Hz | 220–240 V, 50/60 Hz |
See it in action
Product demo
Features
What the CAT-2 does on your stage
Automatic troubleshooting function
Automatic troubleshooting function.
Low maintenance
Automatic cleaning function.
Fluid system
Low fluid consumption.
Fluid system
Dual fluid supply system.
Applications & Downloads
Where it works
Accessorize the rig
In the box & often bought together
After-sales & warranty
Backed before and after the show
1-year warranty
Fixtures carry a 1-year warranty; per-model terms are stated in your quotation and order confirmation.
Spare modules stocked
We stock spare modules for all current models — ship them with future orders or separately by express.
Remote technical support
DMX mapping advice, programming help and repair guidance by video call, on WhatsApp or email.
48-hour aging test
Every unit passes a 48-hour aging test and full-function inspection before packing.
Full purchasing, OEM and after-sales answers in the FAQ.
Good to know
CAT-2 — quick answers
What voltage does the CAT-2 require?
The Atmospheric Generator accepts AC 100 V-120 V, 50/60 Hz or AC 220 V-240 V, 50/60 Hz. We build for export markets — tell us your target market in the inquiry and we confirm the matching power configuration before dispatch.
Can I order the CAT-2 with my own logo (OEM/ODM)?
Yes — logo, startup screen, nameplate and packaging are the most common OEM requests. Send your artwork and we confirm the mock-up before production.
How fast can I get a sample of the CAT-2?
Sample orders start from 1 piece. Standard models usually ship within 15–30 days depending on model and quantity, and every unit passes a 48-hour aging test before packing.
