MODEL RS-B300

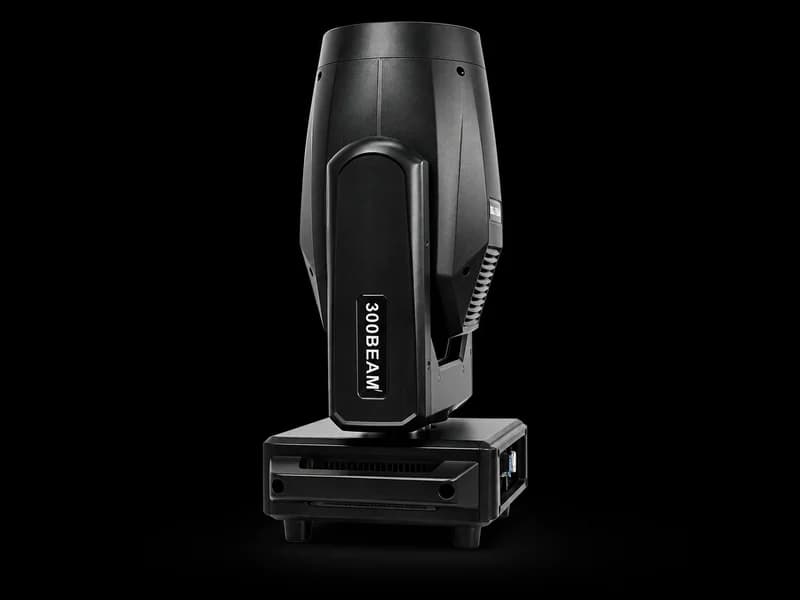

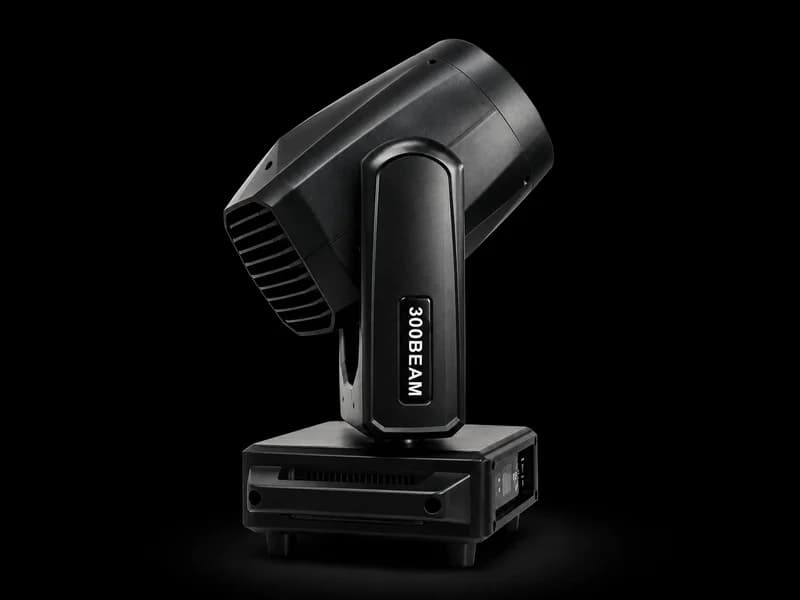

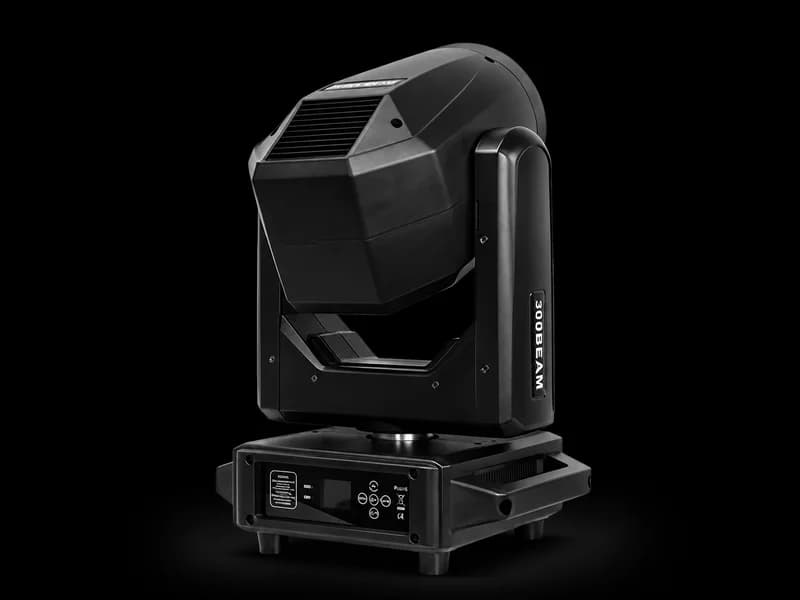

Beam 300 LED Moving Head
A 300 W LED beam moving head with 70,000 lm output for weddings, clubs and concert stages.
- TypeBeam moving head
- Light source300 W LED
- Color temp6000K
- CRI70 Ra
- Luminous flux70,000 lm
- LED life50,000 h
- DimmingSupported
- Control protocolDMX512
- Input voltageAC 110–240 V
- Housing materialAluminum + plastic
- RatingIP33
- MountingPole mount
- Plug typeUK / AU / EU / US
- Product weight11.8 kg
- Warranty1 year
- Operating temperature-20 °C to 40 °C
Sample orders from 1 pieceStandard models ship in 15–30 days48-hour aging test1-year warrantyCE & RoHSOEM / ODM welcome
We reply within one business day (GMT+8). WhatsApp is the fastest channel.
Full Specifications
RS-B300 datasheet
| Model | RS-B300 |
| Type | Beam moving head |
| Light source | 300 W LED |
| Color temp | 6000K |
| CRI | 70 Ra |
| Luminous flux | 70,000 lm |
| LED life | 50,000 h |
| Input voltage | AC 110–240 V |
| Plug type | UK / AU / EU / US |
| Warranty | 1 year |
| Dimming | Supported |
| Control protocol | DMX512 |
| Housing material | Aluminum + plastic |
| Rating | IP33 |
| Mounting | Pole mount |
| Product weight | 11.8 kg |
| Operating temperature | -20 °C to 40 °C |
Compare with
Side-by-side specifications
Pick up to 3 models to compare against RS-B300. Full datasheets are one click away.
| Specification |  RS-B300This model |  RS-BE19Mini 19×15W Bee Eye Wash Moving Head |  RS-SPMini RGB Spider Moving Head |
|---|---|---|---|
| Type | Beam moving head | Bee eye wash moving head | Mini spider moving head |
| Light source | 300 W LED | 19 × 15 W 4-in-1 RGBW LEDs | RGB LED |
| Color temp | 6000K | 6000K | 3500K (warm white) |
| CRI | 70 Ra | — | 90 Ra |
| Luminous flux | 70,000 lm | — | 100 lm |
| Dimming | Supported | Supported | Supported |
| Control protocol | DMX512 | DMX512, master-slave, auto, sound-activated | Sound-activated, auto |
| Input voltage | AC 110–240 V | AC 90–220 V | AC 110 V (±10%) |
| Rating | IP33 | IP33 | IP33 |
| Product weight | 11.8 kg | 7.5 kg | 3 kg |
| Warranty | 1 year | 1 year | 1 year |
See it in action
Product demo
Features
What the RS-B300 does on your stage
Sharp 300 W beam
A high-output LED beam with 70,000 lm keeps the throw tight, clean and readable across clubs and concert floors.
Show-ready control
DMX512 and onboard dimming lock the fixture into the rest of the rig.
Tour-stable chassis
An aluminum + plastic body with a thickened yoke and base holds steady for live bars and small venues.
Global install kit
Pole-mount hardware and UK / AU / EU / US plugs cover typical export venues.
Accessorize the rig
In the box & often bought together
What arrives with RS-B300
- Power cord (UK / AU / EU / US plugs)
- Export-grade carton with foam inserts
After-sales & warranty
Backed before and after the show
1-year warranty
Fixtures carry a 1-year warranty; per-model terms are stated in your quotation and order confirmation.
Spare modules stocked
We stock spare modules for all current models — ship them with future orders or separately by express.
Remote technical support
DMX mapping advice, programming help and repair guidance by video call, on WhatsApp or email.
48-hour aging test
Every unit passes a 48-hour aging test and full-function inspection before packing.
Full purchasing, OEM and after-sales answers in the FAQ.
Good to know
RS-B300 — quick answers
What voltage does the RS-B300 require?
The Beam 300 LED Moving Head accepts AC 110–240 V. We build for export markets — tell us your target market in the inquiry and we confirm the matching power configuration before dispatch.
Can I order the RS-B300 with my own logo (OEM/ODM)?
Yes — logo, startup screen, nameplate and packaging are the most common OEM requests. Send your artwork and we confirm the mock-up before production.
How fast can I get a sample of the RS-B300?
Sample orders start from 1 piece. Standard models usually ship within 15–30 days depending on model and quantity, and every unit passes a 48-hour aging test before packing.
